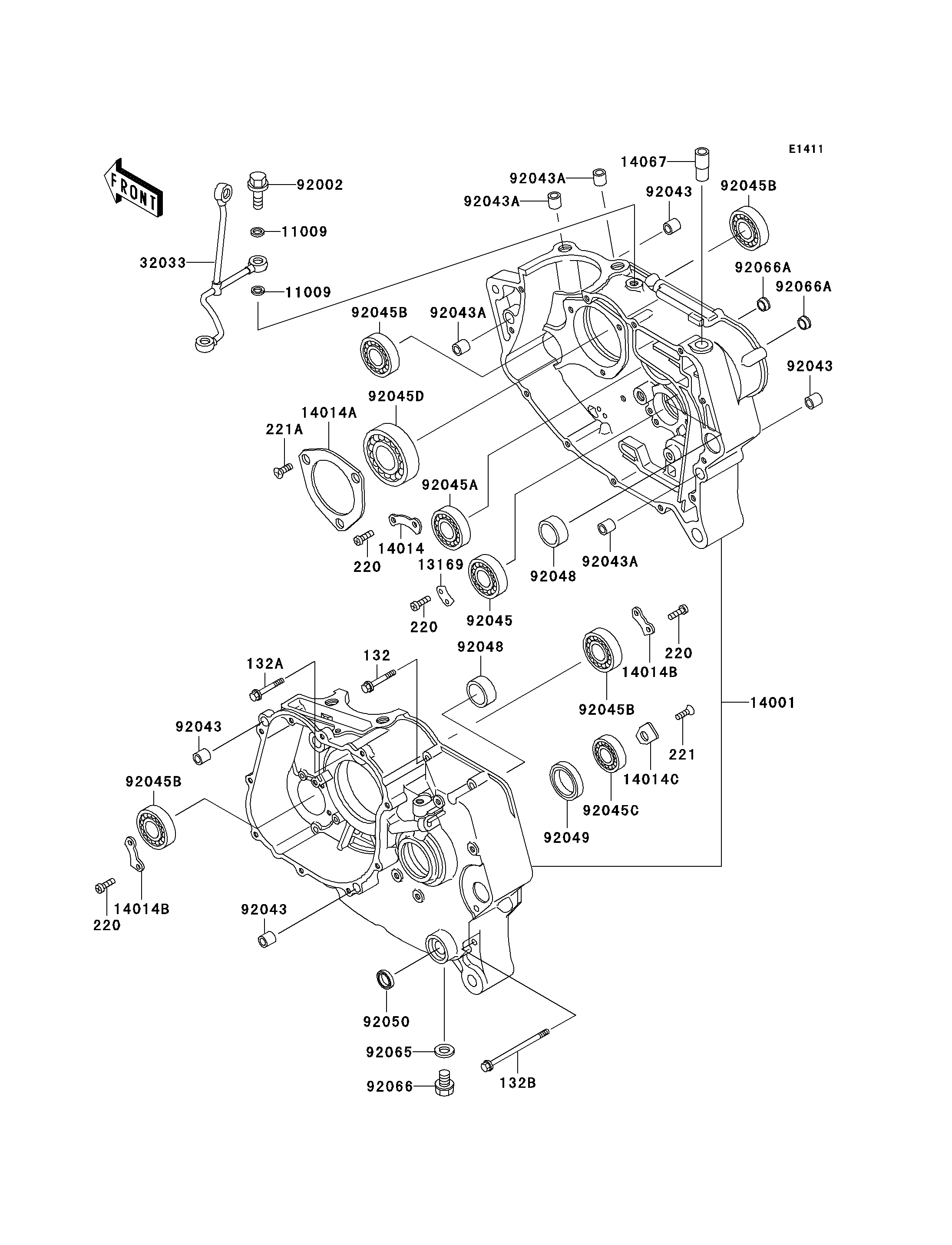

2004 KLR250 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
132
132A
132B
220
220
220
220
221
221A
11009
11009
13169
14001
14014
14014A
14014B
14014B
14014C
14067
32033
92002
92043
92043
92043
92043
92043A
92043A
92043A
92043A
92045
92045A
92045B
92045B
92045B
92045B
92045C
92045D
92048
92048
92049
92050
92065
92066
92066A
92066A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X40 132 132J0640 10
BOLT-FLANGED-SMALL 132A 132J0650 1
BOLT-FLANGED-SMALL 132B 132J0670 3
SCREW-PAN-CROS,6X12 220 220B0612 8
SCREW-CSK-CROS,6X12 221 221B0612 1
SCREW-CSK-CROS,6X16 221A 221B0616 3
GASKET,10X14.5X1.5 11009 11009-1105 4
PLATE,GEAR CHANGE DRUM 13169 13169-014 1
SET-CRANKCASE 14001 14001-5180 1
PLATE-POSITION,CHANGE DRUM 14014 14014-037 1
PLATE-POSITION,CRANK BEARING 14014A 14014-1004 1
PLATE-POSITION 14014B 14014-1014 2
PLATE-POSITION 14014C 14014-1057 1
FITTING,BREATHER 14067 14067-006 1
PIPE 32033 32033-1427 1
BOLT,BANJO,10X25 92002 92002-1170 2
PIN,6.2X8X14 92043 92043-1263 4
PIN,10.1X12X14 92043A 92043-4009 4
BEARING-BALL,#6905 92045 92045-036 1
BEARING-BALL,TMB204 JR 92045A 92045-1041 1
BEARING-BALL,6004TMB 92045B 92045-1118 4
BEARING-BALL,TM-SX0597LU 92045C 92045-1127 1
BEARING-BALL 92045D 92045-1172 1
RACE,26X33X13 92048 92048-1057 2
SEAL-OIL,TC32457 92049 92049-1159 1
SEAL-OIL 92050 92050-082 1
GASKET,12X22X2 92065 92065-097 1
PLUG,OIL DRAIN,12X15 92066 92066-1174 1
PLUG 92066A 92066-1282 2
