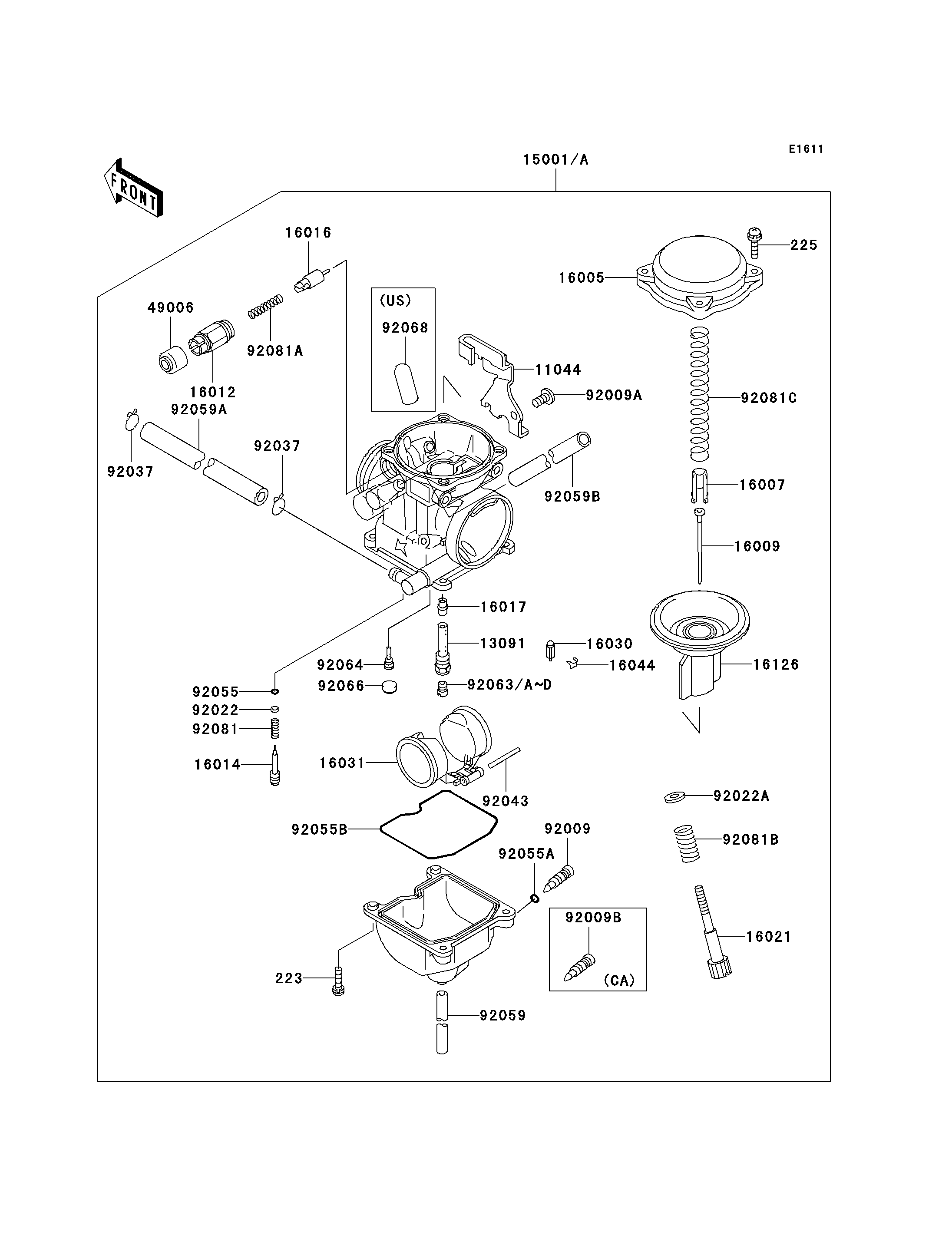

2004 KLR250 - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
11044
11044
13091
13091
16005
16005
16007
16007
16009
16009
16012
16012
16014
16014
16016
16016
16017
16017
16021
16021
16030
16030
16031
16031
16044
16044
16126
16126
49006
49006
92009
92009
92009A
92009A
92022
92022
92022A
92022A
92037
92037
92037
92037
92043
92043
92055
92055
92055A
92055A
92055B
92055B
92059
92059
92059A
92059A
92059B
92059B
92063
92063
92063A
92063A
92063B
92063B
92063C
92063C
92063D
92063D
223
223
225
225
92064
92064
92066
92066
92081
92081
92081A
92081A
92081B
92081B
92081C
92081C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,THROTTLE CABLE 11044 11044-1061 1
HOLDER,NEEDLE JET 13091 13091-1259 1
TOP-CHAMBER,MIXING,27/60 16005 16005-1057 1
SEAT-SPRING,VALVE 16007 16007-1117 1
NEEDLE-JET,N31C 16009 16009-1255 1
CAP-STARTER PLUNGER 16012 16012-1055 1
SCREW-PILOT AIR 16014 16014-1029 1
PLUNGER,STARTER 16016 16016-1065 1
JET-NEEDLE 16017 16017-1265 1
SCREW-THROTTLE STOP 16021 16021-1109 1
VALVE-FLOAT 16030 16030-1007 1
FLOAT 16031 16031-1056 1
CLAMP,FLOAT VALVE 16044 16044-007 1
VALVE,VACUUM 16126 16126-1163 1
BOOT,STARTER PLUNGER 49006 49006-1165 1
SCREW,DRAIN,M6X1.0 92009 92009-1095 1
SCREW,5X10 92009A 92009-1365 1
WASHER,PLAIN 92022 92022-1003 1
WASHER,THROTTLE STOP SCREW 92022A 92022-1587 1
CLAMP,TUBE 92037 92037-1531 2
PIN,FLOAT 92043 92043-1207 1
RING-O,PILOT ADJUST 92055 92055-1002 1
RING-O 92055A 92055-1053 1
RING-O,FLOAT CHAMBER 92055B 92055-1222 1
TUBE,3.5X6.5X330 92059 92059-111 1
TUBE,6.5X11.5X200 92059A 92059-1538 1
TUBE,6.5X9.5X410 92059B 92059-1539 1
JET-MAIN,#118 92063 92063-1071 1
JET-MAIN,#120 92063A 92063-1072 1 (OFF ROAD USE ONLY)
JET-MAIN,#122 92063B 92063-1073 1 (OFF ROAD USE ONLY)
JET-MAIN,#112 92063C 92063-1117 1 (OFF ROAD USE ONLY)
JET-MAIN,#115 92063D 92063-1118 1 (OFF ROAD USE ONLY)
SCREW-PAN-WS-CROS 223 223C0416 4
SCREW-PAN-WSP-CROS 225 225C0418 4
JET-PILOT,#35 92064 92064-1101 1
PLUG,PILOT AIR SCREW,6.9X2 92066 92066-1051 1
SPRING,PILOT ADJUST SCREW 92081 92081-1002 1
SPRING,PLUNGER 92081A 92081-1720 1
SPRING,THROTTLE STOP SCREW 92081B 92081-1721 1
SPRING,VACUUM VALVE 92081C 92081-1826 1
CARBURETOR-ASSY 15001 15001-1121 1 US
CARBURETOR-ASSY 15001A 15001-1122 1 CA
SCREW,DRAIN,M6X0.75 92009B 92009-1551 1 CA
PLUG,12X25 92068 92068-006 1 US
