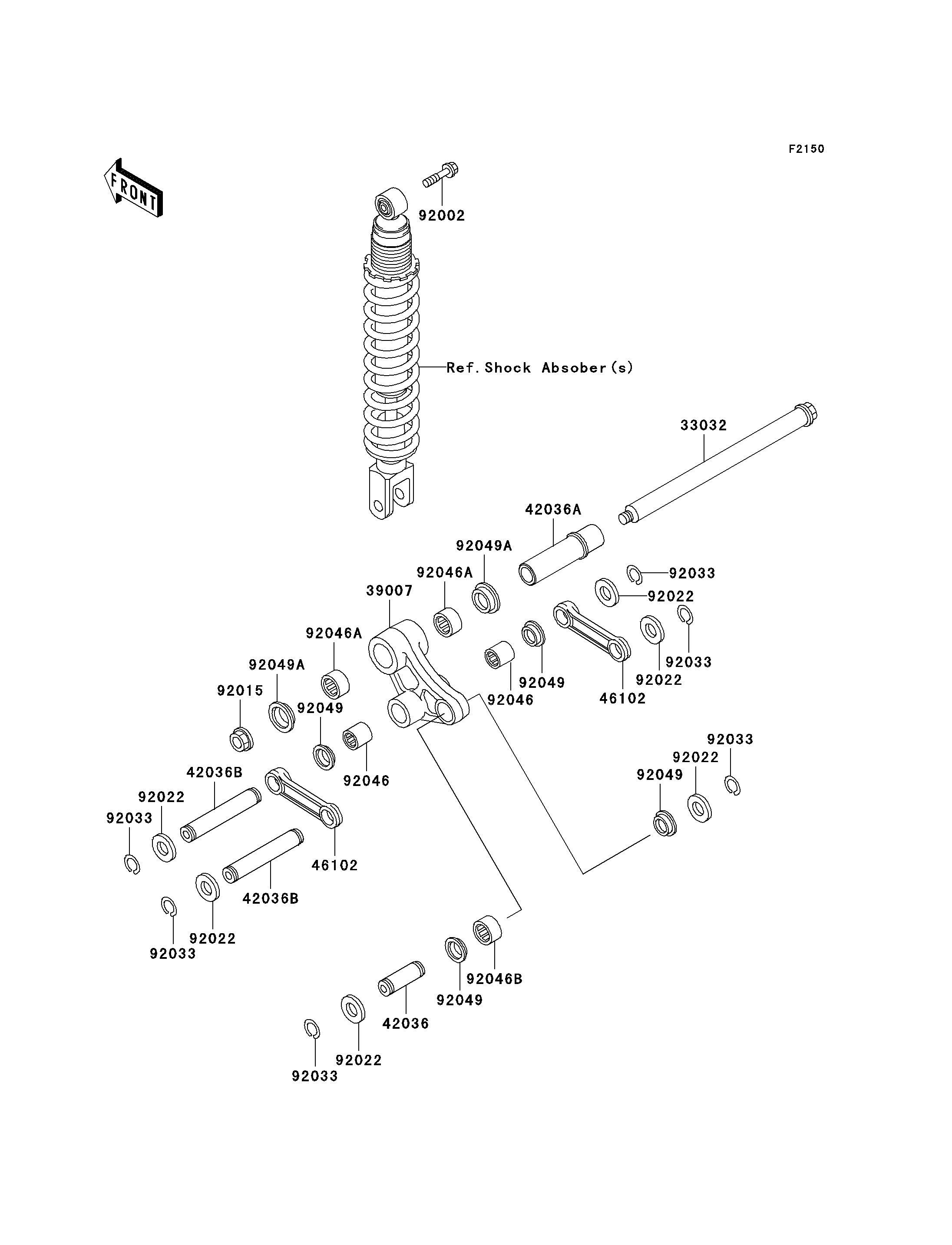

Parts Diagrams |
33032
39007
42036
42036A
42036B
42036B
46102
46102
92002
92015
92022
92022
92022
92022
92022
92022
92033
92033
92033
92033
92033
92033
92046
92046
92046A
92046A
92046B
92049
92049
92049
92049
92049A
92049A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SHAFT-SWING ARM | 33032 | 33032-1111 | 1 | ||
ARM-SUSP,UNI TRAK | 39007 | 39007-1059 | 1 | ||
SLEEVE,L=59 | 42036 | 42036-1133 | 1 | ||
SLEEVE,L=100 | 42036A | 42036-1136 | 1 | ||
SLEEVE,L=121 | 42036B | 42036-1140 | 2 | ||
ROD,UNI TRAK | 46102 | 46102-1129 | 2 | ||
BOLT,12X55 | 92002 | 92002-1130 | 1 | ||
NUT,14MM | 92015 | 92015-1459 | 1 | ||
WASHER,20.1X28X1 | 92022 | 92022-1547 | 6 | ||
RING-SNAP,18.3MM | 92033 | 92033-1168 | 6 | ||
BEARING-NEEDLE,BM202726 | 92046 | 92046-1110 | 2 | ||
BEARING-NEEDLE,BM2817 | 92046A | 92046-1111 | 2 | ||
BEARING-NEEDLE,BM202715 | 92046B | 92046-1112 | 1 | ||
SEAL-OIL,ARM | 92049 | 92049-1109 | 4 | ||
SEAL-OIL | 92049A | 92049-1181 | 2 |
