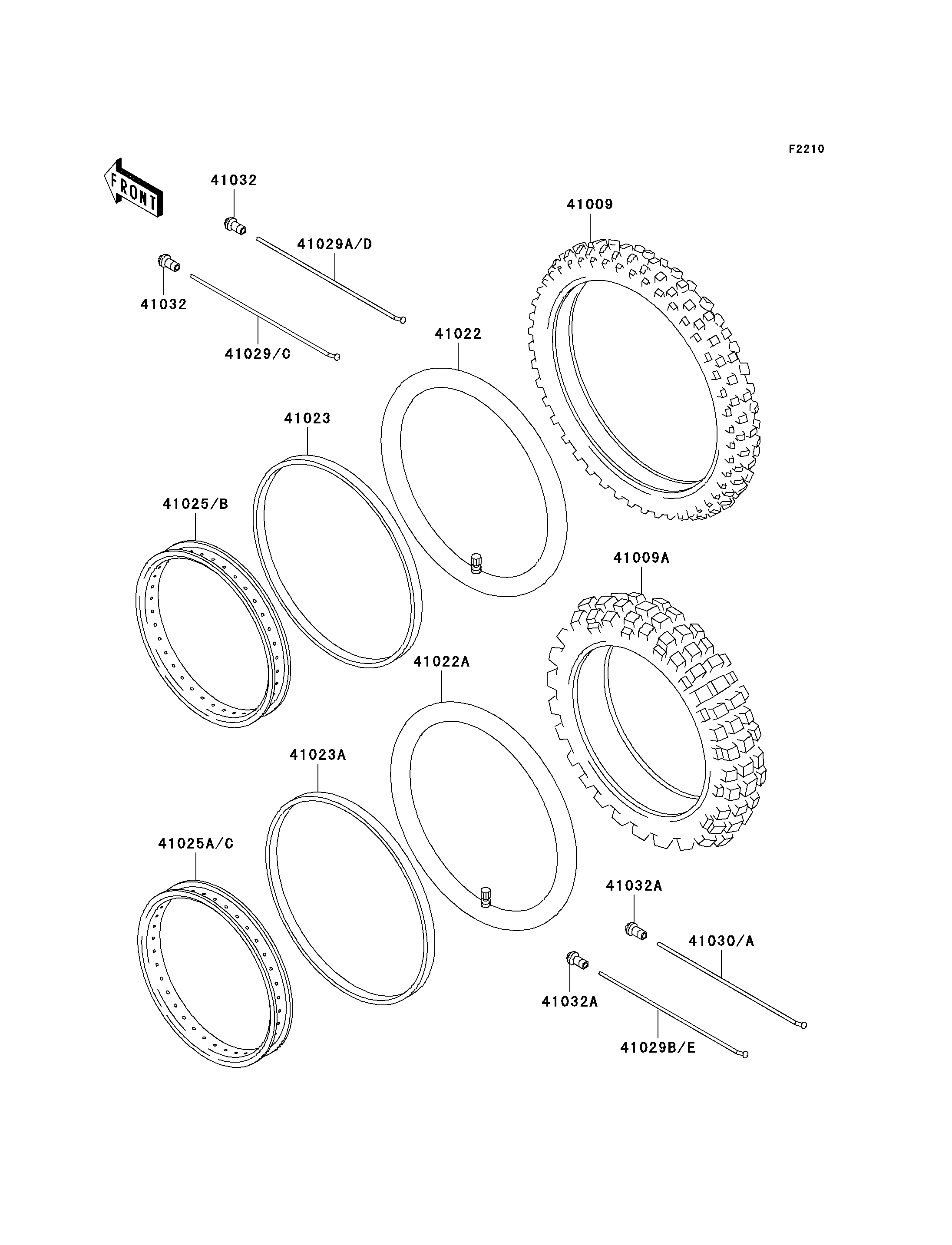

Parts Diagrams |
41009
41009A
41022
41022A
41023
41023A
41025B
41025C
41029C
41029D
41029E
41030A
41032
41032
41032A
41032A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TIRE,FR,3.00-21 4PR,K750A(D) | 41009 | 41009-1334 | 1 | ||
| TIRE,RR,4.60-17 4PR,K750A(D) | 41009A | 41009-1335 | 1 | ||
| TUBE-TIRE,2.75/3.00-21(DUNLOP) | 41022 | 41022-036 | 1 | ||
| TUBE-TIRE,4.00/5.10-17(D) | 41022A | 41022-1161 | 1 | ||
| BAND-RIM,80/100-21(D) | 41023 | 41023-1069 | 1 | ||
| BAND-RIM,4.00/5.10-17(D) | 41023A | 41023-1095 | 1 | ||
| RIM,FR,1.60X21 | 41025B | 41025-1112 | 1 | ||
| RIM,RR,2.15X17 | 41025C | 41025-1113 | 1 | ||
| SPOKE-INNER,FR,LH | 41029C | 41029-1118 | 18 | ||
| SPOKE-INNER,FR,RH | 41029D | 41029-1119 | 18 | ||
| SPOKE-INNER | 41029E | 41029-1129 | 18 | ||
| SPOKE-OUTER | 41030A | 41030-1104 | 18 | ||
| NIPPLE-SPOKE,8X10X20(+) | 41032 | 41032-1076 | 36 | ||
| NIPPLE-SPOKE | 41032A | 41032-1078 | 36 |
| TIRE,FR,3.00-21 4PR,K750A(D) | |
| REF # | 41009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TIRE,RR,4.60-17 4PR,K750A(D) | |
| REF # | 41009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-TIRE,2.75/3.00-21(DUNLOP) | |
| REF # | 41022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-TIRE,4.00/5.10-17(D) | |
| REF # | 41022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND-RIM,80/100-21(D) | |
| REF # | 41023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND-RIM,4.00/5.10-17(D) | |
| REF # | 41023A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM,FR,1.60X21 | |
| REF # | 41025B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM,RR,2.15X17 | |
| REF # | 41025C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPOKE-INNER,FR,LH | |
| REF # | 41029C |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| SPOKE-INNER,FR,RH | |
| REF # | 41029D |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| SPOKE-INNER | |
| REF # | 41029E |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| SPOKE-OUTER | |
| REF # | 41030A |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| NIPPLE-SPOKE,8X10X20(+) | |
| REF # | 41032 |
|---|---|
| PART NUMBER | |
| QUANTITY | 36 |
| DESTINATION | |
| REMARKS | |
| NIPPLE-SPOKE | |
| REF # | 41032A |
|---|---|
| PART NUMBER | |
| QUANTITY | 36 |
| DESTINATION | |
| REMARKS | |
