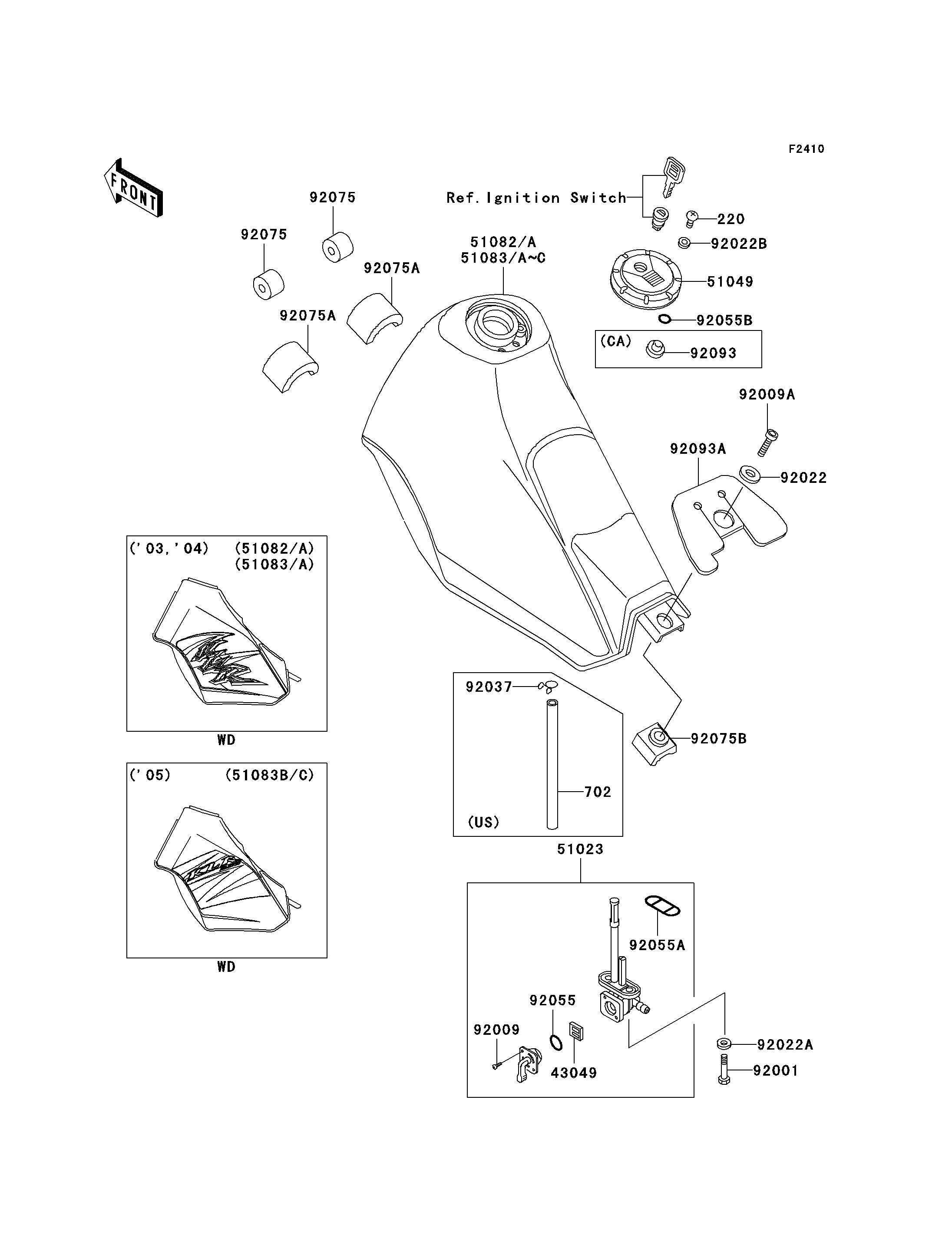

2004 KLR250 - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
220
43049
51023
51049
92001
92009
92009A
92022
92022A
92022B
92055
92055A
92055B
92075
92075
92075A
92075A
92075B
92093A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS 220 220D0510 2
PACKING,VALVE 43049 43049-1102 1
TAP-ASSY,FUEL 51023 51023-1346 1
CAP-TANK,FUEL 51049 51049-1134 1
BOLT,6X20 92001 92001-1091 2
SCREW,3X5 92009 92009-1123 2
SCREW,6X8 92009A 92009-1294 1
WASHER,6.2X38X1.2 92022 92022-1659 1
WASHER,6.2X11X1.5 92022A 92022-183 2
WASHER,5.1X10X1.0 92022B 92022-1977 2
RING-O,FUEL TAP LEVER 92055 92055-1111 1
RING-O,FUEL TAP PACKING 92055A 92055-1112 1
RING-O,ID=9 92055B 92055-1552 2
DAMPER,FUEL TANK 92075 92075-125 2
DAMPER,FUEL TANK 92075A 92075-1382 2
DAMPER,FUEL TANK 92075B 92075-1638 1
SEAL,FUEL TANK 92093A 92093-1182 1
TUBE-RUBBER,5X750 702 702A05750 1 US
TANK-COMP-FUEL,EBONY 51083 51083-5090-H8 1 US
TANK-COMP-FUEL,EBONY 51083A 51083-5091-H8 1 CA
CLAMP 92037 92037-1610 1 US
SEAL,FUEL TANK CAP 92093 92093-1030 1 CA
