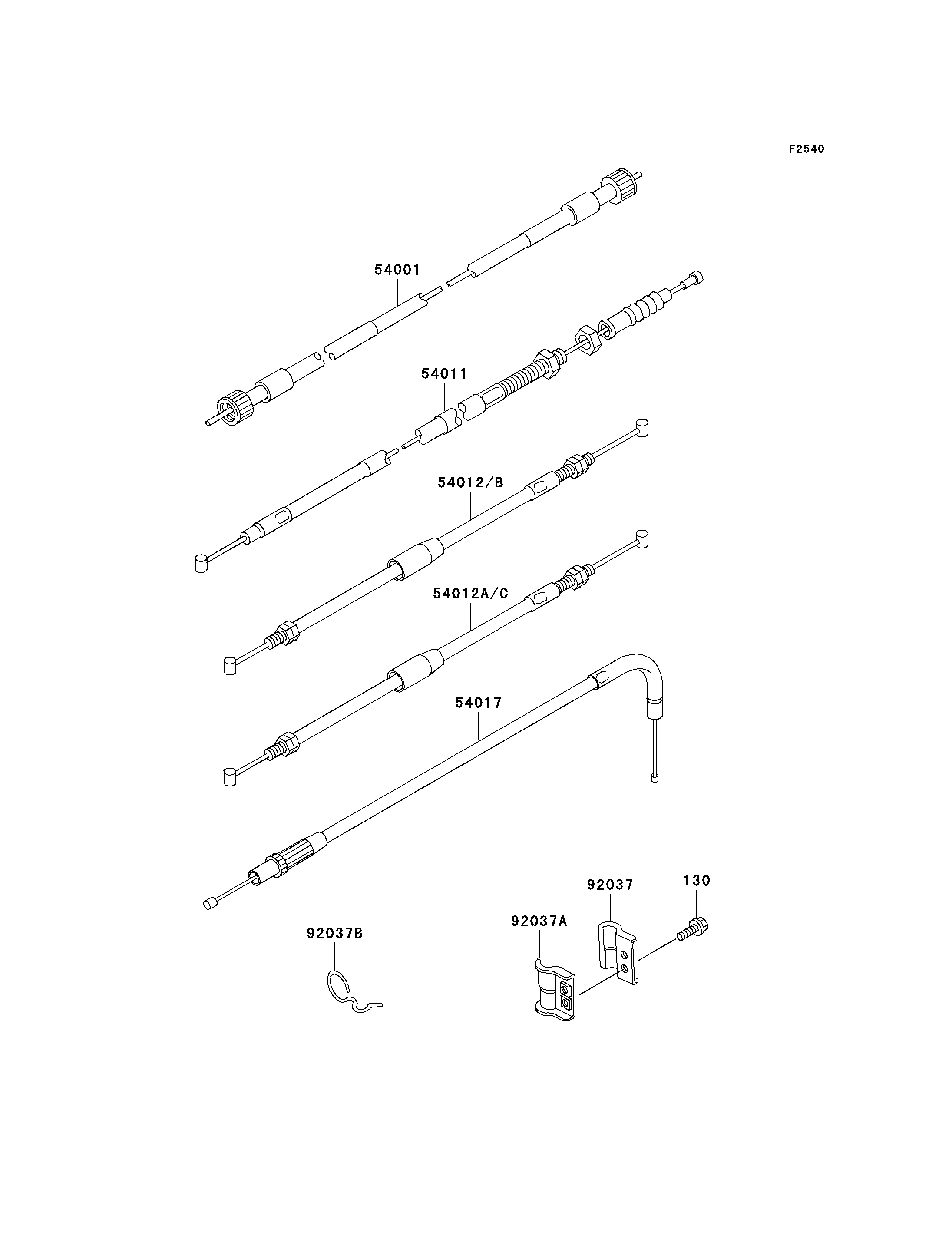

130
54001
54011
54012B
54012C
54017
92037
92037A
92037B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130J0514 2
CABLE-SPEEDOMETER 54001 54001-1112 1
CABLE-CLUTCH 54011 54011-1225 1
CABLE-THROTTLE,OPENING 54012B 54012-1238 1
CABLE-THROTTLE,CLOSING 54012C 54012-1239 1
CABLE-STARTER 54017 54017-1058 1
CLAMP,BRAKE HOSE,OUTSIDE 92037 92037-1331 1
CLAMP,BRAKE HOSE,INSIDE 92037A 92037-1332 1
CLAMP 92037B 92037-1521 1
