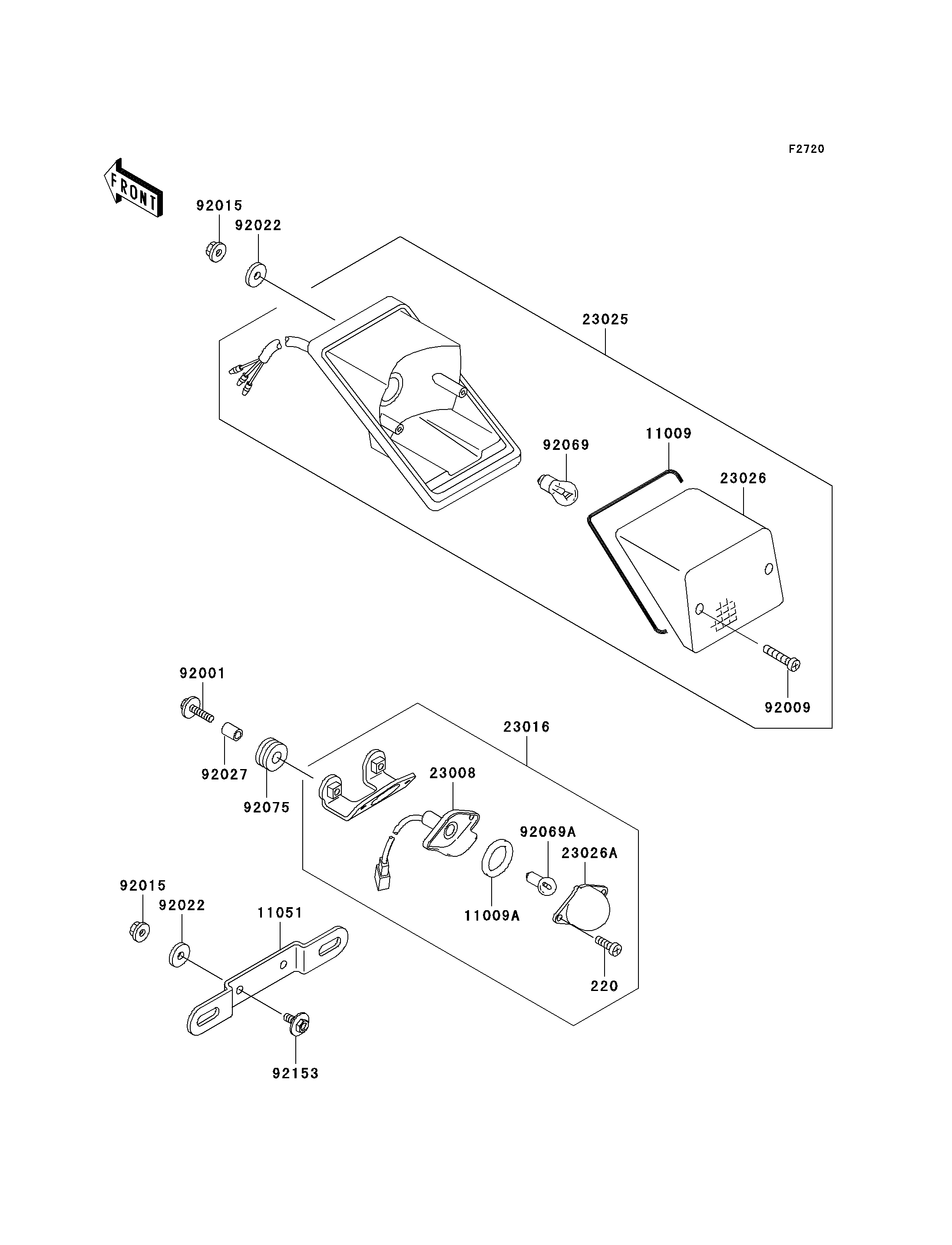

2004 KLR250 - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
220
11009
11009A
11051
23008
23016
23025
23026
23026A
92001
92009
92015
92015
92022
92022
92027
92069
92069A
92075
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS 220 220B0410 2
GASKET,TAIL LAMP 11009 11009-1371 1
GASKET,LICENSE PLATE LAMP 11009A 11009-1372 1
BRACKET,LICENSE PLATE 11051 11051-1522 1
SOCKET-ASSY,LICENSE PLATE LAMP 23008 23008-1205 1
LAMP-ASSY,LICENSE PLATE 23016 23016-1058 1
LAMP-TAIL 23025 23025-1314 1
LENS,TAIL LAMP 23026 23026-1053 1
LENS,LAMP 23026A 23026-1054 1
BOLT,6X22 92001 92001-1774 2
SCREW,TAPPING,4X20 92009 92009-1378 2
NUT,FLANGED,6MM 92015 92015-1367 4
WASHER,6.5X20X1.6 92022 92022-1557 4
COLLAR,6.8X10X10.5 92027 92027-120 2
BULB,12V 21/5W 92069 92069-063 1
BULB,12V 5W 92069A 92069-1055 1
DAMPER,CASE 92075 92075-222 2
BOLT,6X16 92153 92153-0684 2
