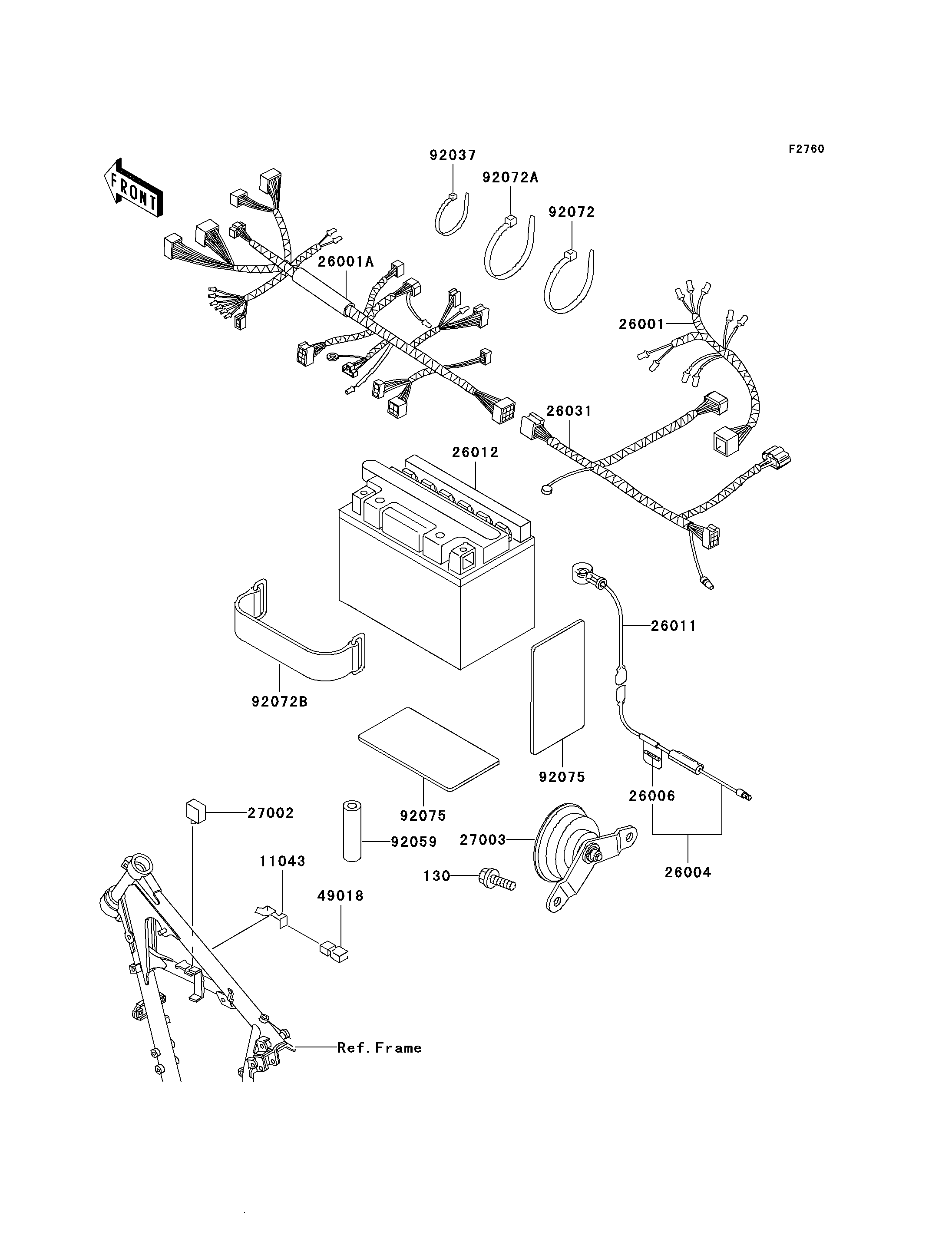

2004 KLR250 - Chassis Electrical Equipment
130
11043
26001
26001A
26004
26006
26011
26012
26031
27002
27003
49018
92037
92059
92072
92072A
92072B
92075
92075
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X14 | 130 | 130D0614 | 2 | ||
| BRACKET,DIODE | 11043 | 11043-1376 | 1 | ||
| HARNESS,RR | 26001 | 26001-1586 | 1 | ||
| HARNESS,FR(MAIN) | 26001A | 26001-1698 | 1 | ||
| FUSE-ASSY | 26004 | 26004-1055 | 1 | ||
| FUSE,20A,L=30 | 26006 | 26006-1056 | 1 | ||
| WIRE-LEAD,BATTERY | 26011 | 26011-1264 | 1 | ||
| BATTERY,FB4L-A,12V 4AH | 26012 | 26012-1363 | 1 | ||
| HARNESS,CNT | 26031 | 26031-1061 | 1 | ||
| RELAY-ASSY,TURN SIGNAL | 27002 | 27002-1053 | 1 | ||
| HORN | 27003 | 27003-1306 | 1 | ||
| DIODE | 49018 | 49018-1052 | 1 | ||
| CLAMP,BAND,L=120 | 92037 | 92037-1483 | 6 | ||
| TUBE,8X9X38 | 92059 | 92059-1799 | 1 | ||
| BAND,L=218 | 92072 | 92072-032 | 1 | ||
| BAND,L=186 | 92072A | 92072-056 | 2 | ||
| BAND | 92072B | 92072-1384 | 1 | ||
| DAMPER,MAT | 92075 | 92075-1582 | 2 |
| BOLT-FLANGED,6X14 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET,DIODE | |
| REF # | 11043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HARNESS,RR | |
| REF # | 26001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HARNESS,FR(MAIN) | |
| REF # | 26001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FUSE-ASSY | |
| REF # | 26004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FUSE,20A,L=30 | |
| REF # | 26006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRE-LEAD,BATTERY | |
| REF # | 26011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BATTERY,FB4L-A,12V 4AH | |
| REF # | 26012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HARNESS,CNT | |
| REF # | 26031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RELAY-ASSY,TURN SIGNAL | |
| REF # | 27002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HORN | |
| REF # | 27003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DIODE | |
| REF # | 49018 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,BAND,L=120 | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| TUBE,8X9X38 | |
| REF # | 92059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,L=218 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,L=186 | |
| REF # | 92072A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BAND | |
| REF # | 92072B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,MAT | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
