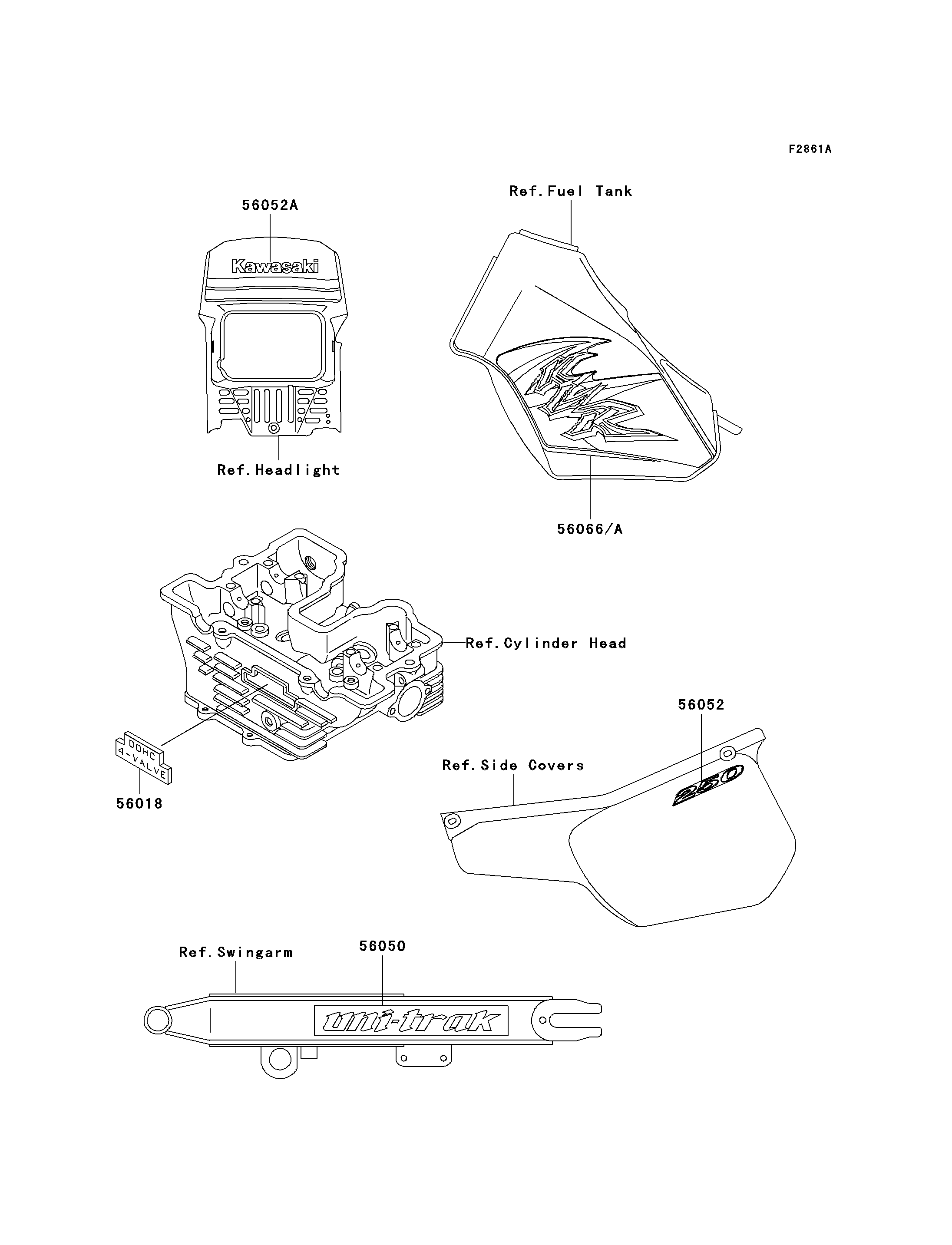

56018
56050
56052
56052A
56066
56066A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,CYLINDER HEAD 56018 56018-1483 1
MARK,SWING ARM 56050 56050-1151 2
MARK,SIDE COVER,250 56052 56052-0138 2
MARK,HEAD LAMP COVER,KAWASAKI 56052A 56052-1531 1
PATTERN,FUEL TANK,LH 56066 56066-0407 1
PATTERN,FUEL TANK,RH 56066A 56066-0408 1
