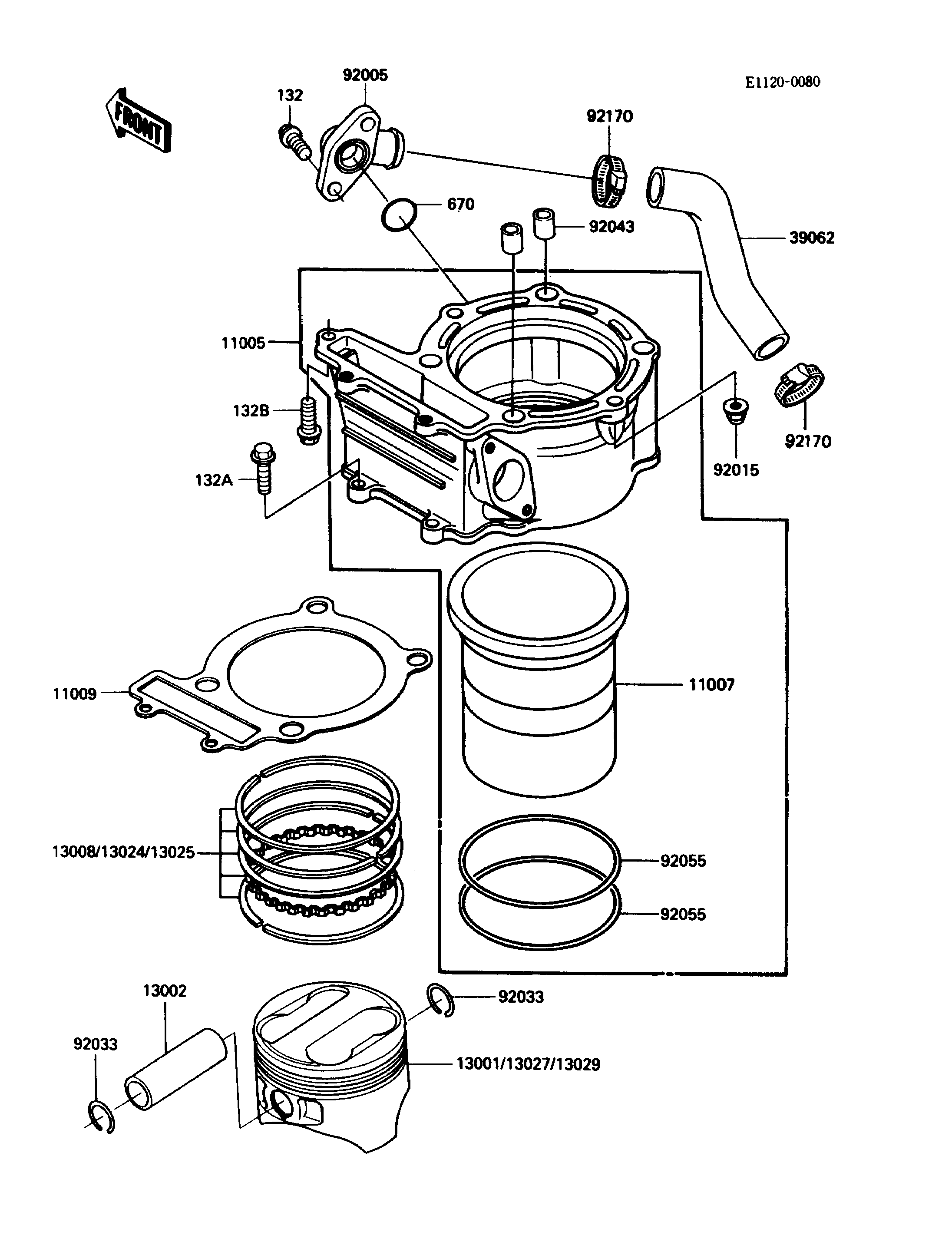

1988 KLR250 - Cylinder/Piston(s)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CYLINDER-ENGINE 11005 11005-1387 1
LINER-CYLINDER 11007 11007-1070 1
GASKET,CYLINDER BASE 11009 11009-1440 1
PISTON-ENGINE,STD 13001 13001-1280 1
PIN-PISTON,12X18X57.2 13002 13002-1023 1
RING-SET-PISTON,STD 13008 13008-1066 1
RING-SET-PISTON LL,O/S 1.00 13024 13024-1068 1
RING-SET-PISTON L,O/S 0.50 13025 13025-1065 1
PISTON-ENGINE LL,O/S 1.00 13027 13027-1152 1
PISTON-ENGINE L,O/S 0.50 13029 13029-1175 1
HOSE-COOLING 39062 39062-1082 1
FITTING 92005 92005-1122 1
NUT,CAP,8MM,BLACK 92015 92015-1174 2
RING-SNAP 92033 92033-1182 2
PIN,10.1X12X14 92043 92043-4009 2
RING-O 92055 92055-1247 2
CLAMP,COOLING HOSE 92170 92170-1033 2
BOLT-FLANGED-SMALL 132 132J0612 2
BOLT-FLANGED-SMALL 132A 132J0620 2
BOLT-FLANGED-SMALL 132B 132J0625 1
O RING,18MM 670 670B2018 1
