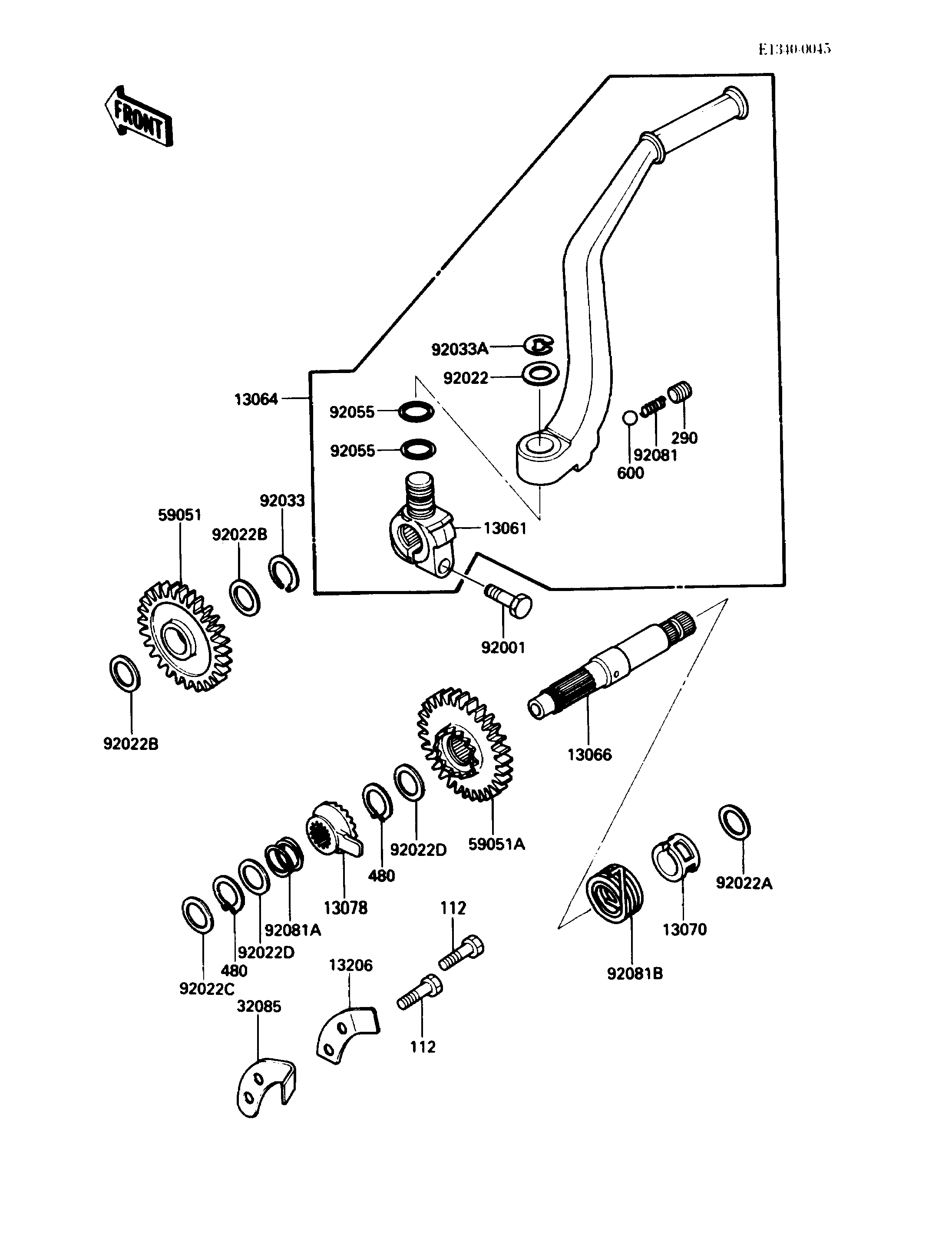

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOSS,KICK PEDAL | 13061 | 13061-1131 | 1 | ||
LEVER-ASSY-KICK,PEDAL | 13064 | 13064-1121 | 1 | ||
SHAFT-KICK | 13066 | 13066-1059 | 1 | ||
GUIDE,KICK SPRING | 13070 | 13070-011 | 1 | ||
RATCHET | 13078 | 13078-1052 | 1 | ||
GUIDE-KICK | 13206 | 13206-1054 | 1 | ||
STOPPER,KICKSTARTER | 32085 | 32085-1027 | 1 | ||
GEAR-SPUR,IDLE,28T | 59051 | 59051-1120 | 1 | ||
GEAR-SPUR,KICK,29T | 59051A | 59051-1131 | 1 | ||
BOLT,8X28 | 92001 | 92001-1042 | 1 | ||
WASHER,15.2X20X1 | 92022 | 92022-1019 | 1 | ||
WASHER,18.5X23X1.2 | 92022A | 92022-118 | 1 | ||
WASHER,17.3X25X0.5 | 92022B | 92022-1614 | 2 | ||
WASHER,12.3X20X0.5 | 92022C | 92022-269 | 1 | ||
WASHER,16.8X22X0.5 | 92022D | 92022-315 | 2 | ||
RING-SNAP | 92033 | 92033-032 | 1 | ||
RING-SNAP,10MM | 92033A | 92033-1166 | 1 | ||
RING-O,10X1.5 | 92055 | 92055-061 | 2 | ||
SPRING,KICK PEDAL | 92081 | 92081-020 | 1 | ||
SPRING,RATCHET | 92081A | 92081-122 | 1 | ||
SPRING,KICKSTARTER | 92081B | 92082-003 | 1 | ||
BOLT-UPSET | 112 | 112G0618 | 2 | ||
SCREW-SET-SOCKET,8X8 | 290 | 290Q0808 | 1 | ||
CIRCLIP-TYPE-C,16MM | 480 | 480J1600 | 2 | ||
BALL-STEEL,1/4" | 600 | 600A0800 | 1 |
BOSS,KICK PEDAL | |
REF # | 13061 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-ASSY-KICK,PEDAL | |
REF # | 13064 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-KICK | |
REF # | 13066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE,KICK SPRING | |
REF # | 13070 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RATCHET | |
REF # | 13078 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-KICK | |
REF # | 13206 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STOPPER,KICKSTARTER | |
REF # | 32085 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR-SPUR,IDLE,28T | |
REF # | 59051 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR-SPUR,KICK,29T | |
REF # | 59051A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,8X28 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,15.2X20X1 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,18.5X23X1.2 | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,17.3X25X0.5 | |
REF # | 92022B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,12.3X20X0.5 | |
REF # | 92022C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,16.8X22X0.5 | |
REF # | 92022D |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-SNAP | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP,10MM | |
REF # | 92033A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,10X1.5 | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING,KICK PEDAL | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,RATCHET | |
REF # | 92081A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,KICKSTARTER | |
REF # | 92081B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-UPSET | |
REF # | 112 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-SET-SOCKET,8X8 | |
REF # | 290 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CIRCLIP-TYPE-C,16MM | |
REF # | 480 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BALL-STEEL,1/4" | |
REF # | 600 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
