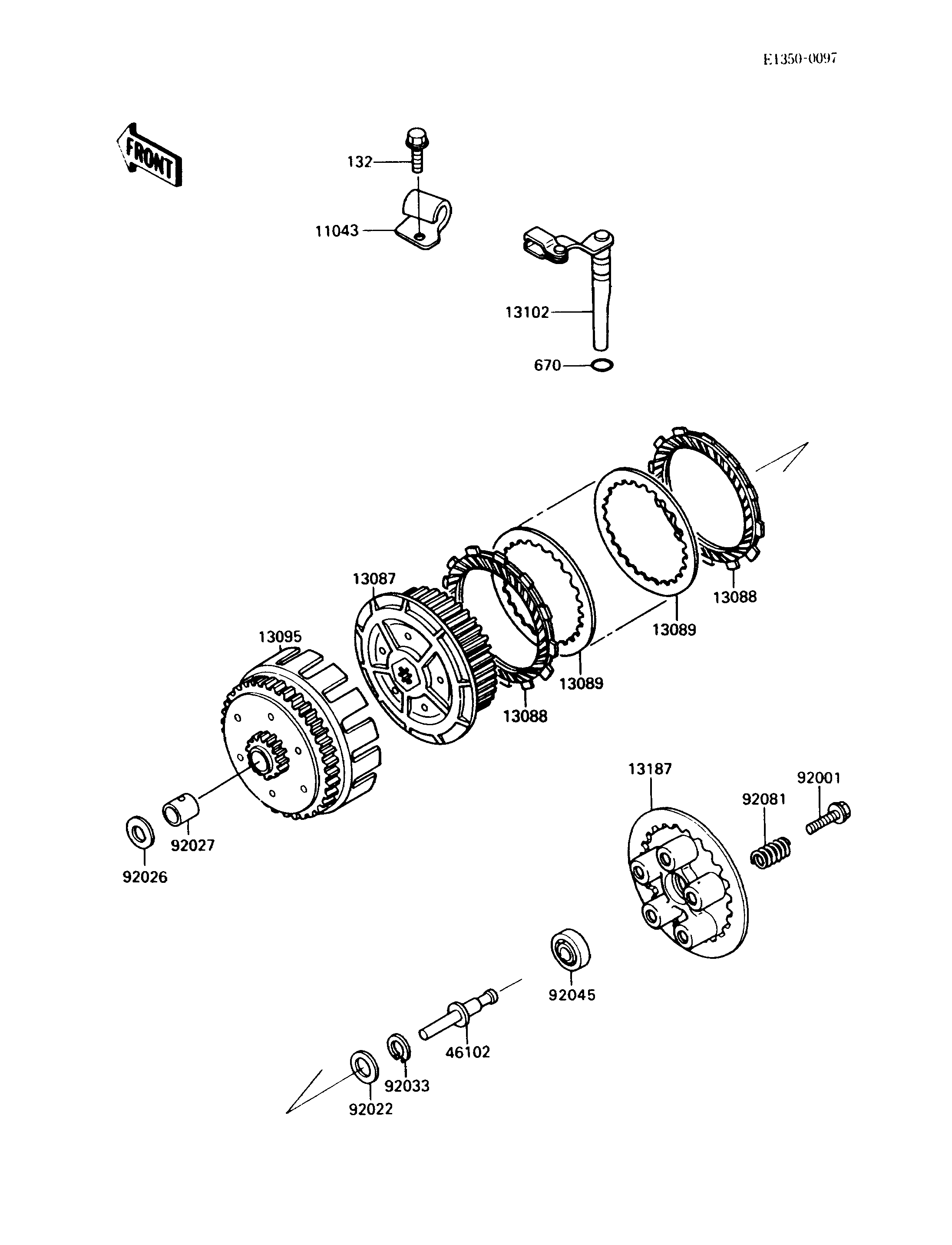

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,CLUTCH CABLE 11043 11043-1931 1
HUB-CLUTCH 13087 13087-1063 1
PLATE-FRICTION 13088 13088-1057 6
PLATE-CLUTCH,T=2.0 13089 13089-1073 5
HOUSING-COMP-CLUTCH 13095 13095-1126 1
RELEASE-COMP-CLUTCH 13102 13102-1064 1
PLATE-CLUTCH OPERATING 13187 13187-1059 1
ROD,CLUTCH PUSH 46102 46102-1033 1
BOLT,CLUTCH SPRING,6X18 92001 92001-1576 5
WASHER,20.5X30X1,STEEL 92022 92022-112 1
SPACER,20.1X34X4 92026 92026-1233 1
COLLAR,20X25X27 92027 92027-1808 1
RING-SNAP,18MM 92033 92033-029 1
BEARING-BALL,6001C3ML01 92045 92045-1235 1
SPRING,CLUTCH 92081 92081-083 5
BOLT-FLANGED-SMALL 132 132J0612 1
O RING,9MM 670 670B1509 1
