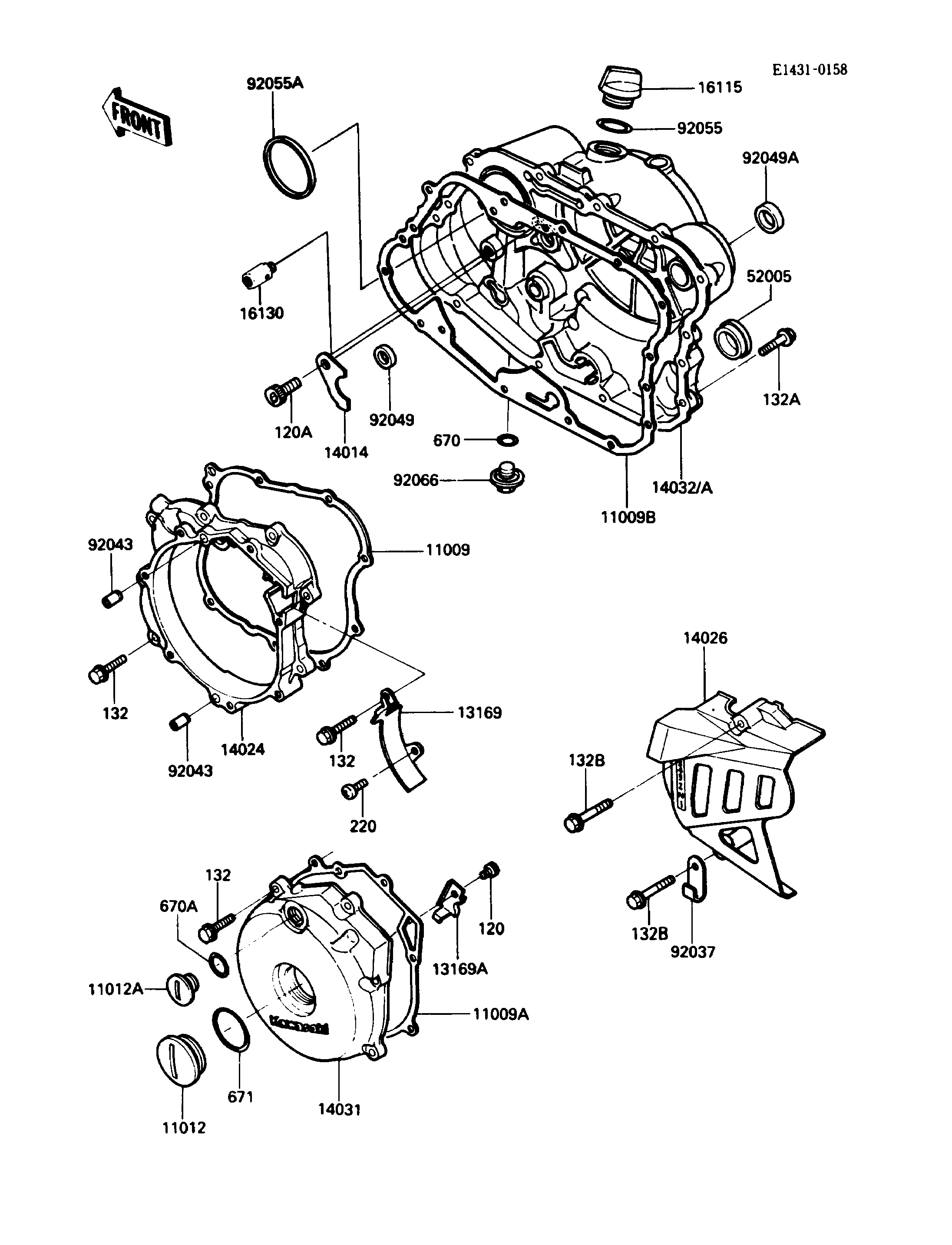

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,GENERATOR CASE COVER | 11009 | 11009-1435 | 1 | ||
GASKET,GENERATOR COVER | 11009A | 11009-1436 | 1 | ||
GASKET,CLUTCH COVER | 11009B | 11009-1437 | 1 | ||
CAP | 11012 | 11012-1362 | 1 | ||
CAP,TOP MARK | 11012A | 11012-1363 | 1 | ||
PLATE | 13169 | 13169-1879 | 1 | ||
PLATE,GENERATOR LEAD | 13169A | 13169-1880 | 1 | ||
PLATE-POSITION | 14014 | 14014-1062 | 1 | ||
COVER,GENERATOR CASE | 14024 | 14025-1911 | 1 | ||
COVER-CHAIN | 14026 | 14026-1112 | 1 | ||
COVER-GENERATOR | 14031 | 14031-1238 | 1 | ||
COVER-CLUTCH | 14032 | 14032-1277 | 1 | ||
COVER-CLUTCH | 14032A | 14032-1227 | 1 | ||
CAP-OIL FILLER | 16115 | 16115-1009 | 1 | ||
VALVE-ASSY-RELIEF | 16130 | 16130-1001 | 1 | ||
GAUGE,OIL LEVEL | 52005 | 52005-1009 | 1 | ||
CLAMP,WIRING HARNESS | 92037 | 92037-1069 | 1 | ||
PIN,6.2X8X14 | 92043 | 92043-1263 | 2 | ||
SEAL-OIL | 92049 | 92049-1191 | 1 | ||
SEAL-OIL | 92049A | 92050-078 | 1 | ||
RING-O,31.5X2.6 | 92055 | 92055-049 | 1 | ||
RING-O,62.6X66X3.1 | 92055A | 92055-1221 | 1 | ||
PLUG,DRAIN | 92066 | 92066-1156 | 1 | ||
BOLT-SOCKET | 120 | 120P0608 | 1 | ||
BOLT-SOCKET,6X10 | 120A | 120P0610 | 1 | ||
BOLT-FLANGED-SMALL | 132 | 132J0625 | 16 | ||
BOLT-FLANGED-SMALL | 132A | 132J0630 | 13 | ||
BOLT-FLANGED-SMALL | 132B | 132J0645 | 2 | ||
SCREW-PAN-CROS,6X8 | 220 | 220B0608 | 1 | ||
O RING,11MM | 670 | 670B2011 | 1 | ||
O RING,18MM | 670A | 670B2018 | 1 | ||
O RING,40MM | 671 | 671B2540 | 1 |
