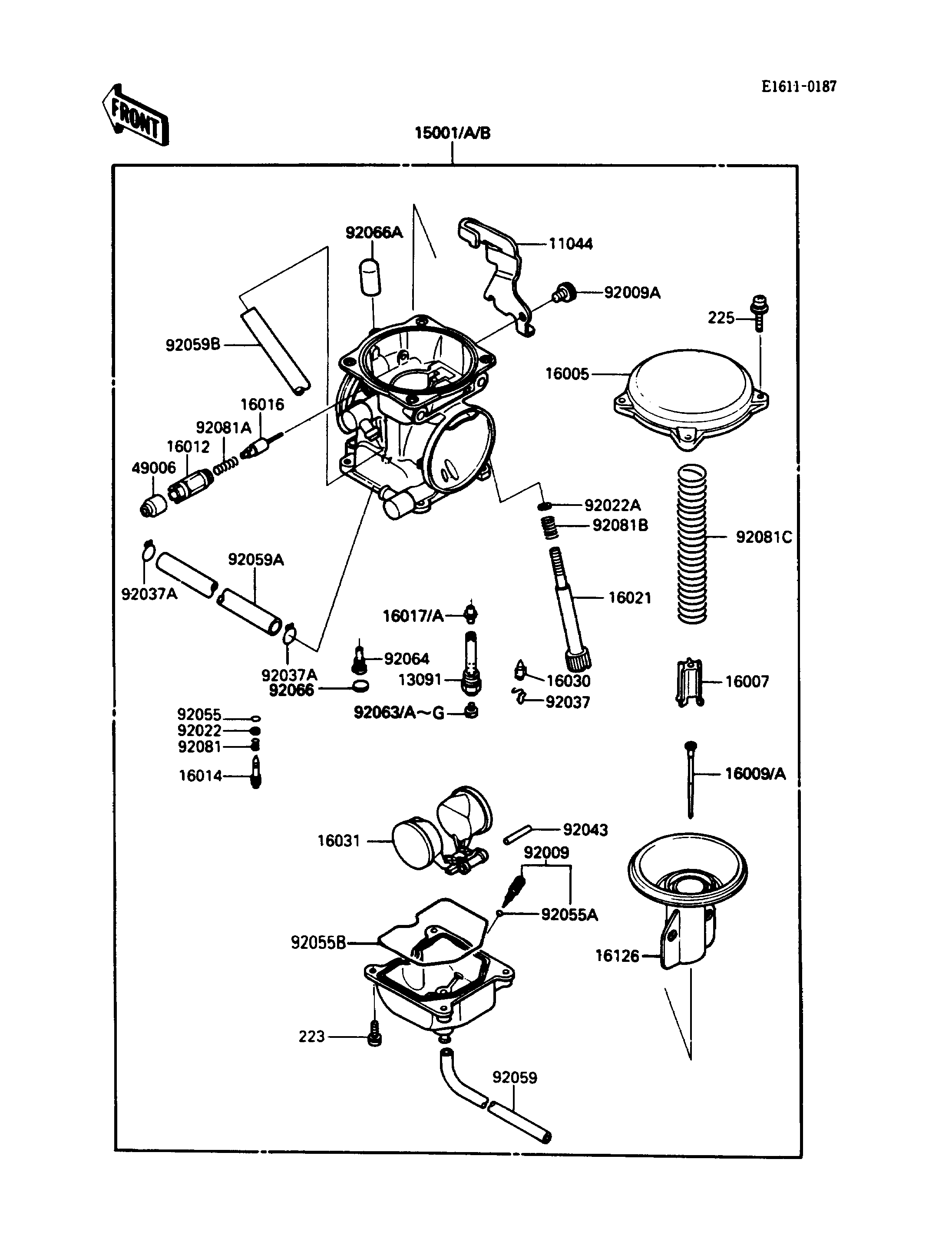

1988 KLR250 - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,THROTTLE CABLE 11044 11044-1061 1
HOLDER,NEEDLE JET 13091 13091-1259 1
CARBURETOR-ASSY 15001 15001-1099 1 CN
CARBURETOR-ASSY 15001A 15001-1121 1 US
CARBURETOR-ASSY 15001B 15001-1122 1 CA
TOP-CHAMBER,MIXING,27/60 16005 16005-1057 1
SEAT-SPRING,VALVE 16007 16007-1117 1
NEEDLE-JET,N31A 16009 16009-1253 1 CN
NEEDLE-JET,N31C 16009A 16009-1255 1 CAUS
CAP-STARTER PLUNGER 16012 16012-1055 1
SCREW-PILOT AIR 16014 16014-1029 1
PLUNGER,STARTER 16016 16016-1065 1
JET-NEEDLE 16017 16017-1265 1 CAUS
JET-NEEDLE,#6 16017A 16017-1266 1 CN
SCREW-THROTTLE STOP 16021 16021-1109 1
VALVE-FLOAT 16030 16030-1007 1
FLOAT 16031 16031-1056 1
VALVE,VACUUM 16126 16126-1163 1
BOOT,STARTER PLUNGER 49006 49006-1165 1
SCREW,DRAIN,M6X1.0 92009 92009-1095 1
SCREW,5X10 92009A 92009-1365 1
WASHER,PLAIN 92022 92022-1003 1
WASHER,THROTTLE STOP SCREW 92022A 92022-1587 1
CLAMP,FLOAT VALVE 92037 16044-007 1
CLAMP,TUBE 92037A 92037-1531 2
PIN,FLOAT 92043 92043-1207 1
RING-O,PILOT ADJUST 92055 92055-1002 1
RING-O,DRAIN SCREW 92055A 92055-1053 1
RING-O,FLOAT CHAMBER 92055B 92055-1222 1
TUBE,3.5X6.5X330 92059 92059-111 1
TUBE,6.5X11.5X200 92059A 92059-1538 1
TUBE,6.5X9.5X410 92059B 92059-1539 1
JET-MAIN,2ND,#125 92063 92063-1069 1 CN
JET-MAIN,#118 92063A 92063-1071 1 CAUS (OFF ROAD USE ONLY)
JET-MAIN,#118 92063B 92063-1071 1 CN
JET-MAIN,#120 92063C 92063-1072 1 CN (OFF ROAD USE ONLY)
JET-MAIN,#120 92063D 92063-1072 1 CAUS
JET-MAIN,2ND,#122 92063E 92063-1073 1 (OFF ROAD USE ONLY)
JET-MAIN,#112 92063F 92063-1117 1 CAUS
JET-MAIN,#115 92063G 92063-1118 1 (OFF ROAD USE ONLY)
JET-PILOT,#35 92064 92064-1101 1
PLUG,PILOT AIR SCREW,6.9X2 92066 92066-1051 1 CAUS
PLUG,12X25 92066A 92068-006 1 CNUS
SPRING,PILOT ADJUST SCREW 92081 92081-1002 1
SPRING,PLUNGER 92081A 92081-1720 1
SPRING,THROTTLE STOP SCREW 92081B 92081-1721 1
SPRING,VACUUM VALVE 92081C 92081-1826 1
SCREW-PAN-WS-CROS 223 223C0416 4
SCREW-PAN-WSP-CROS 225 225C0418 4
