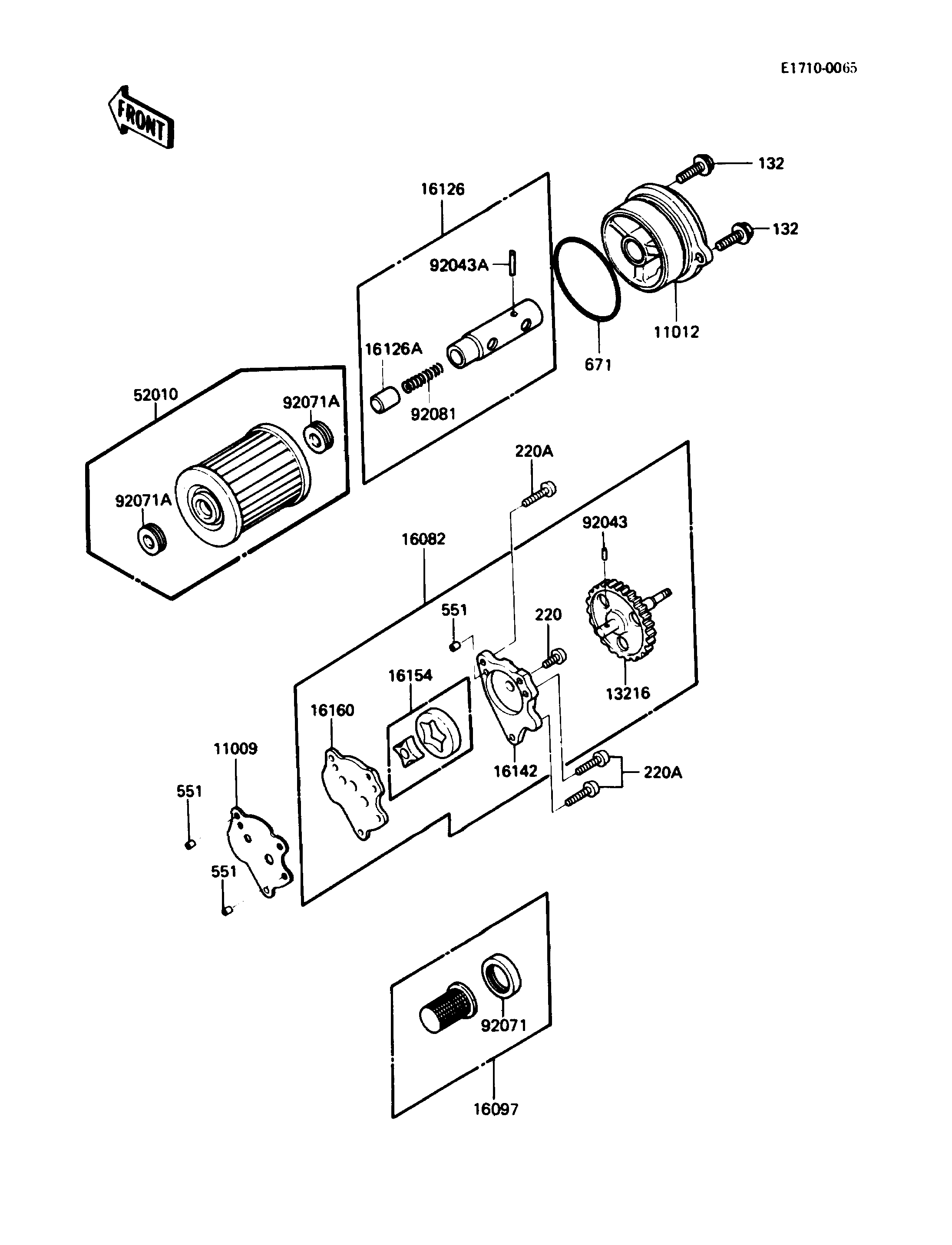

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,OIL PUMP | 11009 | 11009-1438 | 1 | ||
CAP,OIL FILTER | 11012 | 11012-1538 | 1 | ||
GEAR-COMP,OIL PUMP | 13216 | 13216-1092 | 1 | ||
PUMP-ASSY-OIL | 16082 | 16082-1080 | 1 | ||
FILTER-ASSY-OIL | 16097 | 16097-1001 | 1 | ||
PISTON-ASSY,VALVE,BY-PASS | 16126 | 16156-002 | 1 | ||
VALVE | 16126A | 92136-002 | 1 | ||
COVER-PUMP | 16142 | 16142-1056 | 1 | ||
ROTOR-PUMP | 16154 | 16154-1008 | 1 | ||
BODY,OIL PUMP | 16160 | 16160-1069 | 1 | ||
ELEMENT-OIL FILTER | 52010 | 16099-004 | 1 | ||
PIN,DOWEL,4X12.8 | 92043 | 92042-041 | 1 | ||
PIN,SPRING,2.2X13.5 | 92043A | 92043-123 | 1 | ||
GROMMET,OIL STRAINER | 92071 | 92071-100 | 1 | ||
GROMMET,OIL FILTER | 92071A | 92071-101 | 2 | ||
SPRING,PISTON | 92081 | 92081-043 | 1 | ||
BOLT-FLANGED-SMALL | 132 | 132J0620 | 2 | ||
SCREW-PAN-CROS,6X14 | 220 | 220B0614 | 1 | ||
SCREW-PAN-CROS,6X25 | 220A | 220B0625 | 3 | ||
PIN-DOWEL,6X8 | 551 | 551A0608 | 3 | ||
O RING,55MM | 671 | 671B2555 | 1 |
