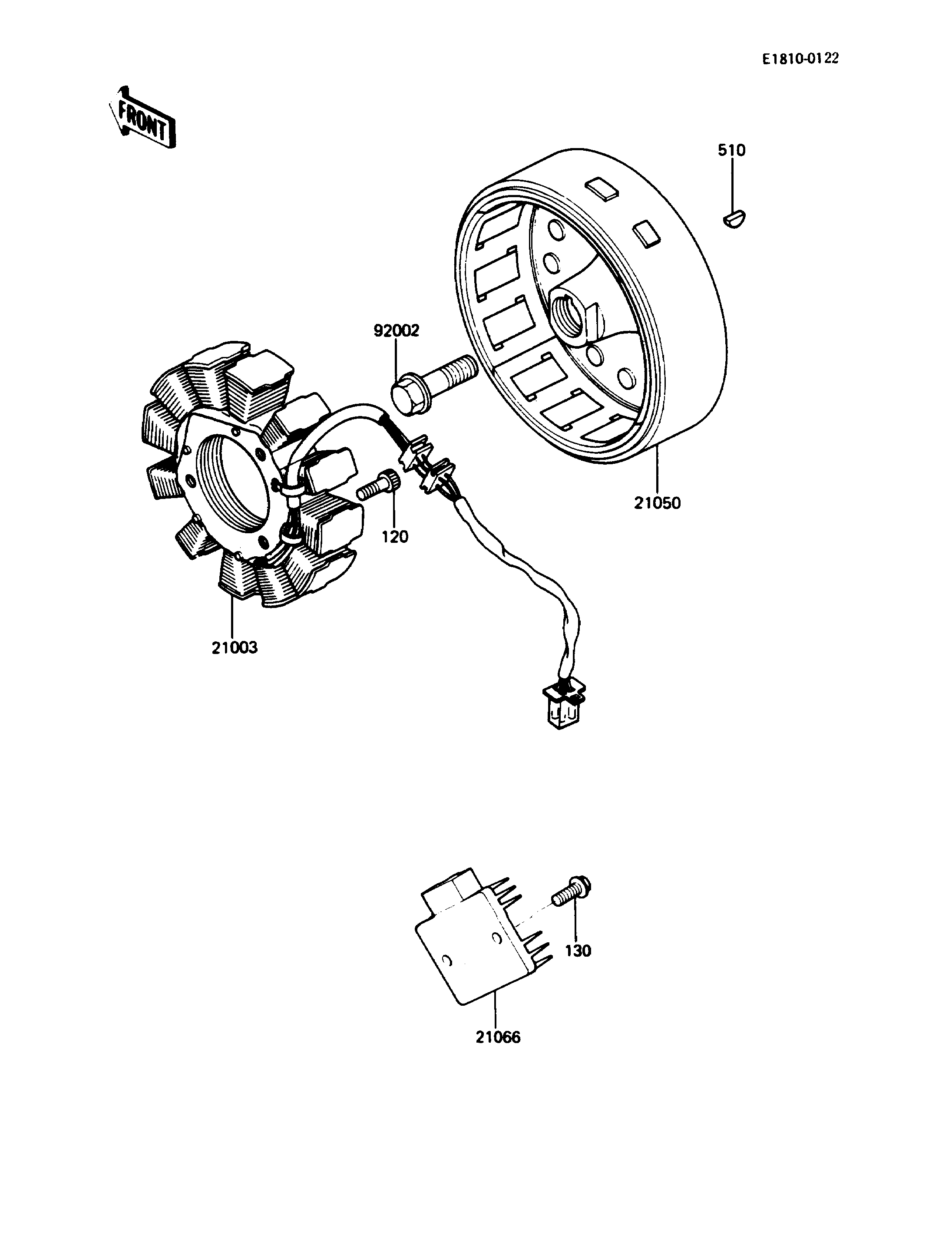

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STATOR 21003 21003-1121 1
FLYWHEEL 21050 21050-1109 1
REGULATOR-VOLTAGE 21066 21066-1052 1
BOLT,FLANGED,12X40 92002 92002-1693 1
BOLT-SOCKET,6X30 120 120P0630 3
BOLT-FLANGED,6X16 130 130G0616 1
KEY-WOODRUFF 510 510A3300 1
