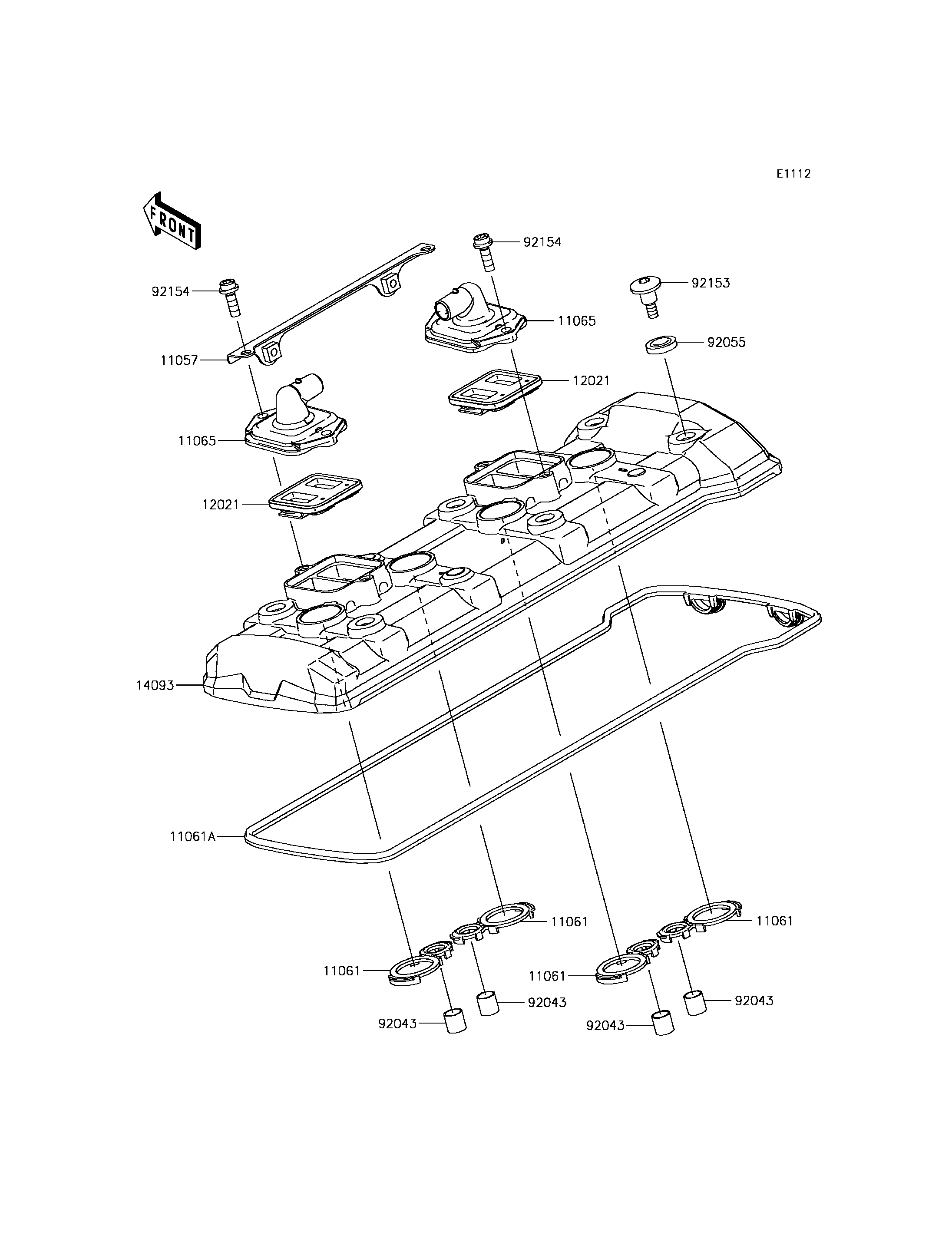

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11057
11061
11061
11061
11061
11061A
11065
11065
12021
12021
14093
92043
92043
92043
92043
92055
92153
92154
92154
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,HEAT COVER | 11057 | 11057-0299 | 1 | ||
GASKET,SPARK PLUG | 11061 | 11061-1213 | 4 | ||
GASKET,HEAD | 11061A | 11061-1214 | 1 | ||
CAP,HEAD COVER | 11065 | 11065-0328 | 2 | ||
VALVE-ASSY-REED | 12021 | 12021-0016 | 2 | ||
COVER,HEAD | 14093 | 14093-0521 | 1 | ||
PIN,10.1X12X14 | 92043 | 92043-4009 | 4 | ||
RING-O | 92055 | 92055-0785 | 6 | ||
BOLT,SOCKET,6X22.5 | 92153 | 92153-1779 | 6 | ||
BOLT,SOCKET,6X18 | 92154 | 92154-0351 | 4 |
