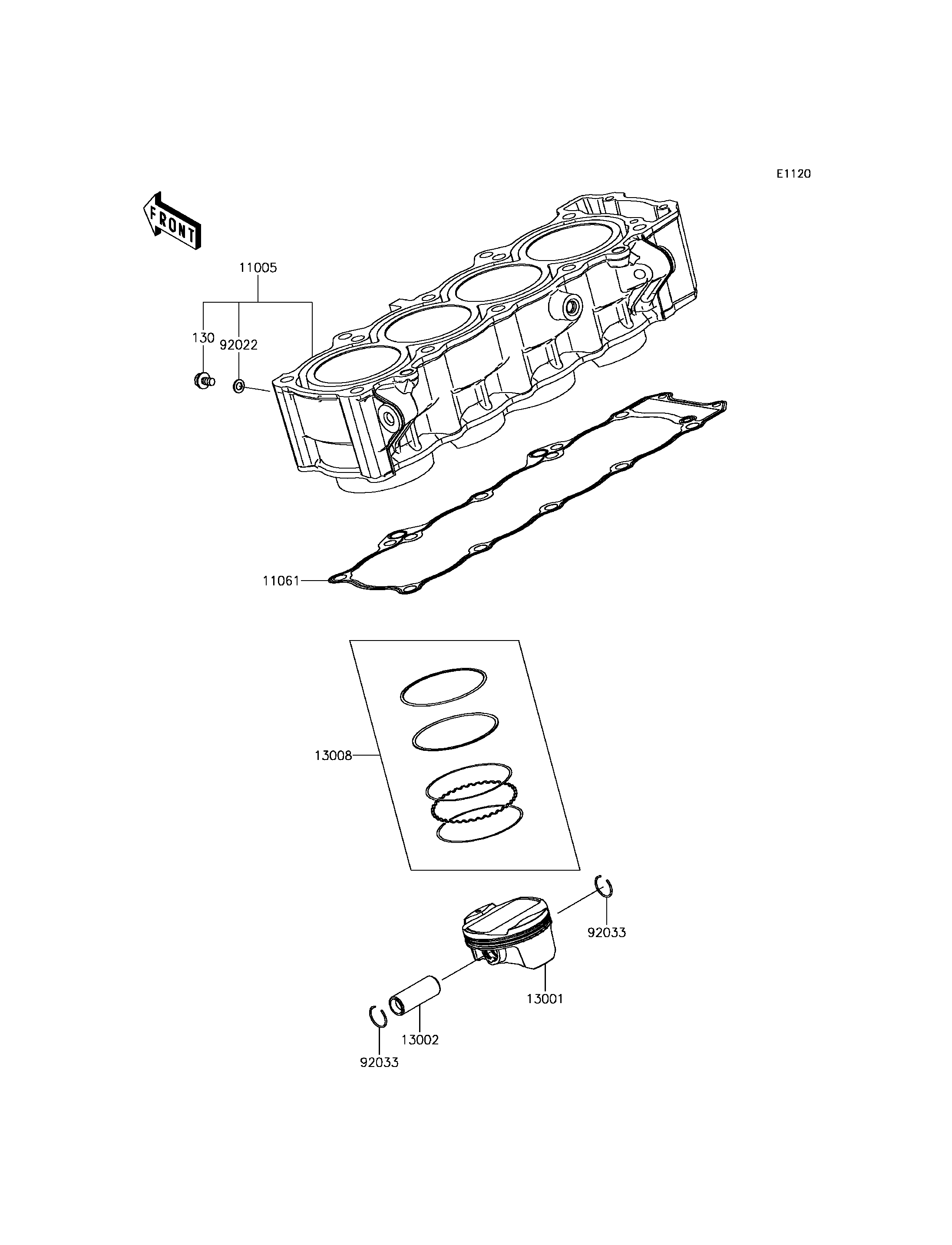

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130BD0610 1
CYLINDER-ENGINE 11005 11005-0672 1
GASKET,CYLINDER BASE 11061 11061-0402 1
PISTON-ENGINE 13001 13001-0788 4
PIN-PISTON 13002 13002-0004 4
RING-SET-PISTON 13008 13008-0571 4
WASHER,6.2X11X1 92022 92022-304 1
RING-SNAP 92033 92033-1054 8
