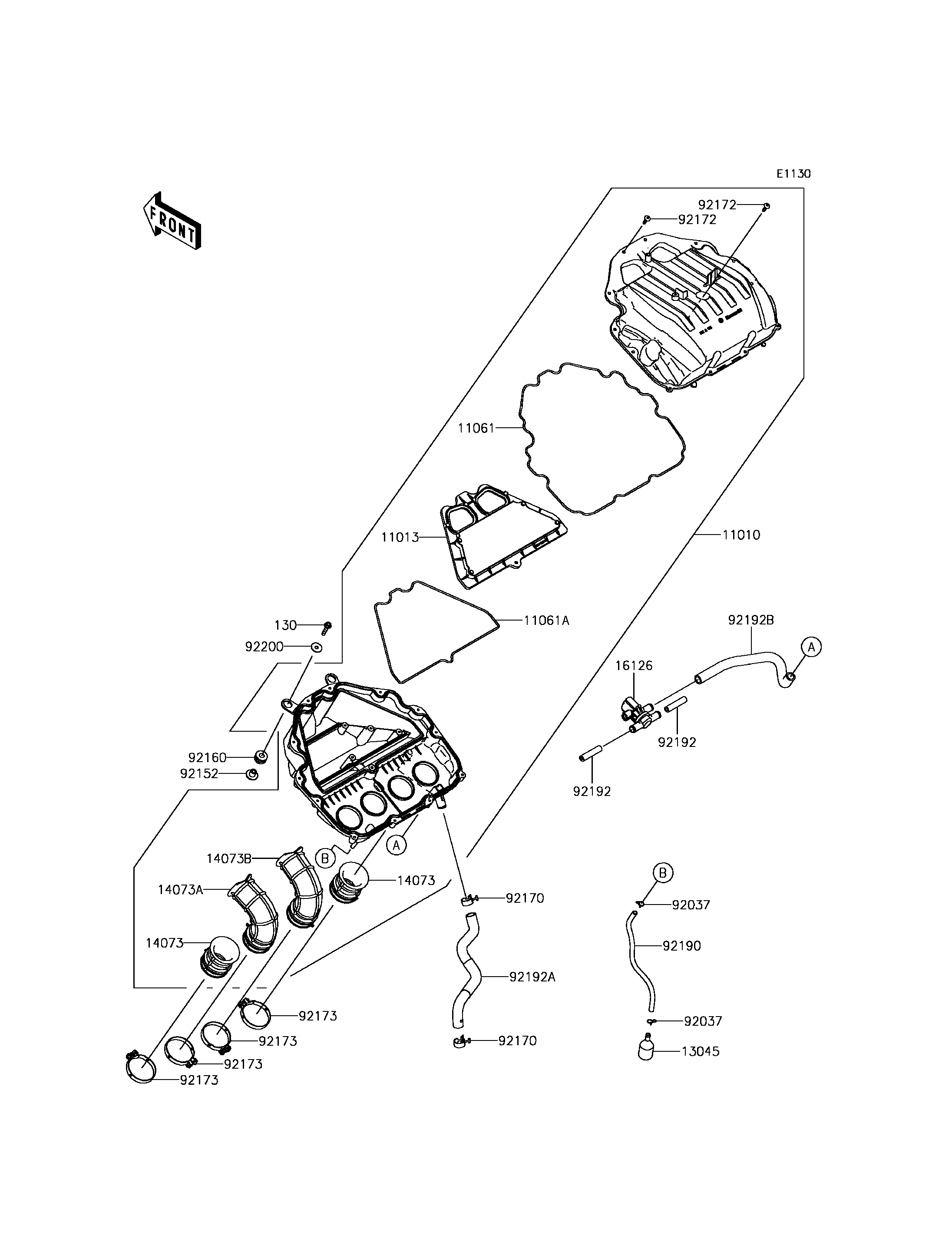

2017 Z900 ABS - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
130
11010
11013
11061
11061A
13045
14073
14073
14073A
14073B
16126
92037
92037
92152
92160
92170
92170
92172
92172
92173
92173
92173
92173
92190
92192
92192
92192A
92192B
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X30 130 130BB0630 2
FILTER-ASSY-AIR 11010 11010-0858 1
ELEMENT-AIR FILTER 11013 11013-0760 1
GASKET,CASE 11061 11061-1215 1
GASKET,ELEMENT 11061A 11061-1216 1
RECEIVER-OIL 13045 13045-1057 1
DUCT,#1,#4 14073 14073-0852 2
DUCT,#2 14073A 14073-0853 1
DUCT,#3 14073B 14073-0854 1
VALVE,AIR SWITCHING 16126 16126-0038 1
CLAMP 92037 92037-1712 2
COLLAR,6.5X10.5X13.1 92152 92152-0547 2
DAMPER 92160 92160-1162 2
CLAMP 92170 92170-1060 2
SCREW,TAPPING,5X20 92172 92172-0483 13
CLAMP,58MM 92173 92173-0927 4
TUBE,6X9X300 92190 92190-1253 1
TUBE,HEAD-ASV 92192 92192-0843 2
TUBE,BLOWBY 92192A 92192-1692 1
TUBE,ASV-A/C 92192B 92192-1693 1
WASHER,6.5X22X1.6 92200 92200-1087 2
