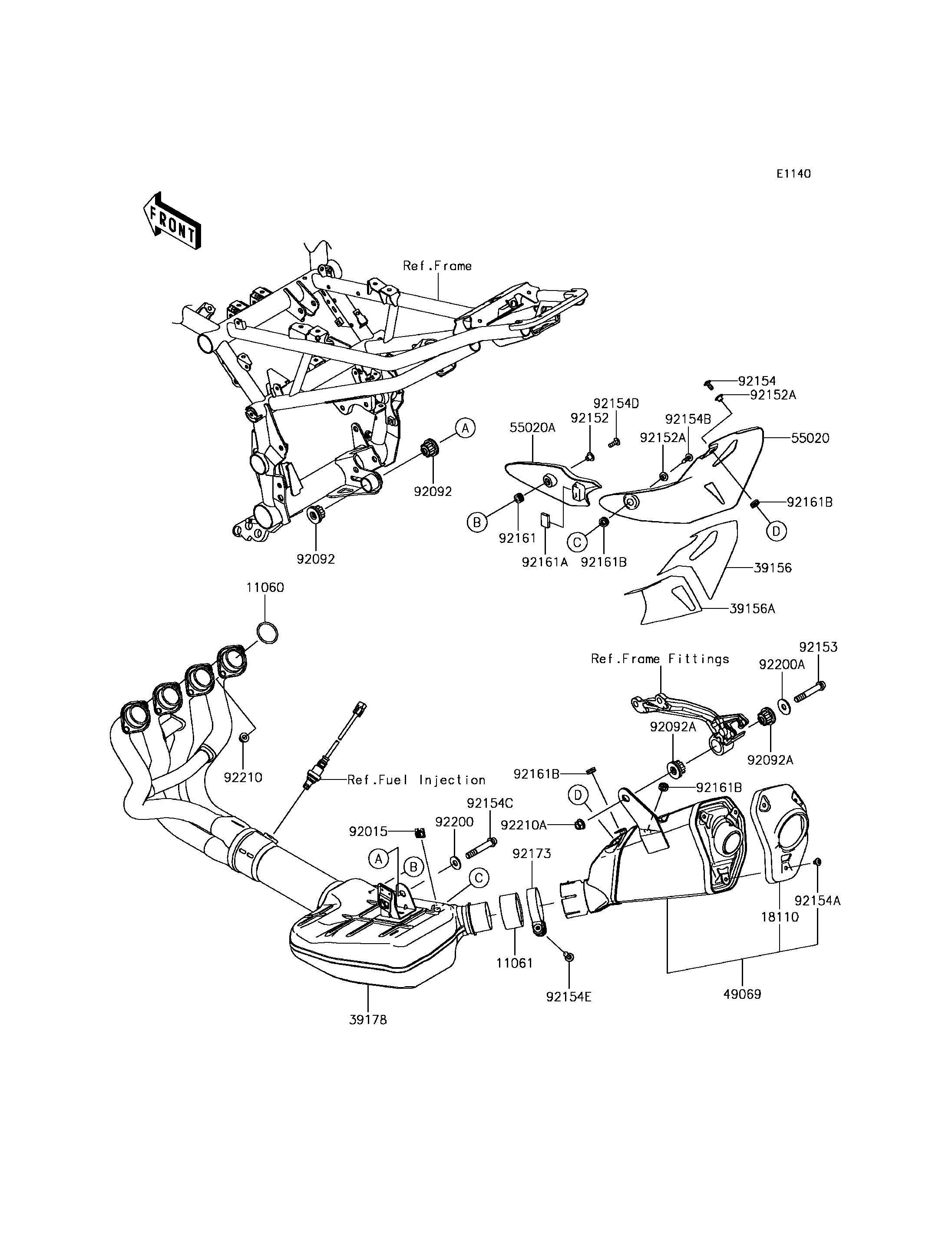

2017 Z900 ABS - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11060
11061
18110
39156
39156A
39178
49069
55020
55020A
92015
92092
92092
92092A
92092A
92152
92152A
92152A
92153
92154
92154A
92154B
92154C
92154D
92154E
92161
92161A
92161B
92161B
92161B
92161B
92173
92200
92200A
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE HOLDER 11060 11060-1103 4
GASKET,50.8X62X30 11061 11061-0447 1
BODY END-MUFFLER 18110 18110-0196 1
PAD,MUFFLER GUARD 39156 39156-2130 1
PAD,MUFFLER GUARD 39156A 39156-2131 1
MANIFOLD-COMP-EXHAUST 39178 39178-0268 1
MUFFLER-ASSY 49069 49069-0823 1
GUARD,MUFFLER,RR 55020 55020-1966 1
GUARD,MUFFLER,FR 55020A 55020-1967 1
NUT 92015 92015-1487 1
BUSHING-RUBBER 92092 92092-1081 2
BUSHING-RUBBER,MUFFLER 92092A 92092-1087 2
COLLAR,6.3X8.3X9.2 92152 92152-0237 1
COLLAR,6.3X8.3X7.2 92152A 92152-1602 2
BOLT,SOCKET,10X60 92153 92153-1837 1
BOLT,SOCKET,6X14 92154 92154-0856 1
BOLT,HEX HEAD,6X8 92154A 92154-0987 3
BOLT,SOCKET,6X27 92154B 92154-1192 1
BOLT,SOCKET 92154C 92154-1281 1
BOLT,SOCKET,6X18 92154D 92154-2340 1
BOLT-FLANGED-SMALL,8X40 92154E 92154-2738 1
DAMPER 92161 92161-0204 1
DAMPER 92161A 92161-1228 1
DAMPER 92161B 92161-1475 4
CLAMP,64.5MM 92173 92173-0284 1
WASHER,10.5X25X2.0 92200 92200-1377 1
WASHER,10.5X30X2.3 92200A 92200-1849 1
NUT,8MM 92210 92210-0076 8
NUT,LOCK,FLANGED,10MM 92210A 92210-1139 1
