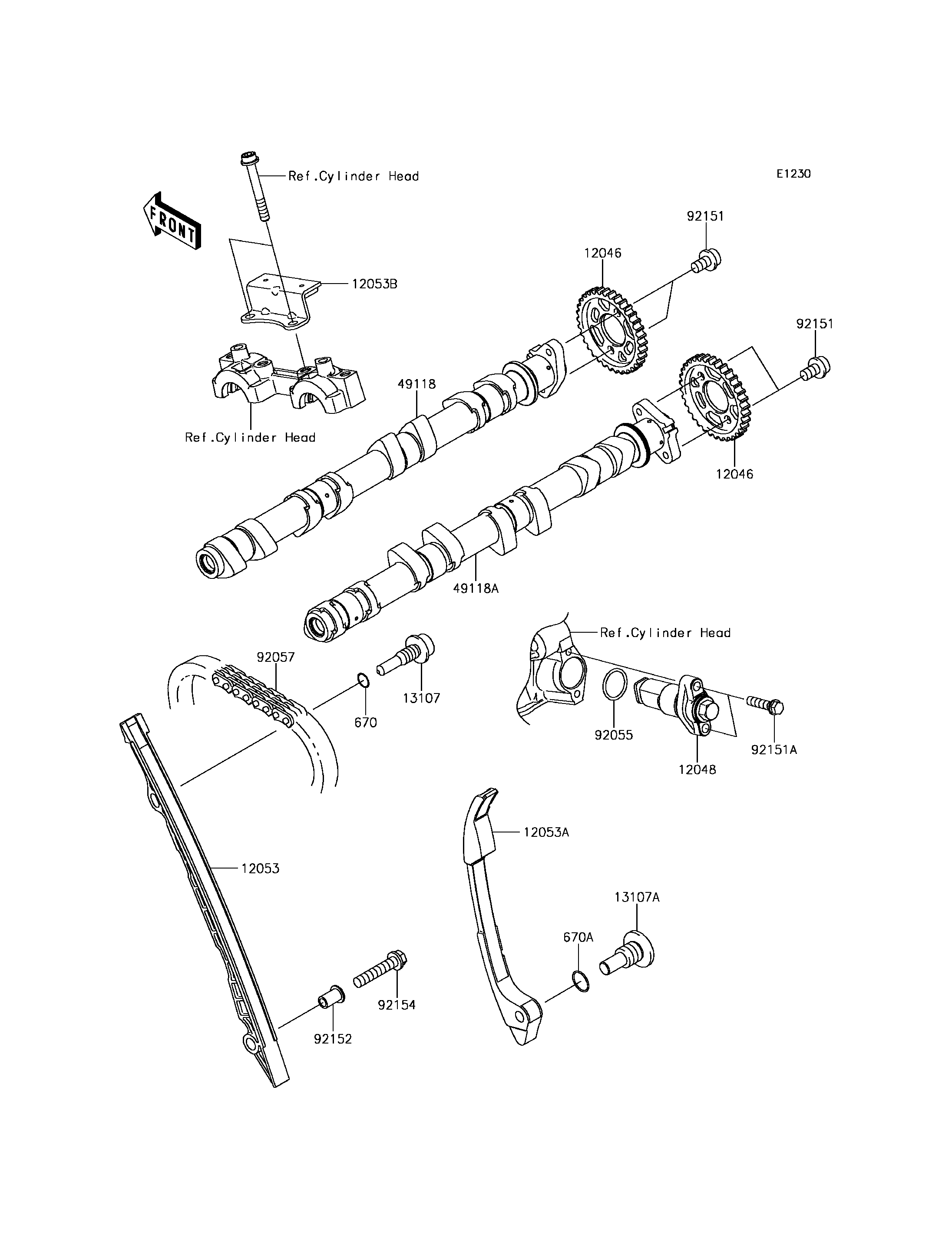

2017 Z900 ABS - Camshaft(s)/Tensioner

DOWNLOAD PDF
SELECT A NEW PART
670
670A
12046
12046
12048
12053
12053A
12053B
13107
13107A
49118
49118A
92055
92057
92151
92151
92151A
92152
92154
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
O RING,9MM 670 670D1509 1
O RING,14MM 670A 670D2014 1
SPROCKET,CAMSHAFT,34T 12046 12046-0564 2
TENSIONER-ASSY 12048 12048-0080 1
GUIDE-CHAIN,FR 12053 12053-0161 1
GUIDE-CHAIN,RR 12053A 12053-0162 1
GUIDE-CHAIN,UPP 12053B 12053-0163 1
SHAFT,CHAIN GUIDE 13107 13107-0157 1
SHAFT 13107A 13107-1376 1
CAMSHAFT-COMP,EXHAUST 49118 49118-0144 1
CAMSHAFT-COMP,INTAKE 49118A 49118-0782 1
RING-O,18.8X1.9 92055 92055-086 1
CHAIN,98XRH2015-126M 92057 92057-0202 1
BOLT,SOCKET,6X10 92151 92151-1829 4
BOLT,FLANGED-SMALL,6X25 92151A 92151-1930 2
COLLAR 92152 92152-1167 1
BOLT,FLANGED,6X30 92154 92154-1942 1
