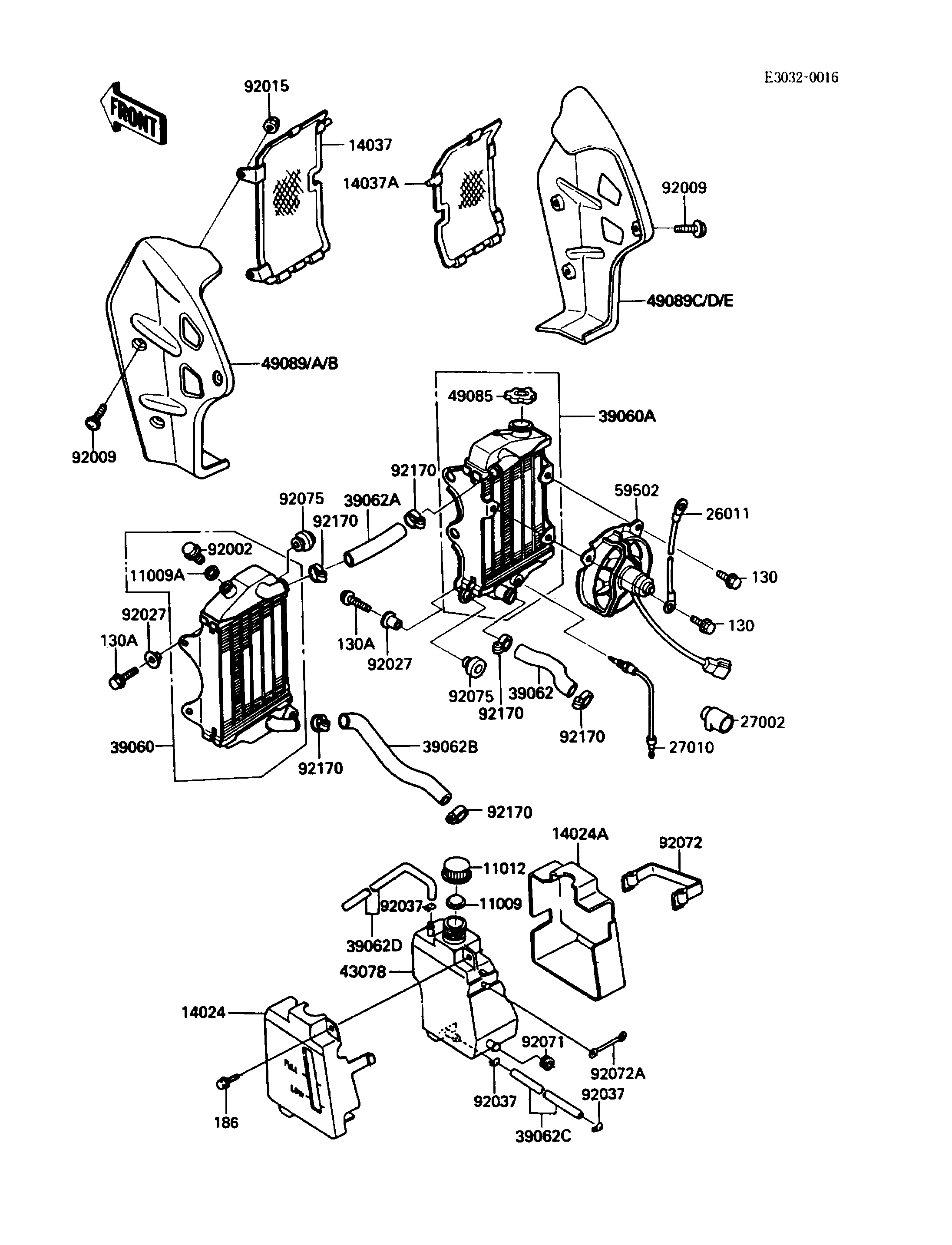

1988 KLR250 - Radiator

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
GASKET,DRAIN BOLT 11009A 11009-1152 1
CAP 11012 11012-1084 1
COVER,RESERVOIR 14024 14025-1991 1
COVER,RESERVOIR 14024A 14025-1992 1
SCREEN,LH 14037 14037-1061 1
SCREEN,RH 14037A 14037-1062 1
WIRE-LEAD 26011 26011-1278 1
RELAY-ASSY 27002 27002-1051 1
SWITCH,FAN 27010 27010-1180 1
RADIATOR,LH 39060 39060-1060 1
RADIATOR,RH 39060A 39060-1061 1
HOSE-COOLING 39062 39062-1083 1
HOSE-COOLING 39062A 39062-1084 1
HOSE-COOLING 39062B 39062-1085 1
HOSE-COOLING 39062C 39062-1086 1
HOSE-COOLING 39062D 39062-1132 1
RESERVOIR,TANK 43078 43078-1061 1
CAP-ASSY-PRESSURE 49085 49085-1057 1
SHROUD-ENGINE,LH,B,BLUE 49089B 49089-1057-6K 1
SHROUD-ENGINE,RH,B.BLUE 49089E 49089-1058-6K 1
FAN-ASSY 59502 59502-1052 1
BOLT,RADIATOR DRAIN 92002 92002-1682 1
SCREW,6X14,WHITE 92009 92009-1287 6
NUT,CAP,6MM,BLACK 92015 92015-1170 4
COLLAR 92027 92027-1183 6
CLAMP,TUBE 92037 92037-147 3
GROMMET 92071 92071-1115 1
BAND,L=82 92072 92072-053 1
BAND,L=58 92072A 92072-1156 1
DAMPER 92075 92075-1352 6
CLAMP,COOLING HOSE 92170 92170-1033 6
BOLT-FLANGED 130 130J0612 3
BOLT-FLANGED 130A 130J0620 6
BOLT-UPSET-WP 186 186J0618 1
