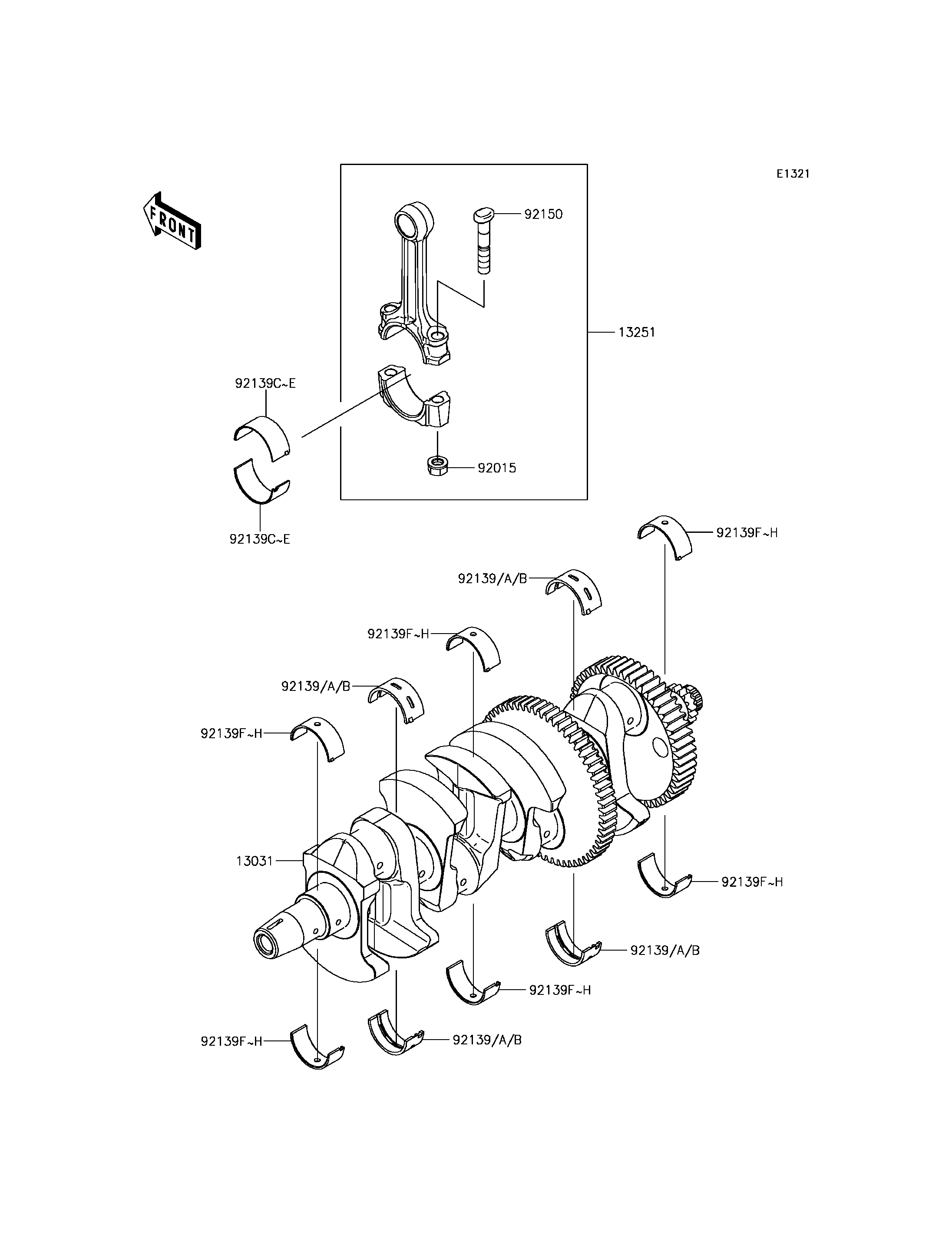

2017 Z900 ABS - Crankshaft

DOWNLOAD PDF
SELECT A NEW PART
13031
13251
92015
92139
92139
92139
92139
92139A
92139A
92139A
92139A
92139B
92139B
92139B
92139B
92139C
92139C
92139D
92139D
92139E
92139E
92139F
92139F
92139F
92139F
92139F
92139F
92139G
92139G
92139G
92139G
92139G
92139G
92139H
92139H
92139H
92139H
92139H
92139H
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CRANKSHAFT-COMP 13031 13031-0851 1
ROD-ASSY-CONNECTING,II 13251 13251-0726-II 4
NUT,FLANGED,8MM 92015 92015-1311 8
BUSHING,CRANK #2&#4,BLUE 92139 92139-0032 AR
BUSHING,CRANK #2&#4,BLACK 92139A 92139-0033 4
BUSHING,CRANK #2&#4,BROWN 92139B 92139-0034 AR
BUSHING,CRANK PIN,BLUE 92139C 92139-0122 AR
BUSHING,CRANK PIN,BLACK 92139D 92139-0123 8
BUSHING,CRANK PIN,BROWN 92139E 92139-0124 AR
BUSHING,CRANK,#1&#3&#5,BLUE 92139F 92139-0217 AR
BUSHING,CRANK,#1&#3&#5,BLACK 92139G 92139-0218 6
BUSHING,CRANK,#1&#3&#5,BROWN 92139H 92139-0219 AR
BOLT,CONNECTING ROD,8MM 92150 92150-1216 8
