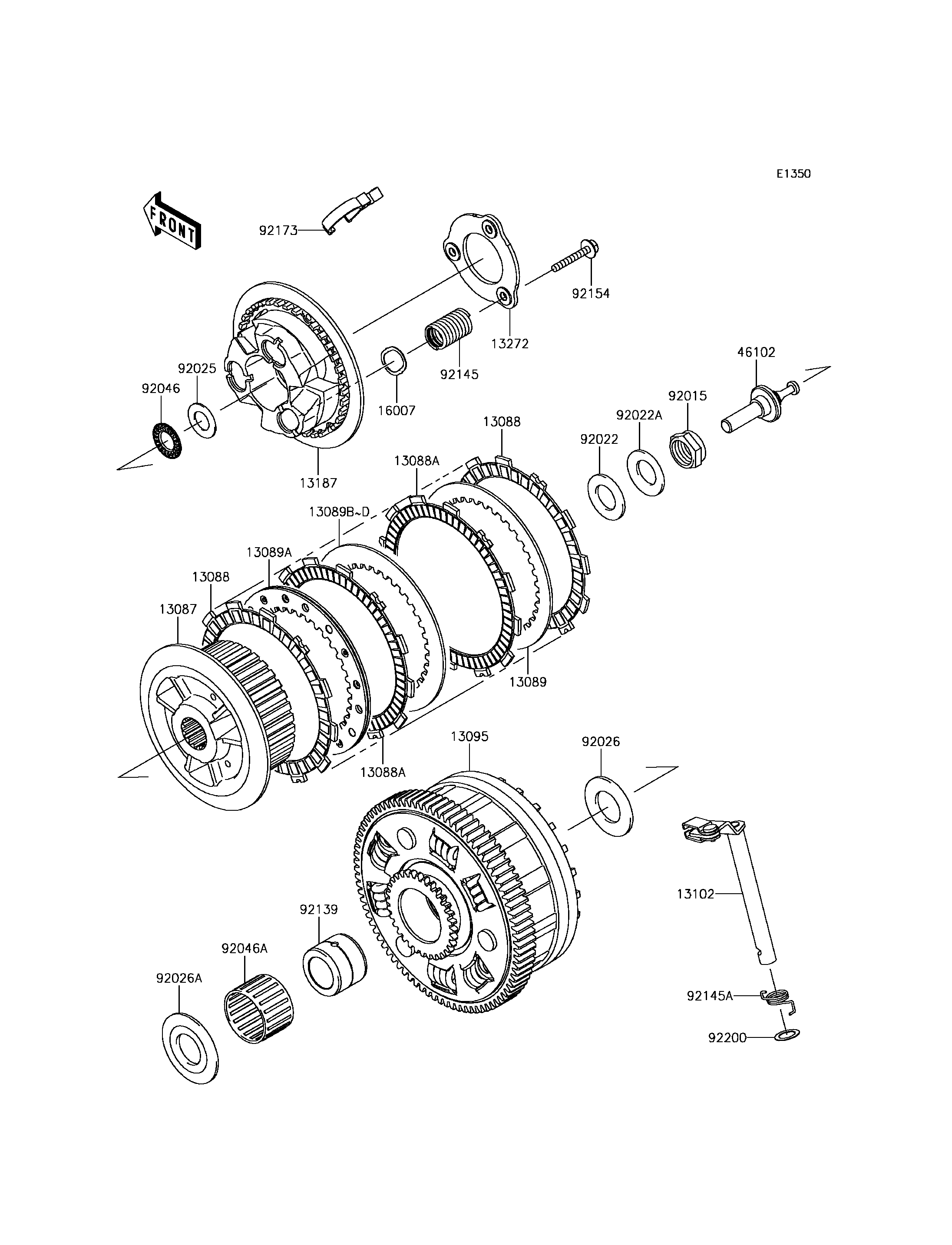

2017 Z900 ABS - Clutch

DOWNLOAD PDF
SELECT A NEW PART
13087
13088
13088
13088A
13088A
13089
13089A
13089B
13089C
13089D
13095
13102
13187
13272
16007
46102
92015
92022
92022A
92025
92026
92026A
92046
92046A
92139
92145
92145A
92154
92173
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HUB-CLUTCH 13087 13087-0583 1
PLATE-FRICTION 13088 13088-0568 2
PLATE-FRICTION,T=2.8 13088A 13088-0588 7
PLATE-CLUTCH,T=2.3 13089 13089-0023 1
PLATE-CLUTCH,SPG COMP 13089A 13089-0024 1
PLATE-CLUTCH,T=2.0 13089B 13089-1073 AR
PLATE-CLUTCH,T=2.3 13089C 13089-1084 6
PLATE-CLUTCH,T=2.6 13089D 13089-1115 AR
HOUSING-COMP-CLUTCH 13095 13095-0118 1
RELEASE-COMP-CLUTCH 13102 13102-0072 1
PLATE-CLUTCH OPERATING 13187 13187-0031 1
PLATE 13272 13272-1413 1
SEAT-SPRING 16007 16007-0711 3
ROD 46102 46102-0621 1
NUT,20MM 92015 92015-1555 1
WASHER,20.3X36X2.3 92022 92022-1116 1
WASHER,20.3X36X3.7 92022A 92022-1868 1
SHIM,15.3X27.5X1.20 92025 92025-1137 1
SPACER,25.5X47X2.5 92026 92026-022 1
SPACER 92026A 92026-1497 1
BEARING-NEEDLE,AXK1102 92046 92046-1052 1
BEARING-NEEDLE,K38X43X28.8X 92046A 92046-1263 1
BUSHING,25X38X29.05 92139 92139-0067 1
SPRING 92145 92145-1745 3
SPRING,RELEASE-COMP 92145A 92145-1769 1
BOLT,FLANGED,6X35 92154 92154-1116 3
CLAMP 92173 92173-1724 1
WASHER,12X18.5X0.5 92200 92200-1487 1
