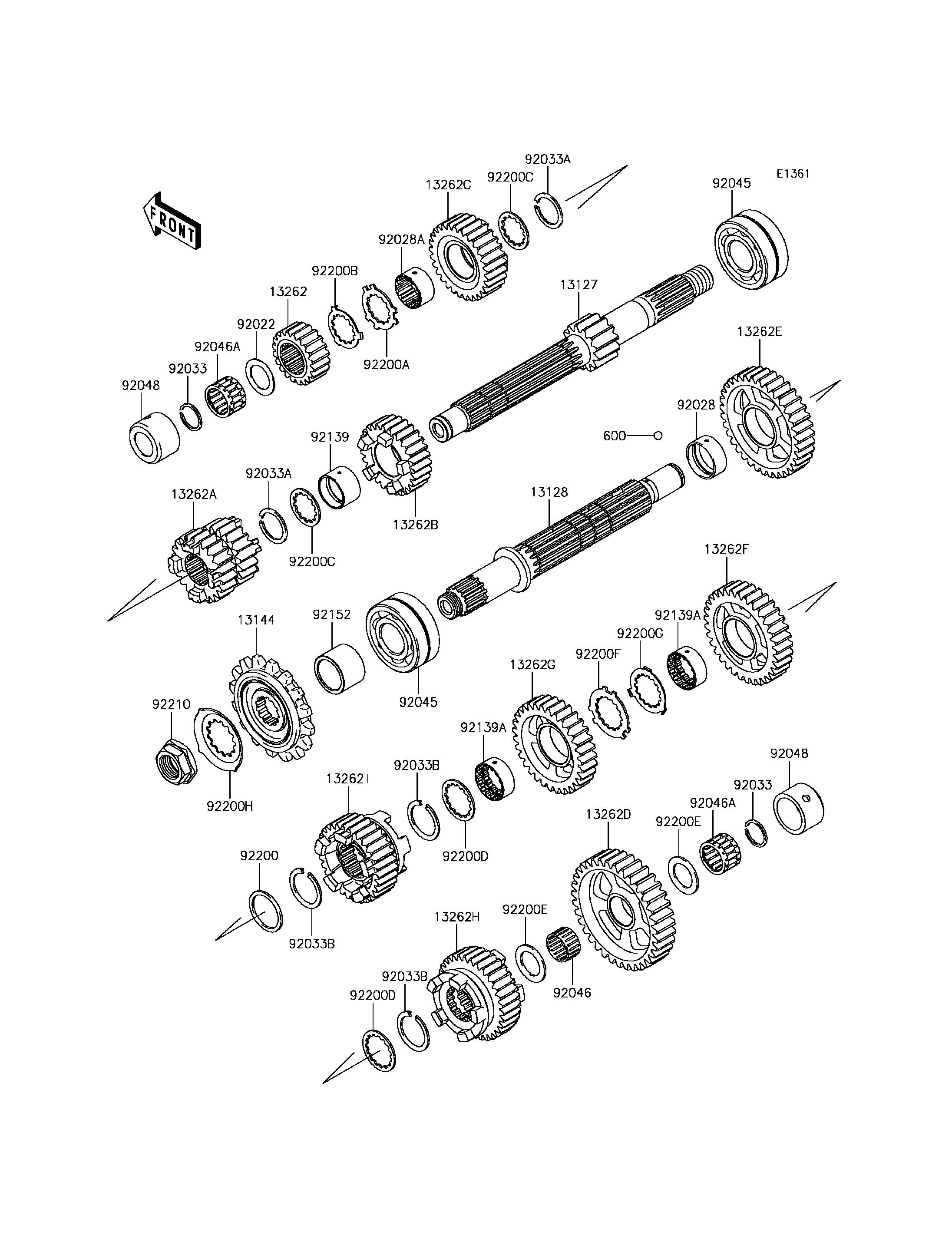

2017 Z900 ABS - Transmission

DOWNLOAD PDF
SELECT A NEW PART
600
13127
13128
13144
13262
13262A
13262B
13262C
13262D
13262E
13262F
13262G
13262H
13262I
92022
92028
92028A
92033
92033
92033A
92033A
92033B
92033B
92033B
92045
92045
92046
92046A
92046A
92048
92048
92139
92139A
92139A
92152
92200
92200A
92200B
92200C
92200C
92200D
92200D
92200E
92200E
92200F
92200G
92200H
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BALL-STEEL,5/32 600 600A0500 3
SHAFT-TRANSMISSION INPUT,13T 13127 13127-0674 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-0698 1
SPROCKET-OUTPUT,15T 13144 13144-0070 1
GEAR,INPUT 2ND,17T 13262 13262-1233 1
GEAR,INPUT 3RD&4TH,20T&22T 13262A 13262-1234 1
GEAR,INPUT 5TH,27T 13262B 13262-1235 1
GEAR,INPUT 6TH,29T 13262C 13262-1236 1
GEAR,OUTPUT LOW,35T 13262D 13262-1237 1
GEAR,OUTPUT 2ND,35T 13262E 13262-1238 1
GEAR,OUTPUT 3RD,33T 13262F 13262-1239 1
GEAR,OUTPUT 4TH,31T 13262G 13262-1240 1
GEAR,OUTPUT 5TH,33T 13262H 13262-1241 1
GEAR,OUTPUT 6TH,30T 13262I 13262-1242 1
WASHER,20.5X30X1,STEEL 92022 92022-112 1
BUSHING,OUTPUT,2ND 92028 92028-1739 1
BUSHING,INPUT TOP GEAR 92028A 92028-1915 1
RING-SNAP,20MM 92033 92033-015 2
RING-SNAP,24MM 92033A 92033-026 2
RING-SNAP,T=1.5 92033B 92033-1249 3
BEARING-BALL,DAC2557NSSH 92045 92045-0003 2
BEARING-NEEDLE,K20X24X13 92046 92046-1219 1
BEARING-NEEDLE,PK20X27X17X3 92046A 92046-1303 2
RACE 92048 92048-0016 2
BUSHING,25X28X17.8 92139 92139-0280 1
BUSHING,OUTPUT,3RD&4TH 92139A 92139-0281 2
COLLAR,SPROCKET 92152 92152-2263 1
WASHER,28.1X34.0X1.6 92200 92200-0228 1
WASHER,25.2X34.2X1.5 92200A 92200-0520 1
WASHER,25.2X32X1 92200B 92200-0521 1
WASHER,25.2X31.0X1.5 92200C 92200-1239 2
WASHER,28.5X34.0X1.5 92200D 92200-1240 2
WASHER,20.5X31X1.5 92200E 92200-1375 2
WASHER,25.8X40.5X1.5 92200F 92200-1522 1
WASHER,25.2X37.0X1.0 92200G 92200-1523 1
WASHER 92200H 92200-1720 1
NUT,20MM 92210 92210-0850 1
