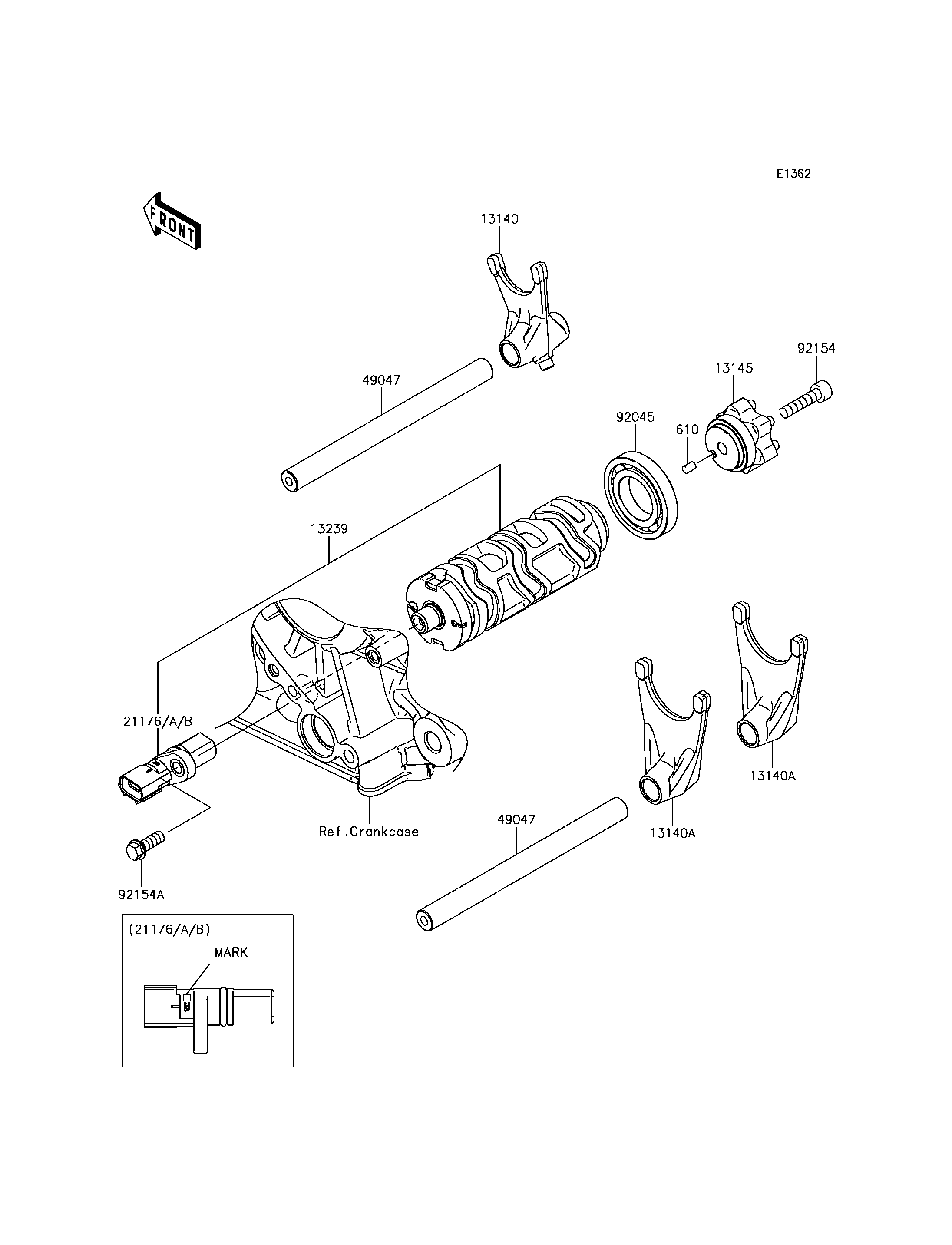

2017 Z900 ABS - Gear Change Drum/Shift Fork(s)

610
13140
13140A
13140A
13145
13239
21176
21176A
21176B
49047
49047
92045
92154
92154A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROLLER,4X6 610 610A0406 1
FORK-SHIFT 13140 13140-0061 1
FORK-SHIFT 13140A 13140-0062 2
CAM-CHANGE DRUM 13145 13145-0568 1
DRUM-ASSY-CHANGE 13239 13239-0581 1
SENSOR,GEAR POSITION,M MARK 21176 21176-0825 1
SENSOR,GEAR POSITION,H MARK 21176A 21176-0845 1
SENSOR,GEAR POSITION,L MARK 21176B 21176-0846 1
ROD-SHIFT 49047 49047-0023 2
BEARING-BALL,16005 92045 92045-1045 1
BOLT,SOCKET,6X25 92154 92154-0477 1
BOLT,FLANGED,6X16 92154A 92154-2096 1
