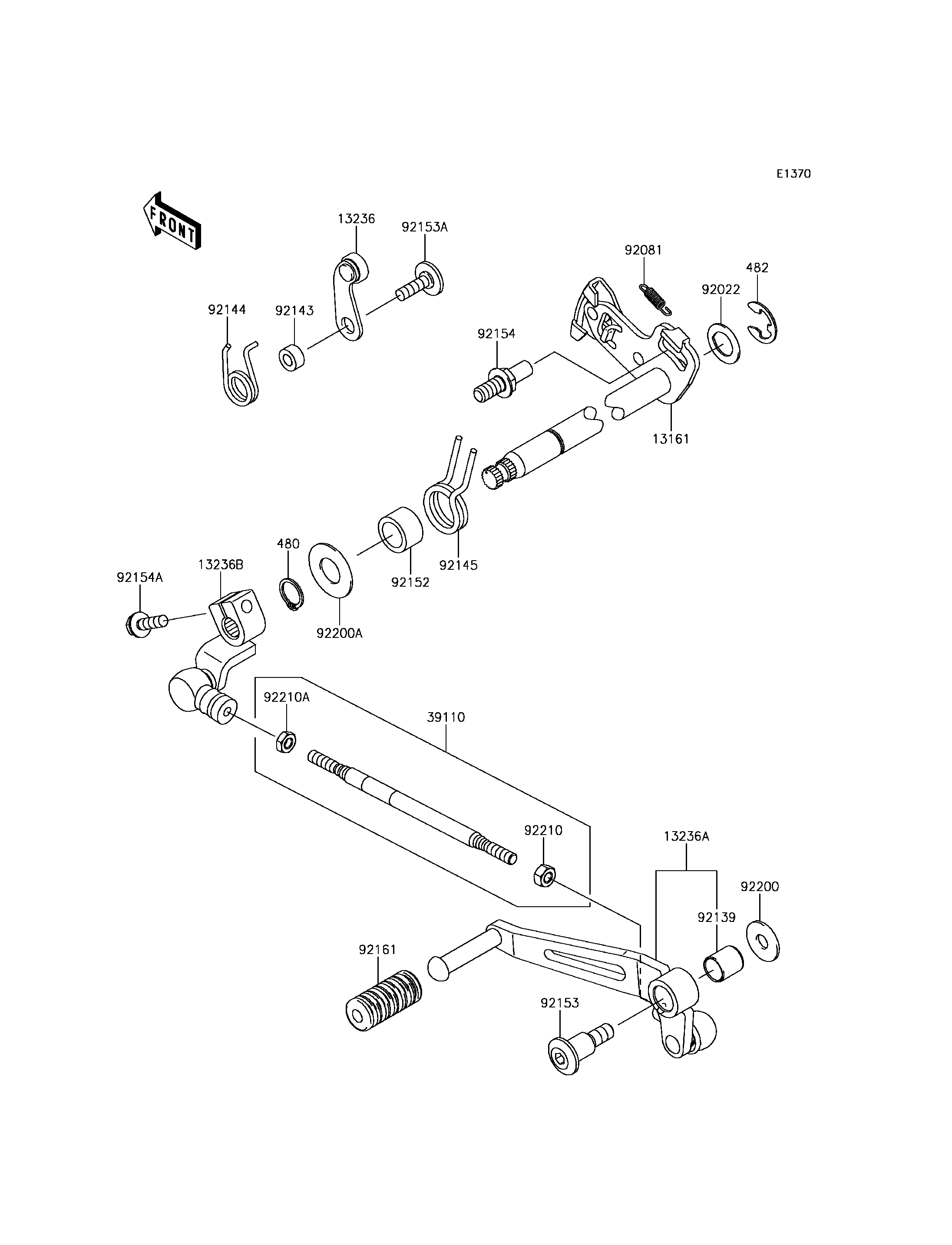

2017 Z900 ABS - Gear Change Mechanism

DOWNLOAD PDF
SELECT A NEW PART
480
482
13161
13236
13236A
13236B
39110
92022
92081
92139
92143
92144
92145
92152
92153
92153A
92154
92154A
92161
92200
92200A
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-C,14MM 480 480J1400 1
CIRCLIP-TYPE-E,12MM 482 482J0200 1
LEVER-COMP-CHANGE SHAFT 13161 13161-0592 1
LEVER-COMP 13236 13236-0068 1
LEVER-COMP,CHANGE PEDAL 13236A 13236-0783 1
LEVER-COMP,ENGINE SIDE 13236B 13236-0784 1
ROD-ASSY-TIE 39110 39110-0033 1
WASHER,CHANGE SHAFT 92022 92022-1628 1
SPRING,PAWL RETURN 92081 92081-1708 1
BUSHING 92139 92139-0023 1
COLLAR 92143 92143-1595 1
SPRING,GEAR POSITION 92144 92144-1523 1
SPRING 92145 92145-1122 1
COLLAR,14.2X19.9X12.0 92152 92152-1383 1
BOLT,SOCKET,8X16.7 92153 92153-0446 1
BOLT,6X20 92153A 92153-1505 1
BOLT,RETURN SPRING 92154 92154-1838 1
BOLT,FLANGED,6X20 92154A 92154-2090 1
DAMPER,CHANGE PEDAL 92161 92161-1300 1
WASHER,8.0X22.0X1.5 92200 92200-0174 1
WASHER 92200A 92200-0265 1
NUT,6MM 92210 92210-1100 1
NUT,LEFT HANDED,6MM 92210A 92210-1101 1
