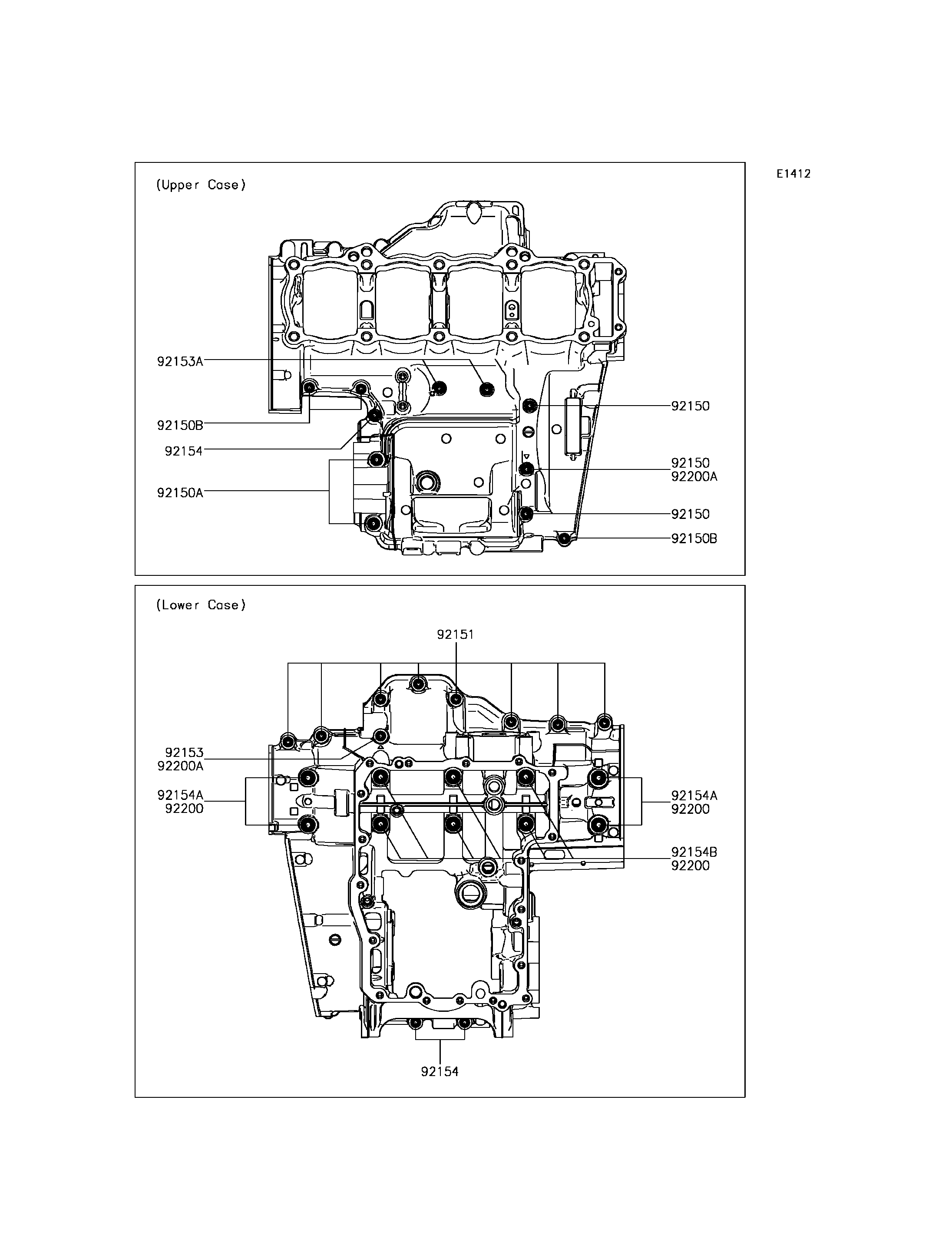

2017 Z900 ABS - Crankcase Bolt Pattern

DOWNLOAD PDF
SELECT A NEW PART
92150
92150
92150
92150A
92150B
92150B
92151
92153
92153A
92154
92154
92154A
92154A
92154B
92200
92200
92200
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,FLANGED,7X85 92150 92150-1251 3
BOLT,8X70 92150A 92150-1483 2
BOLT,6X40 92150B 92150-1794 3
BOLT,FLANGED,7X45 92151 92151-1539 8
BOLT,FLANGED,7X60 92153 92153-1045 1
BOLT,FLANGED,6X68 92153A 92153-1637 2
BOLT,FLANGED,7X50 92154 92154-0372 3
BOLT,FLANGED,9X100 92154A 92154-2639 4
BOLT,FLANGED,9X90 92154B 92154-2640 6
WASHER,9.2X19X2.3 92200 92200-0115 10
WASHER 92200A 92200-0556 2
