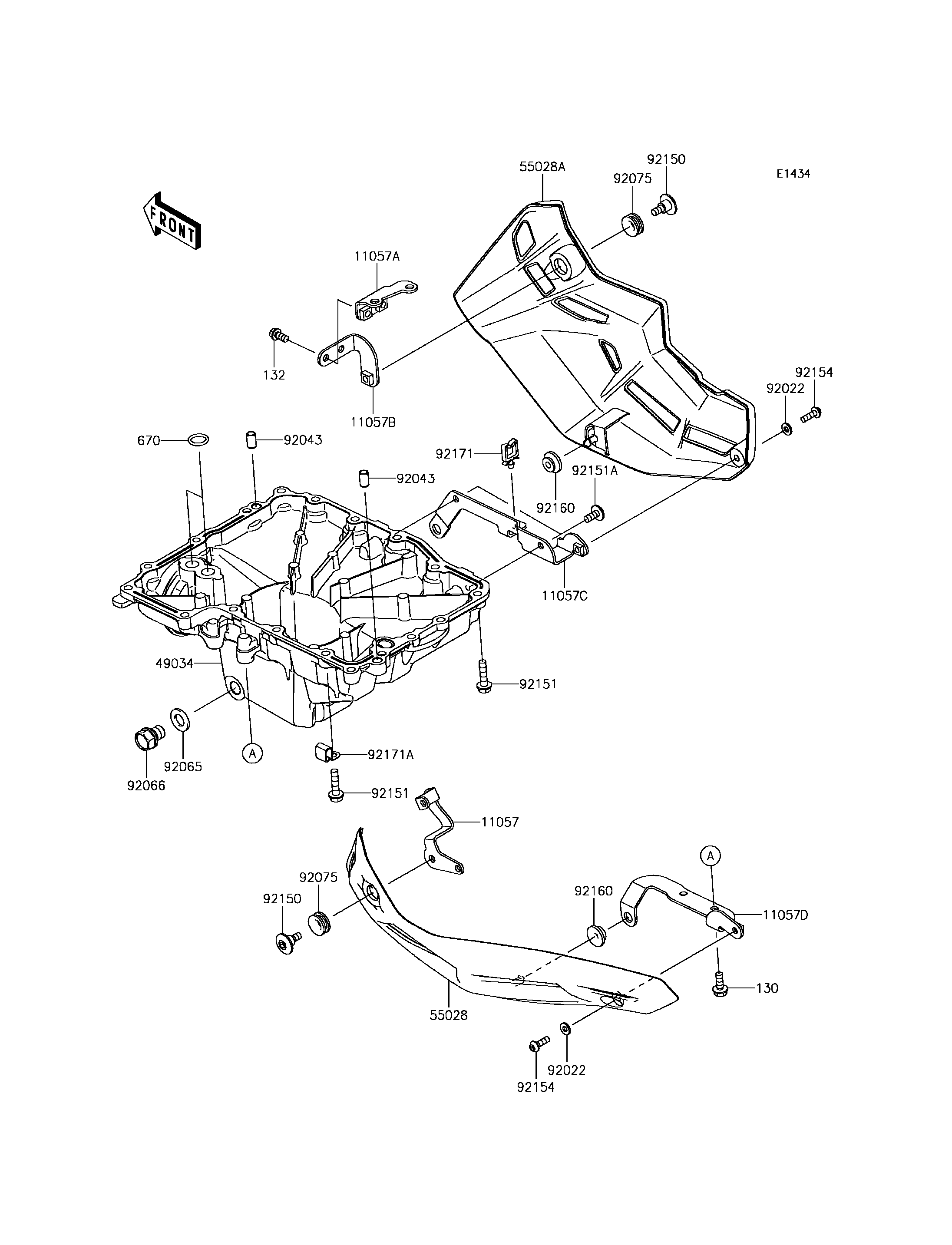

2017 Z900 ABS - Oil Pan

DOWNLOAD PDF
SELECT A NEW PART
130
132
670
11057
11057A
11057B
11057C
11057D
49034
55028
55028A
92022
92022
92043
92043
92065
92066
92075
92075
92150
92150
92151
92151
92151A
92154
92154
92160
92160
92171
92171A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130CC0616 2
BOLT-FLANGED-SMALL,6X12 132 132BA0612 2
O RING,14MM 670 670D2014 2
BRACKET,LWR COWLING,LH,FR 11057 11057-0291 1
BRACKET,LWR COWLING,RH,FR 11057A 11057-0293 1
BRACKET,LWR COWLING,RH,FR 11057B 11057-0294 1
BRACKET,LWR COWLING,RH,RR 11057C 11057-0295 1
BRACKET,LWR COWLING,LH,RR 11057D 11057-0874 1
PAN-OIL 49034 49034-0049 1
COWLING,LWR,LH,M.F.S.BLACK 55028 55028-0609-739 1
COWLING,LWR,RH,M.F.S.BLACK 55028A 55028-0610-739 1
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 2
PIN,6.2X8X14 92043 92043-1263 2
GASKET,12X22X2 92065 92065-097 1
PLUG,12X15 92066 92066-0079 1
DAMPER 92075 92075-1634 2
BOLT,SOCKET,6MM 92150 92150-1154 2
BOLT,FLANGED,6X25 92151 92151-1225 18
BOLT,SOCKET,6X14 92151A 92151-1654 2
BOLT,SOCKET,5X16 92154 92154-0287 2
DAMPER 92160 92160-1613 2
CLAMP 92171 92171-0290 1
CLAMP 92171A 92171-0534 1
