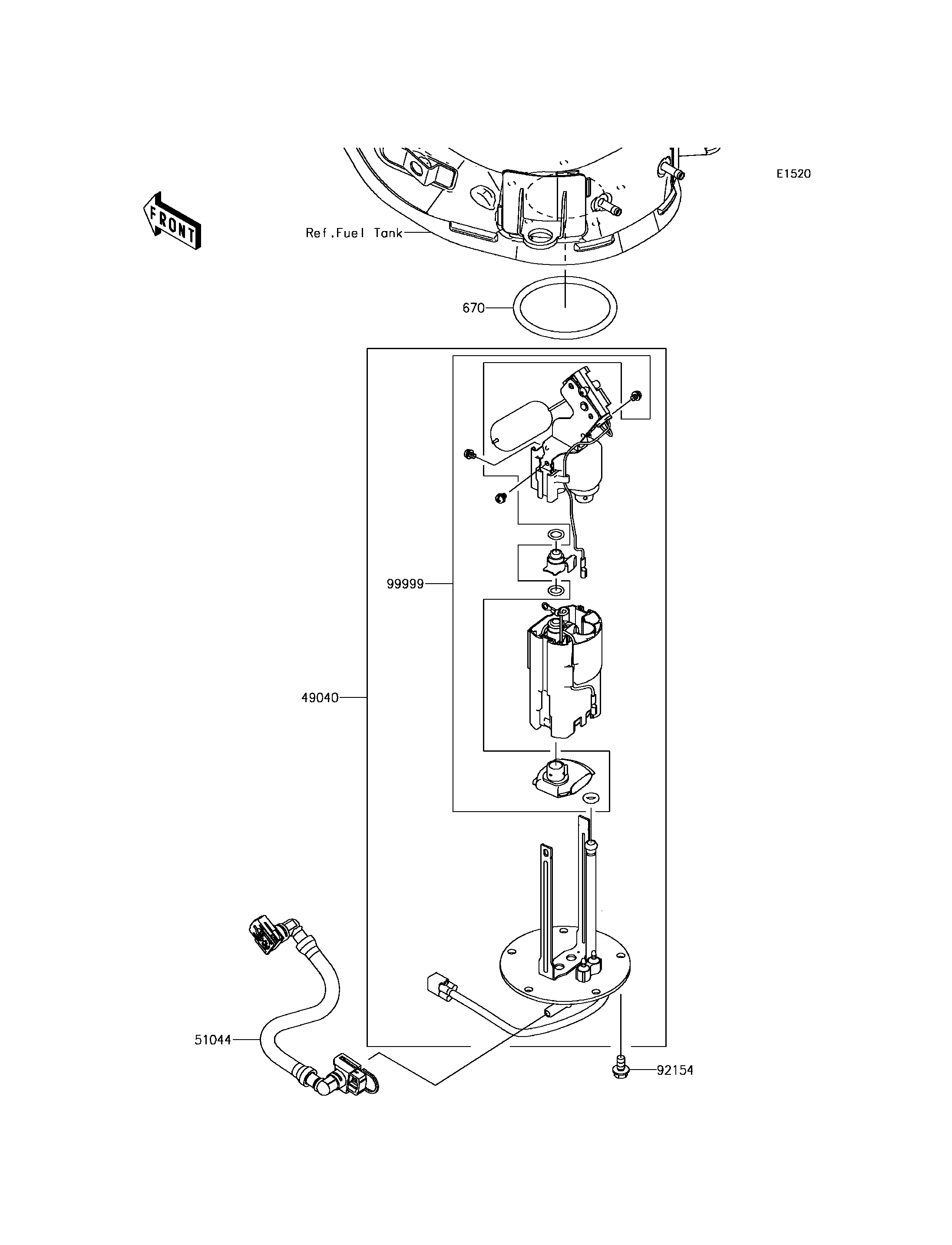

670
49040
51044
92154
99999
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
O RING 670 670E5075 1
PUMP-FUEL 49040 49040-0756 1
TUBE-ASSY,FUEL 51044 51044-0824 1
BOLT,FLANGED,6X12 92154 92154-2335 5
KIT,FUEL FILTER 99999 99999-0522 1
