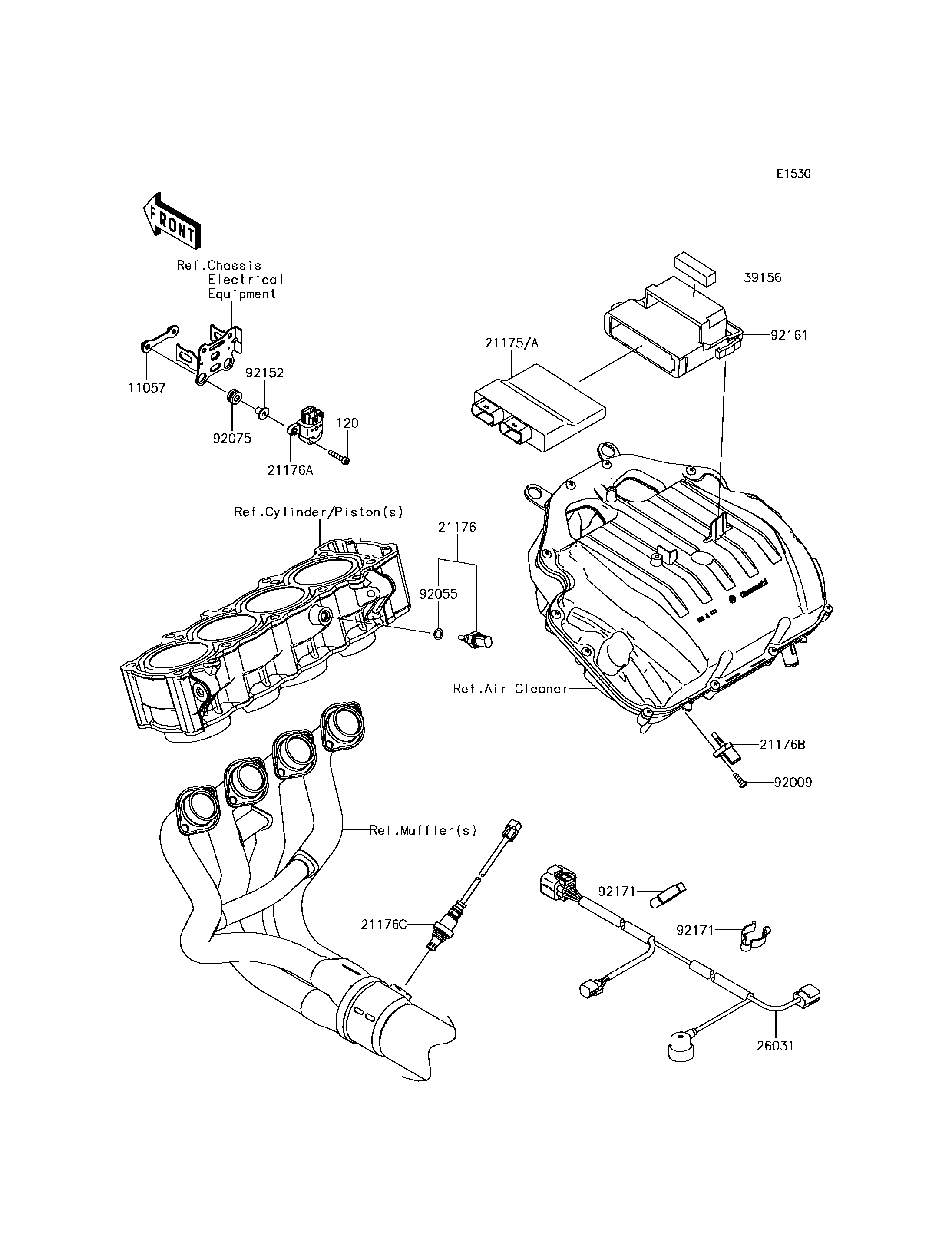

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X25 120 120CA0525 2
BRACKET,VEHICLE DOWN 11057 11057-0287 1
SENSOR,WATER TEMP 21176 21176-0009 1
SENSOR,VEHICLE-DOWN 21176A 21176-0026 1
SENSOR,AIR TEMPERATURE 21176B 21176-0048 1
SENSOR,OXYGEN 21176C 21176-0835 1
HARNESS,SUB 26031 26031-2159 1
PAD,15X55X15 39156 39156-2129 1
SCREW,TAPPING,5X16 92009 92009-1984 1
RING-O,9.5X1.9 92055 92055-0016 1
DAMPER 92075 92075-1912 2
COLLAR,5.6X8X11.2 92152 92152-1562 2
DAMPER,ECU 92161 92161-1870 1
CLAMP,CABLE 92171 92171-1283 2
CONTROL UNIT-ELECTRONIC 21175 21175-1239 1 CN
CONTROL UNIT-ELECTRONIC 21175A 21175-1240 1 CA
