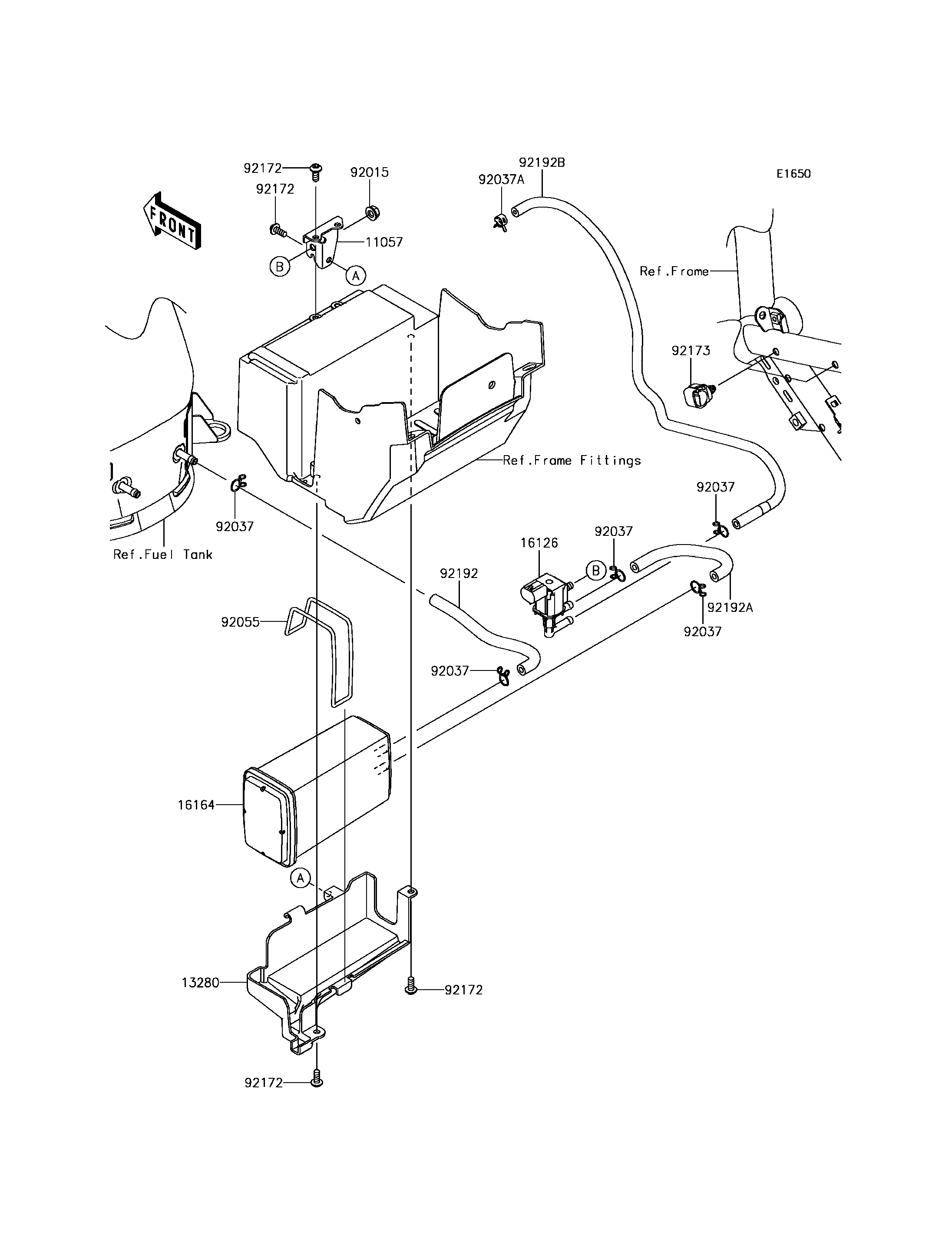

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,PCV 11057 11057-0286 1 CA
HOLDER,CANISTER 13280 13280-0880 1 CA
VALVE,PCV 16126 16126-0740 1 CA
CANISTER 16164 16164-0012 1 CA
NUT,FLANGED,6MM 92015 92015-1367 1 CA
CLAMP,TUBE 92037 92037-147 5 CA
CLAMP,7.8MM 92037A 92037-2116 1 CA
RING-O,104.4X3.1 92055 92055-1020 1 CA
SCREW,SOCKET,5X14 92172 92172-0823 5 CA
CLAMP,12MM DIA. 92173 92173-0736 2 CA
TUBE,CANISTER-TANK 92192 92192-1690 1 CA
TUBE,PCV-CANISTER 92192A 92192-1691 1 CA
TUBE,PCV-THROTTLE BODY 92192B 92192-1779 1 CA
