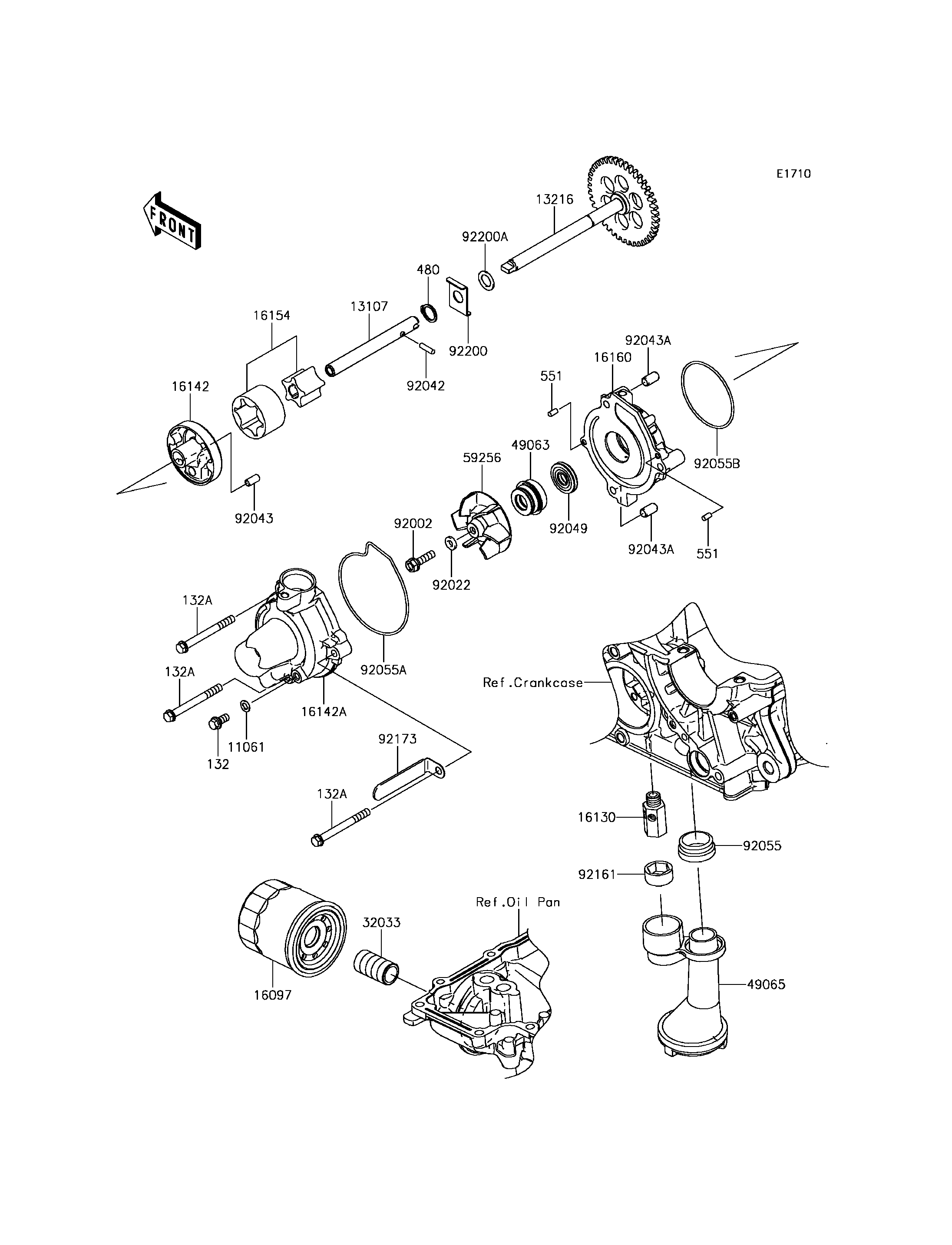

2017 Z900 ABS - Oil Pump/Oil Filter

DOWNLOAD PDF
SELECT A NEW PART
132
132A
132A
132A
480
551
551
11061
13107
13216
16097
16130
16142
16142A
16154
16160
32033
49063
49065
59256
92002
92022
92042
92043
92043A
92043A
92049
92055
92055A
92055B
92161
92173
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X12 132 132BA0612 1
BOLT-FLANGED-SMALL,6X60 132A 132BC0660 3
CIRCLIP-TYPE-C,11MM 480 480J1100 1
PIN-DOWEL,4X8 551 551A0408 2
GASKET 11061 11061-0107 1
SHAFT 13107 13107-0214 1
GEAR-COMP,OIL PUMP,41T 13216 13216-0020 1
FILTER-ASSY-OIL 16097 16097-0008 1
VALVE-ASSY-RELIEF 16130 16130-1058 1
COVER-PUMP 16142 16142-0064 1
COVER-PUMP 16142A 16142-0746 1
ROTOR-PUMP 16154 16154-0057 1
BODY 16160 16160-0796 1
PIPE,OIL FILTER 32033 32033-1535 1
SEAL-MECHANICAL,WATER 49063 49063-1055 1
FILTER-OIL 49065 49065-0026 1
IMPELLER 59256 59256-0555 1
BOLT,6X22 92002 92002-1154 1
WASHER,6.1X12X1 92022 92022-077 1
PIN,DOWEL,4X13.8 92042 92042-030 1
PIN,4.2X6X12 92043 92043-1262 1
PIN,6.2X8X14 92043A 92043-1263 2
SEAL-OIL 92049 92049-0798 1
RING-O,OIL FILTER 92055 92055-1503 1
RING-O,WATER PUMP COVER 92055A 92055-1571 1
RING-O,59.6X2.4 92055B 92055-3018 1
DAMPER 92161 92161-0070 1
CLAMP 92173 92173-1201 1
WASHER 92200 92200-0410 1
WASHER 92200A 92200-1009 1
