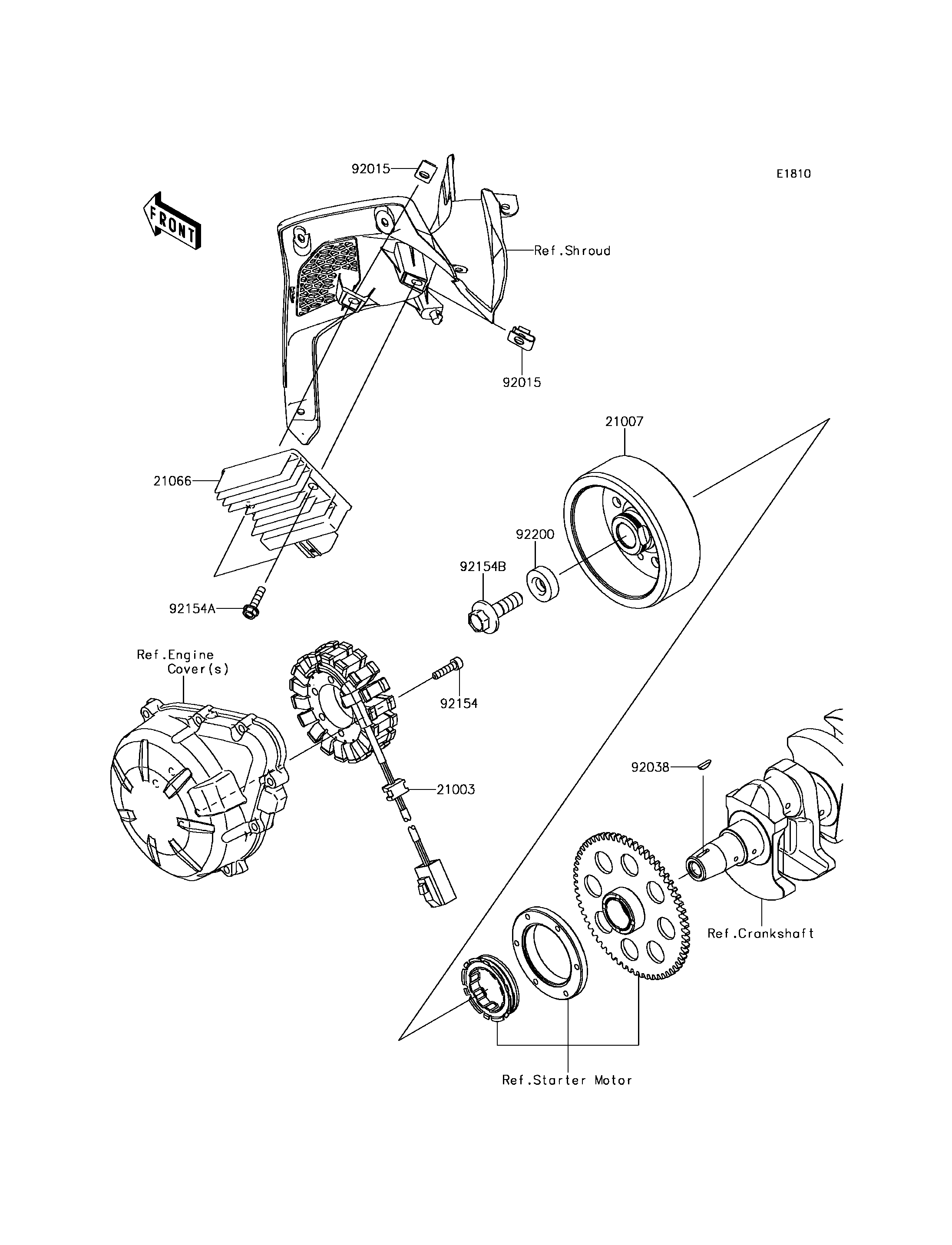

21003
21007
21066
92015
92015
92038
92154
92154A
92154B
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STATOR 21003 21003-0174 1
ROTOR 21007 21007-0646 1
REGULATOR-VOLTAGE 21066 21066-0753 1
NUT,6MM 92015 92015-1671 2
KEY 92038 92038-1060 1
BOLT,SOCKET,6X25 92154 92154-0477 4
BOLT,FLANGED,6X25 92154A 92154-2360 2
BOLT,FLANGED,12X40 92154B 92154-2650 1
WASHER,12X34X9 92200 92200-0369 1
