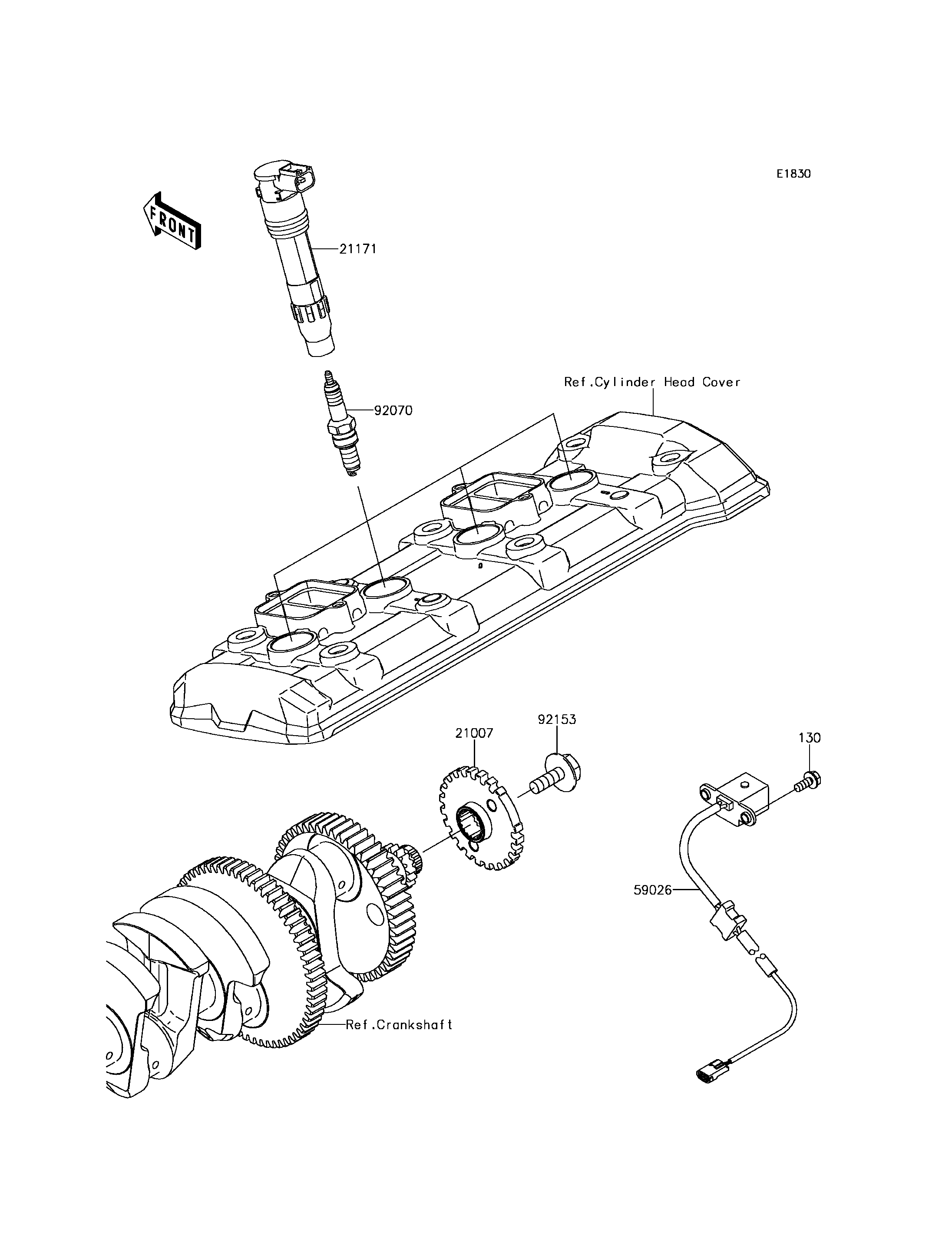

130
21007
21171
59026
92070
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,5X12 130 130BA0512 2
ROTOR 21007 21007-0579 1
COIL-ASSY-IGNITION 21171 21171-0033 4
COIL-PULSING 59026 59026-0043 1
PLUG-SPARK,CR9EIA(NGK) 92070 92070-0014 4
BOLT,FLANGED,8X23 92153 92153-0549 1
