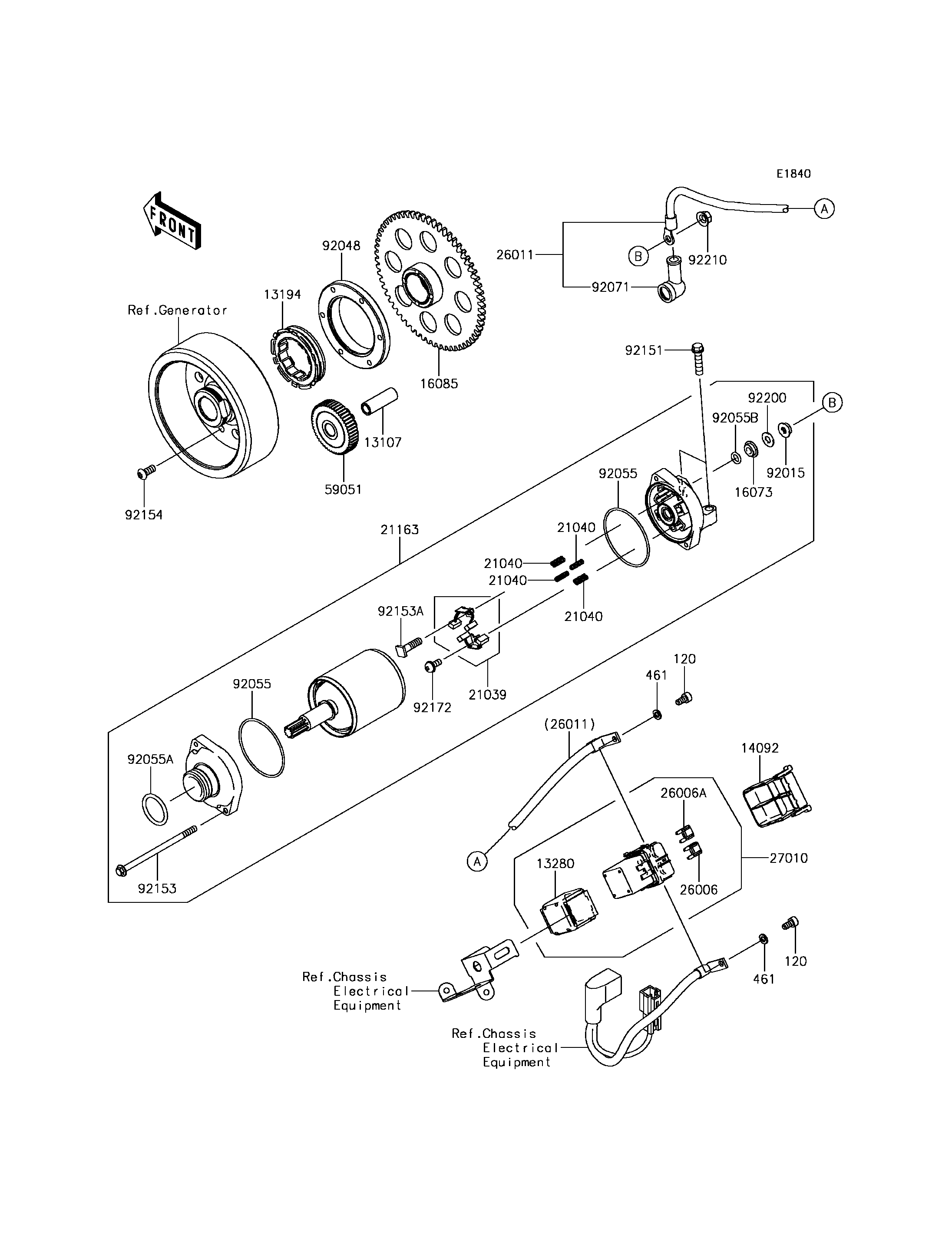

2017 Z900 ABS - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
120
120
461
461
13107
13194
13280
14092
16073
16085
21039
21040
21040
21040
21040
21163
26006
26006A
26011
27010
59051
92015
92048
92055
92055
92055A
92055B
92071
92151
92153
92153A
92154
92172
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X10 120 120CB0510 2
WASHER-SPRING,5MM 461 461DB0500 2
SHAFT,IDLER GEAR 13107 13107-1377 1
CLUTCH-ONEWAY 13194 13194-1096 1
HOLDER,MAGNETIC SWITCH 13280 13280-0814 1
COVER 14092 14092-0109 1
INSULATOR 16073 16073-0053 1
GEAR,CLUTCH ONEWAY 16085 16085-0609 1
BRUSH,CARBON 21039 21039-0004 1
SPRING-BRUSH 21040 21040-0003 4
STARTER-ELECTRIC 21163 21163-0748 1
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 1
FUSE,MINI BLADE,30A,GREEN 26006A 26006-1080 1
WIRE-LEAD 26011 26011-0949 1
SWITCH 27010 27010-0770 1
GEAR-SPUR,IDLER 59051 59051-0762 1
NUT,STARTER MOTOR 92015 92015-1476 1
RACE 92048 92048-0018 1
RING-O 92055 92055-0136 2
RING-O 92055A 92055-1276 1
RING-O,4.5X2.0 92055B 92055-1370 1
GROMMET 92071 92071-0024 1
BOLT,FLANGED-SMALL,6X25 92151 92151-1930 2
BOLT 92153 92153-1850 2
BOLT 92153A 92153-1866 1
BOLT,TORX,6X14 92154 92154-1225 6
SCREW 92172 92172-0334 1
WASHER 92200 92200-0386 1
NUT,6MM 92210 92210-0188 1
