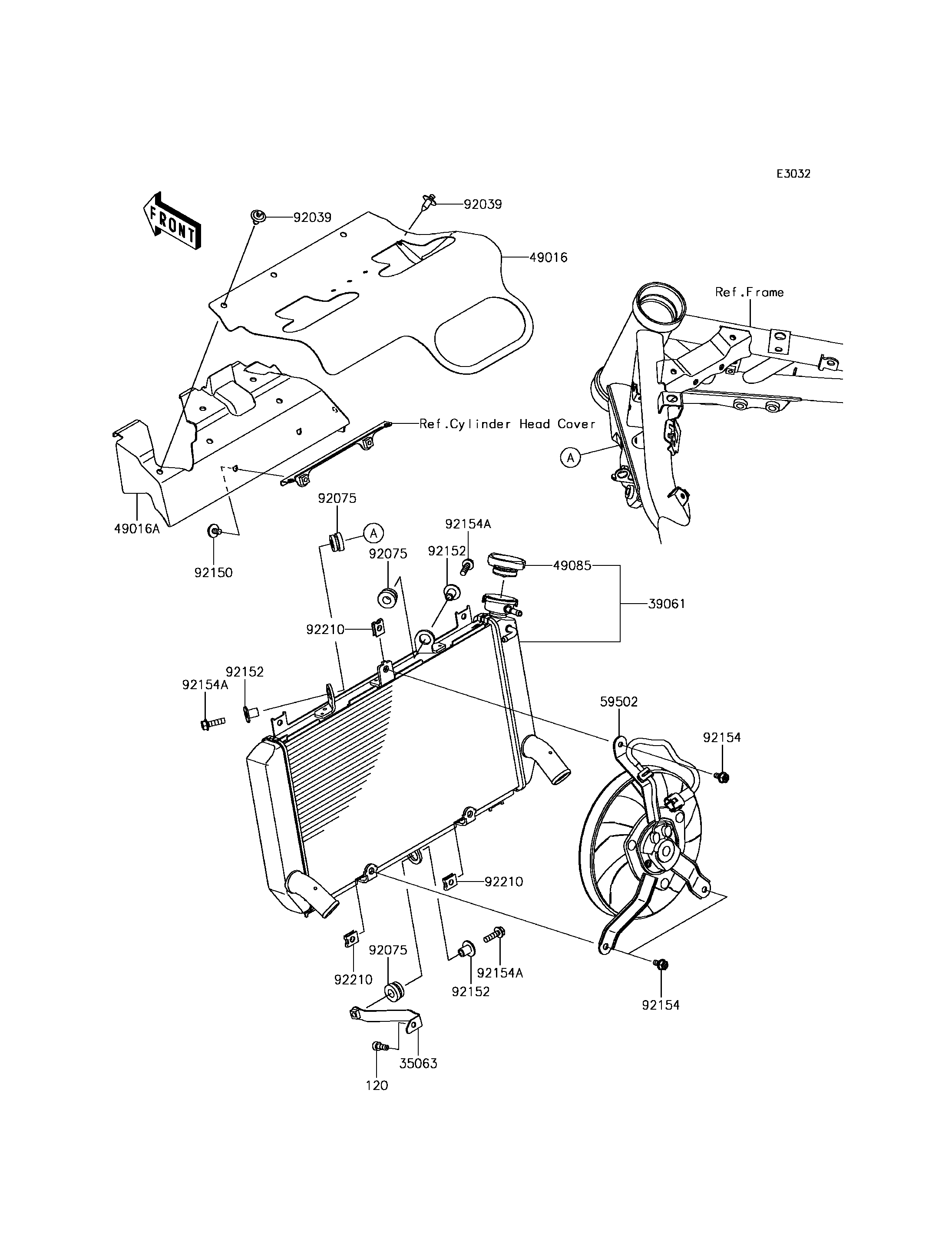

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
120
35063
39061
49016
49016A
49085
59502
92039
92039
92075
92075
92075
92150
92152
92152
92152
92154
92154
92154A
92154A
92154A
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X16 | 120 | 120CA0616 | 1 | ||
| STAY | 35063 | 35063-1364 | 1 | ||
| RADIATOR-ASSY | 39061 | 39061-0745 | 1 | ||
| COVER-SEAL,HEAT | 49016 | 49016-0638 | 1 | ||
| COVER-SEAL,HEAT | 49016A | 49016-0639 | 1 | ||
| CAP-ASSY-PRESSURE | 49085 | 49085-0006 | 1 | ||
| FAN-ASSY | 59502 | 59502-0614 | 1 | ||
| RIVET | 92039 | 92039-1289 | 2 | ||
| DAMPER,RUBBER | 92075 | 92075-1123 | 3 | ||
| BOLT,6X12 | 92150 | 92150-1891 | 2 | ||
| COLLAR | 92152 | 92152-0667 | 3 | ||
| BOLT | 92154 | 92154-1429 | 3 | ||
| BOLT,FLANGED,6X22 | 92154A | 92154-2673 | 3 | ||
| NUT | 92210 | 92210-1323 | 3 |
| BOLT-SOCKET,6X16 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY | |
| REF # | 35063 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RADIATOR-ASSY | |
| REF # | 39061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SEAL,HEAT | |
| REF # | 49016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SEAL,HEAT | |
| REF # | 49016A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-ASSY-PRESSURE | |
| REF # | 49085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FAN-ASSY | |
| REF # | 59502 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,RUBBER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X12 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X22 | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
