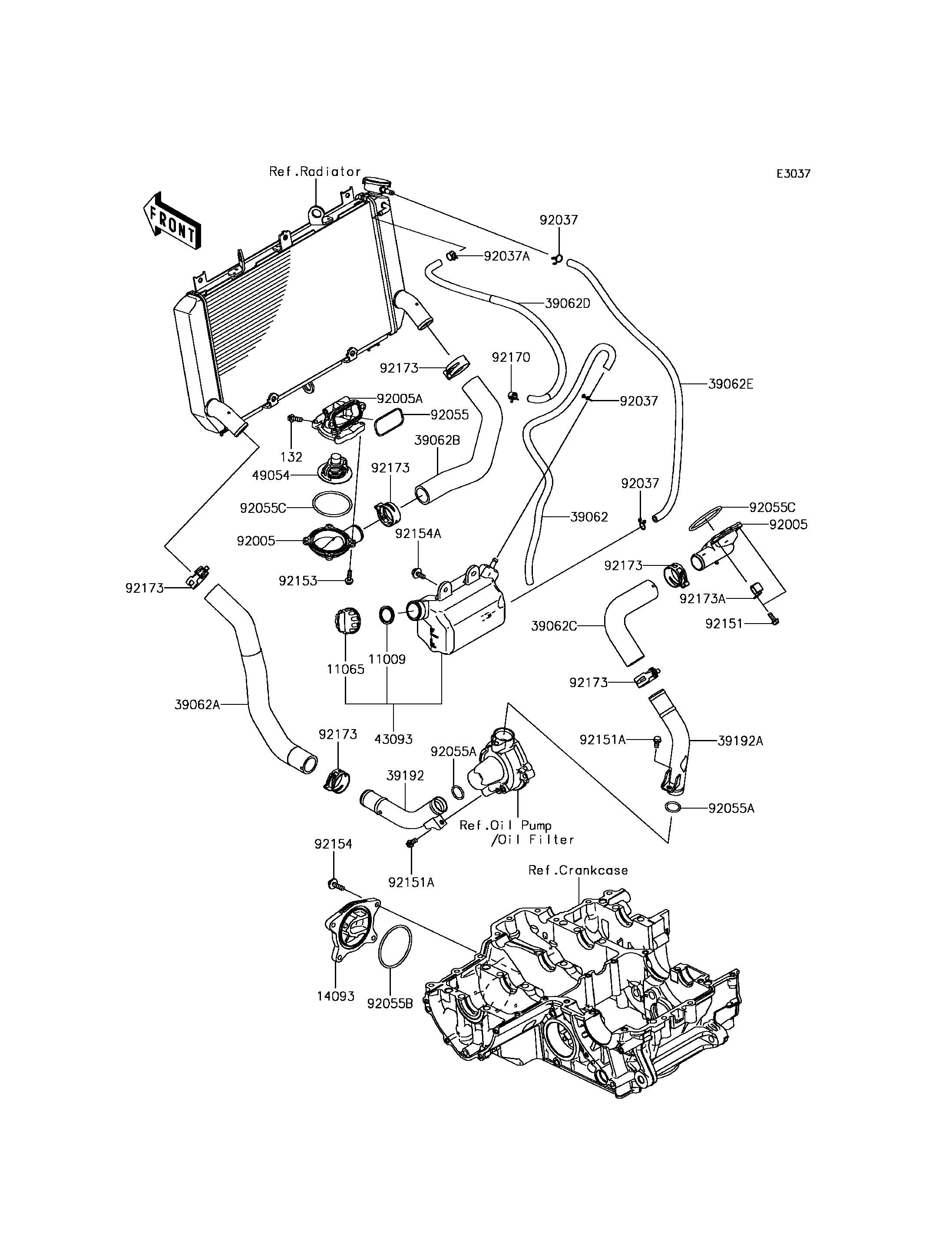

2017 Z900 ABS - Water Pipe

DOWNLOAD PDF
SELECT A NEW PART
132
11009
11065
14093
39062
39062A
39062B
39062C
39062D
39062E
39192
39192A
43093
49054
92005
92005
92005A
92037
92037
92037
92037A
92055
92055A
92055A
92055B
92055C
92055C
92151
92151A
92151A
92153
92154
92154A
92170
92173
92173
92173
92173
92173
92173
92173A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X20 132 132BC0620 2
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11065 11065-0980 1
COVER 14093 14093-0144 1
HOSE-COOLING,OVERFLOW 39062 39062-0618 1
HOSE-COOLING,RADIATOR-W/PIPE 39062A 39062-0758 1
HOSE-COOLING,CYLINDER-RADIATOR 39062B 39062-0759 1
HOSE-COOLING,W/PIPE-CYLINDER 39062C 39062-0760 1
HOSE-COOLING,AIR BLEED 39062D 39062-0765 1
HOSE-COOLING,5.5X10.5X550 39062E 39062-1208 1
PIPE-WATER,RADIATOR-WATER PUMP 39192 39192-0631 1
PIPE-WATER,WATER PUMP-CYLINDER 39192A 39192-0644 1
RESERVOIR-ASSY-TANK 43093 43093-0006 1
THERMOSTAT 49054 49054-0004 1
FITTING,THERMO CAP 92005 92005-0842 2
FITTING,THERMO CASE 92005A 92005-0846 1
CLAMP,TUBE 92037 92037-147 3
CLAMP,TUBE 92037A 92037-1505 1
RING-O,YP 27.6 57.6 1.9 92055 92055-0021 1
RING-O,20.8X2.4 92055A 92055-0114 2
RING-O,63.3MM 92055B 92055-0739 1
RING-O,53.5X2.6 92055C 92055-0831 2
BOLT,5X14 92151 92151-1764 4
BOLT,6X12 92151A 92151-1997 2
BOLT,FLANGED,5X18 92153 92153-1588 4
BOLT,FLANGED,6X22 92154 92154-0403 4
BOLT,UPSET-WP,6X16 92154A 92154-1850 2
CLAMP 92170 92170-1493 1
CLAMP,34MM 92173 92173-1360 6
CLAMP 92173A 92173-1663 1
