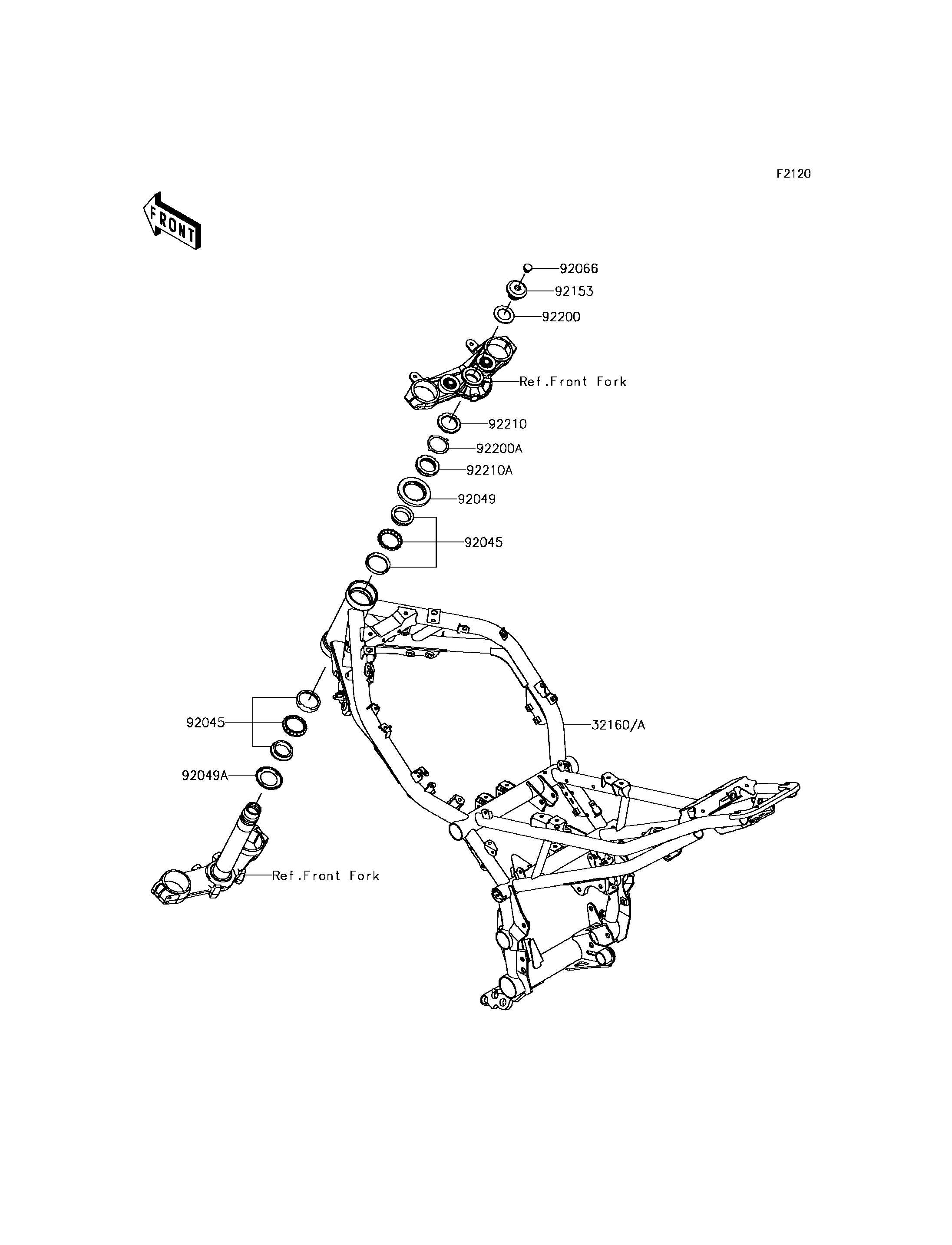

32160
32160A
92045
92045
92049
92049A
92066
92153
92200
92200A
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FRAME-COMP,F.S.BLACK 32160 32160-0957-18R 1
FRAME-COMP,M.GREEN 32160A 32160-0957-54S 1
BEARING-BALL,SF07A17PX1V1 92045 92045-1384 2
SEAL-OIL 92049 92049-0131 1
SEAL-OIL 92049A 92049-0137 1
PLUG 92066 92066-0071 1
BOLT,26MM 92153 92153-0474 1
WASHER,27X42X2.3 92200 92200-0753 1
WASHER,27X42X2.3 92200A 92200-0781 1
NUT,STEERING STEM,35MM 92210 92210-0534 1
NUT,STEERING STEM,35MM 92210A 92210-0535 1
