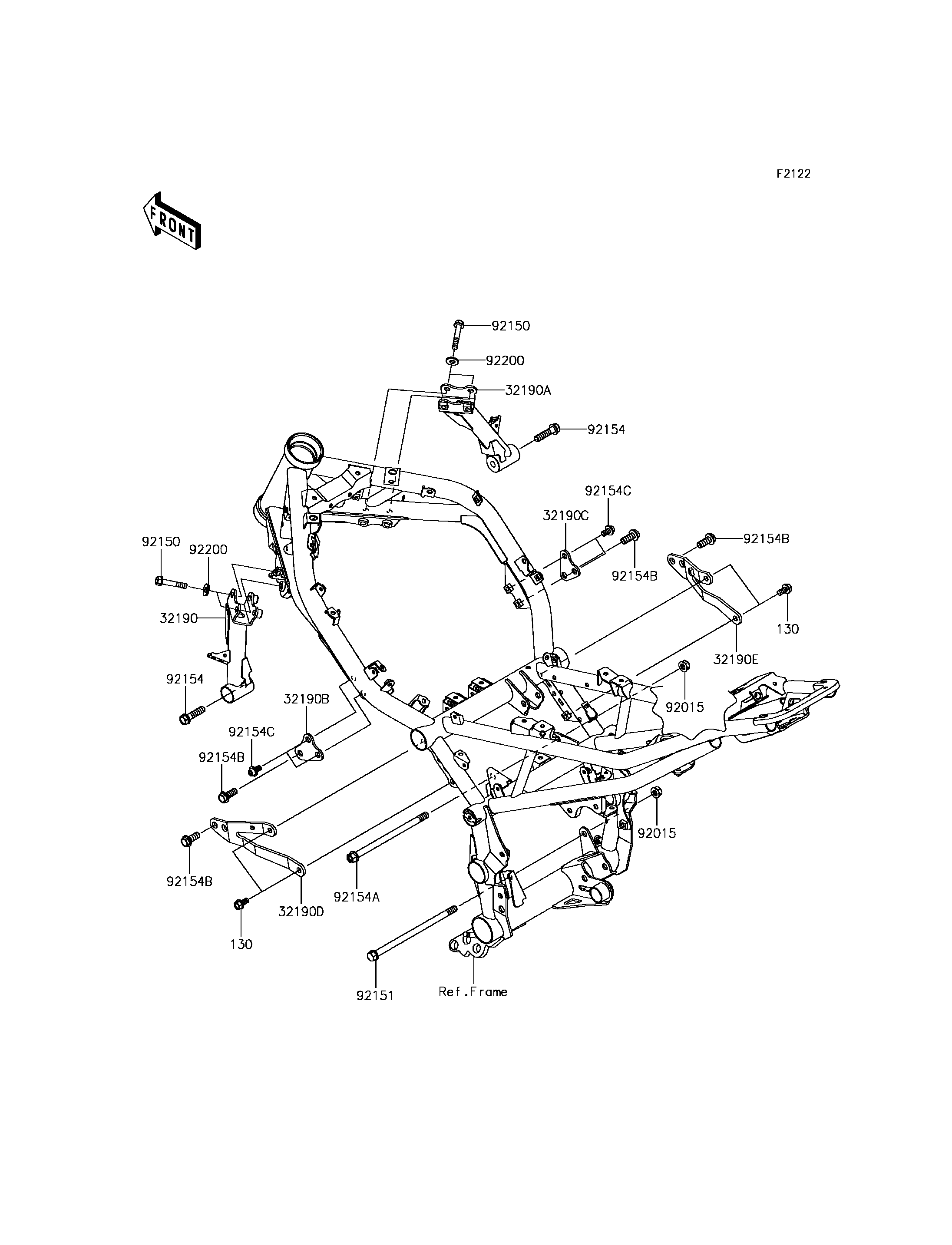

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
130
130
32190
32190A
32190B
32190C
32190D
32190E
92015
92015
92150
92150
92151
92154
92154
92154A
92154B
92154B
92154B
92154B
92154C
92154C
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,8X16 | 130 | 130CA0816 | 4 | ||
| BRACKET-ENGINE,LH,F.S.BLACK | 32190 | 32190-0721-18R | 1 | ||
| BRACKET-ENGINE,RH,F.S.BLACK | 32190A | 32190-0722-18R | 1 | ||
| BRACKET-ENGINE,LH,F.S.BLACK | 32190B | 32190-0723-18R | 1 | ||
| BRACKET-ENGINE,RH,F.S.BLACK | 32190C | 32190-0724-18R | 1 | ||
| BRACKET-ENGINE,CYL.,LH | 32190D | 32190-0725 | 1 | ||
| BRACKET-ENGINE,CYL.,RH | 32190E | 32190-0726 | 1 | ||
| NUT,FLANGED,10MM | 92015 | 92015-1180 | 2 | ||
| BOLT,FLANGED,8X45 | 92150 | 92150-1487 | 4 | ||
| BOLT,FLANGED,10X190 | 92151 | 92151-1915 | 1 | ||
| BOLT,FLANGED,10X40 | 92154 | 92154-0313 | 2 | ||
| BOLT,FLANGED,10X170 | 92154A | 92154-0840 | 1 | ||
| BOLT,FLANGED,10X25 | 92154B | 92154-2251 | 4 | ||
| BOLT,SOCKET,8X14 | 92154C | 92154-2252 | 4 | ||
| WASHER,8.5X18X2.3 | 92200 | 92200-1213 | 4 |
| BOLT-FLANGED,8X16 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BRACKET-ENGINE,LH,F.S.BLACK | |
| REF # | 32190 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-ENGINE,RH,F.S.BLACK | |
| REF # | 32190A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-ENGINE,LH,F.S.BLACK | |
| REF # | 32190B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-ENGINE,RH,F.S.BLACK | |
| REF # | 32190C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-ENGINE,CYL.,LH | |
| REF # | 32190D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-ENGINE,CYL.,RH | |
| REF # | 32190E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,10MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X45 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X190 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X40 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X170 | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X25 | |
| REF # | 92154B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X14 | |
| REF # | 92154C |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,8.5X18X2.3 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
