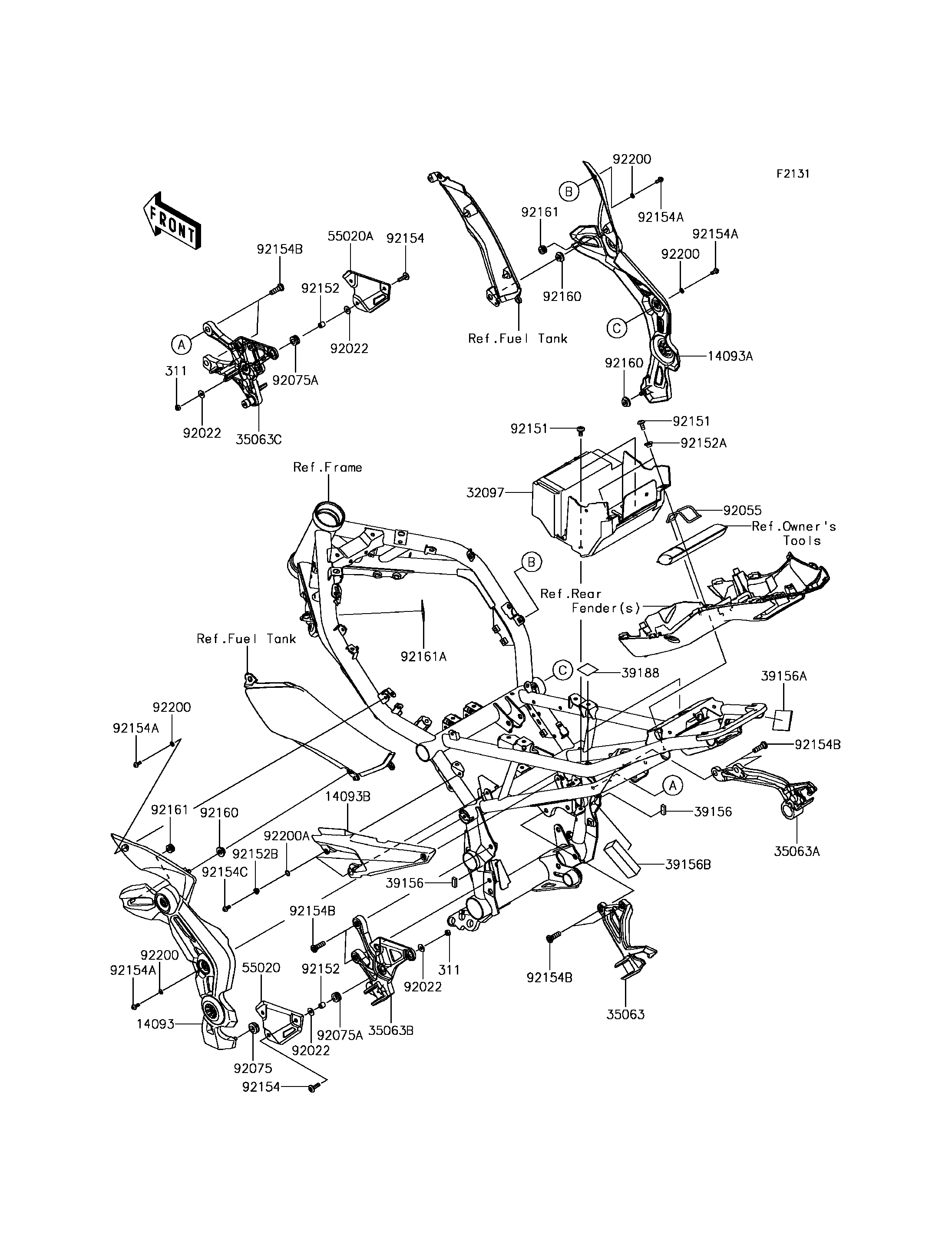

2017 Z900 ABS - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
311
311
14093
14093A
14093B
32097
35063
35063A
35063B
35063C
39156
39156
39156A
39156B
39188
55020
55020A
92022
92022
92022
92022
92055
92075
92075A
92075A
92151
92151
92152
92152
92152A
92152B
92154
92154
92154A
92154A
92154A
92154A
92154B
92154B
92154B
92154B
92154C
92160
92160
92160
92161
92161
92161A
92200
92200
92200
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX,6MM 311 311AA0600 6
COVER,PIVOT,LH,B.SILVER 14093 14093-0509-54N 1
COVER,PIVOT,RH,B.SILVER 14093A 14093-0510-54N 1
COVER,HARNESS,LH 14093B 14093-0511 1
CASE-BATTERY 32097 32097-0045 1
STAY,STEP,RR,LH,F.S.BLACK 35063 35063-1362-18R 1
STAY,STEP,RR,RH,F.S.BLACK 35063A 35063-1363-18R 1
STAY,STEP,FR,LH,F.S.BLACK 35063B 35063-1399-18R 1
STAY,STEP,FR,RH,F.S.BLACK 35063C 35063-1400-18R 1
PAD,8X20X5 39156 39156-2176 2
PAD,40X60X2 39156A 39156-2177 1
PAD,25X80X20 39156B 39156-2217 1
TAPE,30X30 39188 39188-0566 2
GUARD,HEEL,LH 55020 55020-1962 1
GUARD,HEEL,RH 55020A 55020-1963 1
WASHER,6.5X16X1.0 92022 92022-1093 12
RING-O,62.6X3.5 92055 92055-0873 1
DAMPER 92075 92075-1067 1
DAMPER 92075A 92075-1409 6
BOLT,SOCKET,6X14 92151 92151-1654 4
COLLAR,6.3X9.5X9.2 92152 92152-2280 6
COLLAR,6.5X10X6.4 92152A 92152-2287 2
COLLAR,5.7X8.5X4.5 92152B 92152-2354 3
BOLT,SOCKET,6X20 92154 92154-0918 6
BOLT,SOCKET,5X12 92154A 92154-1421 4
BOLT,SOCKET,8X28 92154B 92154-2334 8
BOLT,SOCKET,5X12,MEC 92154C 92154-2678 3
DAMPER 92160 92160-1613 3
DAMPER 92161 92161-0864 2
DAMPER,25X40,T1.0 92161A 92161-1432 1
WASHER,5.2X10X0.5 92200 92200-1730 4
WASHER,8.8X11.5X0.5 92200A 92200-1888 3
