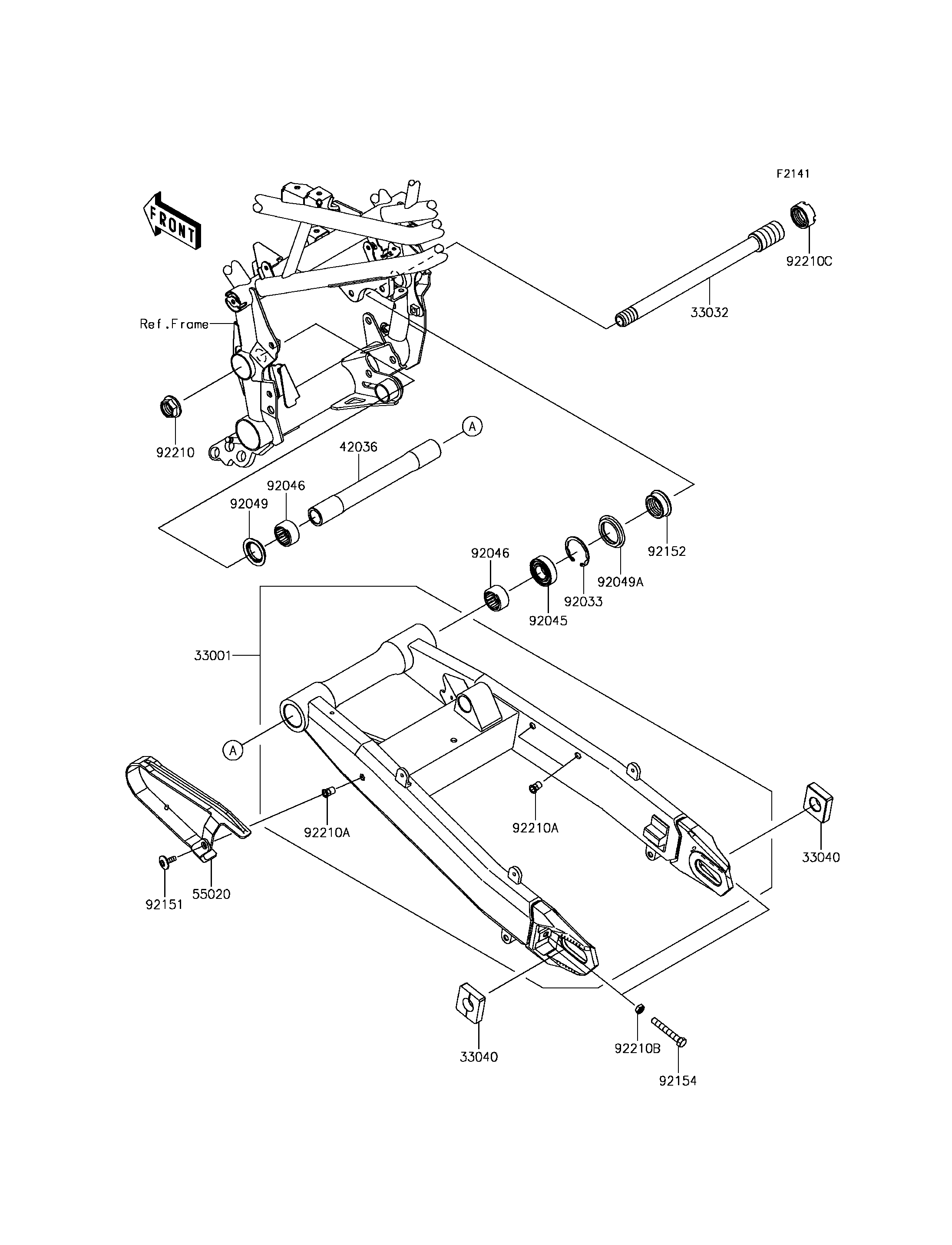

2017 Z900 ABS - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
33001
33032
33040
33040
42036
55020
92033
92045
92046
92046
92049
92049A
92151
92152
92154
92210
92210A
92210A
92210B
92210C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-COMP-SWING,F.S.BLACK 33001 33001-0666-18R 1
SHAFT-SWING ARM,20X269 33032 33032-0055 1
ADJUSTER-CHAIN 33040 33040-1109 2
SLEEVE,20.1X28X236.5 42036 42036-0803 1
GUARD,CHAIN 55020 55020-1961 1
RING-SNAP,42MM 92033 92033-1041 1
BEARING-BALL,6004UL11 92045 92045-0017 1
BEARING-NEEDLE,7E-HVS 28X34X17 92046 92046-0008 2
SEAL-OIL 92049 92049-0132 1
SEAL-OIL,MHA 35 42 5.7F 92049A 92049-1380 1
BOLT,SOCKET,6X18 92151 92151-1149 1
COLLAR,28X35X15 92152 92152-2379 1
BOLT-SMALL,8X55 92154 92154-1962 2
NUT,FLANGED,20MM 92210 92210-0320 1
NUT,POP,6MM,L=15 92210A 92210-1397 3
NUT-HEX-SMALL,8MM 92210B 92210-1459 2
NUT,28MM 92210C 92210-1575 1
