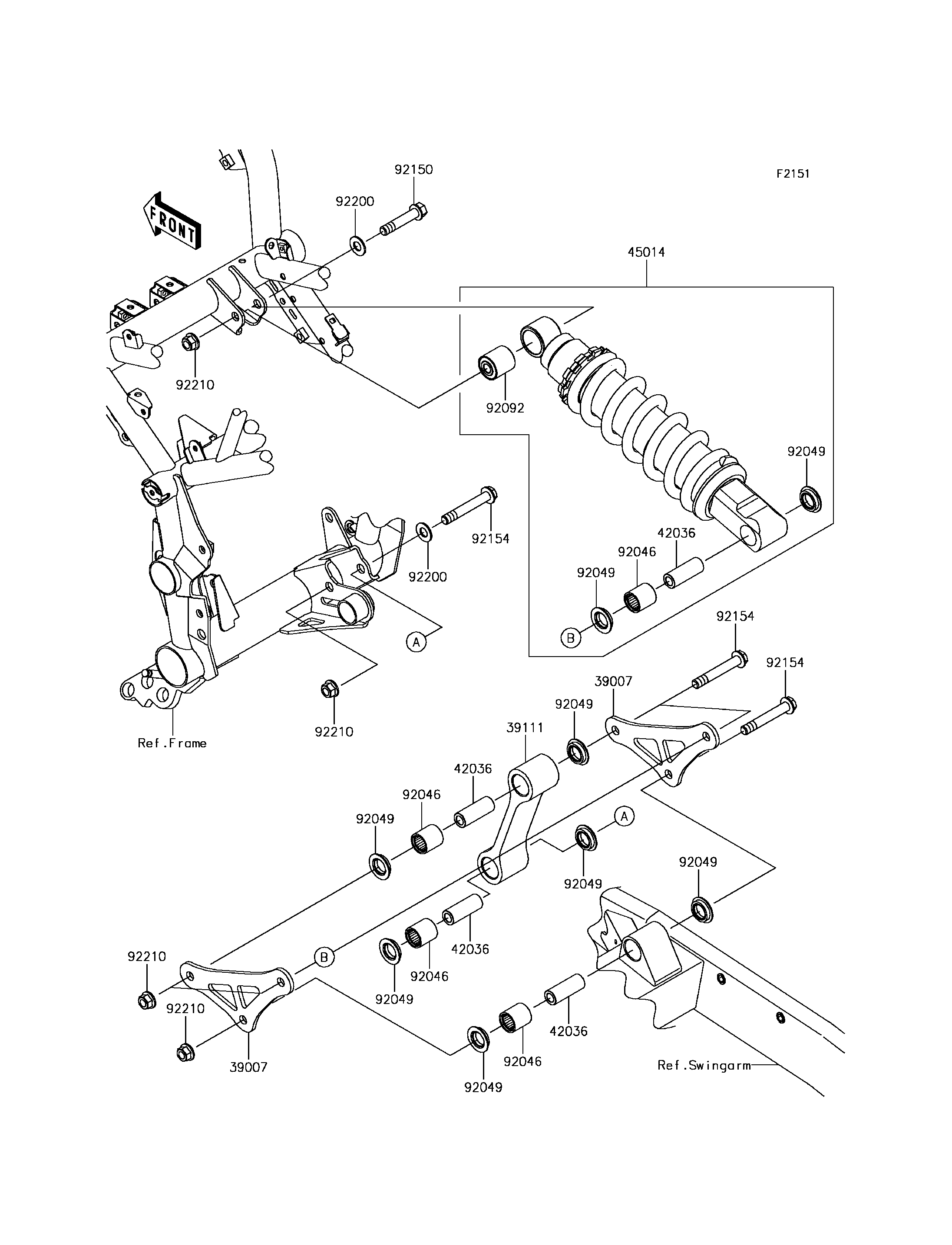

2017 Z900 ABS - Suspension/Shock Absorber
39007
39007
39111
42036
42036
42036
42036
45014
92046
92046
92046
92046
92049
92049
92049
92049
92049
92049
92049
92049
92092
92150
92154
92154
92154
92200
92200
92210
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| ARM-SUSP | 39007 | 39007-0403 | 2 | ||
| ROD-TIE | 39111 | 39111-0311 | 1 | ||
| SLEEVE,10.1X17X44.5 | 42036 | 42036-1342 | 4 | ||
| SHOCKABSORBER,BLACK | 45014 | 45014-0569-10 | 1 | ||
| BEARING-NEEDLE,SFYZM172425 | 92046 | 92046-1273 | 4 | ||
| SEAL-OIL,MHA17245.7F | 92049 | 92049-1223 | 8 | ||
| BUSHING-RUBBER | 92092 | 92092-1058 | 1 | ||
| BOLT,FLANGED,10X50 | 92150 | 92150-1125 | 1 | ||
| BOLT,FLANGED,10X66 | 92154 | 92154-2204 | 4 | ||
| WASHER,11X22X1.6 | 92200 | 92200-1836 | 2 | ||
| NUT,LOCK,FLANGED,10MM | 92210 | 92210-1139 | 5 |
