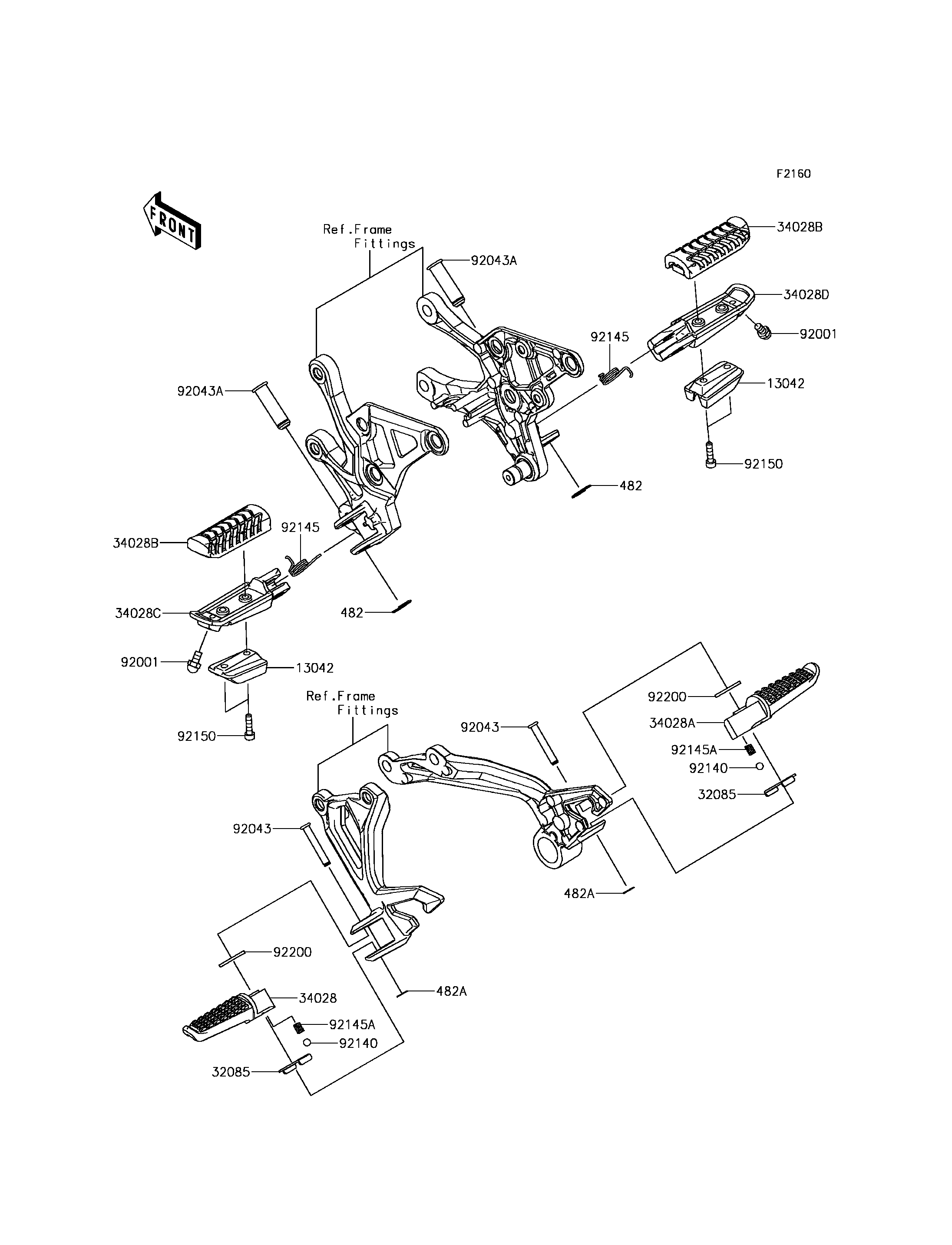

2017 Z900 ABS - Footrests

DOWNLOAD PDF
SELECT A NEW PART
482
482
482A
482A
13042
13042
32085
32085
34028
34028A
34028B
34028B
34028C
34028D
92001
92001
92043
92043
92043A
92043A
92140
92140
92145
92145
92145A
92145A
92150
92150
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-E,10MM 482 482EA0100 2
CIRCLIP-TYPE-E 482A 482EA5000 2
WEIGHT,STEP 13042 13042-0746 2
STOPPER,REAR STEP 32085 32085-0047 2
STEP,RR,LH 34028 34028-0004 1
STEP,RR,RH 34028A 34028-0005 1
STEP,RUBBER 34028B 34028-0349 2
STEP,FR,LH 34028C 34028-0350 1
STEP,FR,RH 34028D 34028-0351 1
BOLT,BANK SENSOR 92001 92001-1905 2
PIN,6X40 92043 92043-0200 2
PIN,12X42.5 92043A 92043-1594 2
BALL,6.35MM 92140 92140-0008 2
SPRING,STEP RETURN 92145 92145-0723 2
SPRING 92145A 92145-1319 2
BOLT,SOCKET,5X20 92150 92150-1019 4
WASHER,16X26X2.3 92200 92200-0043 2
