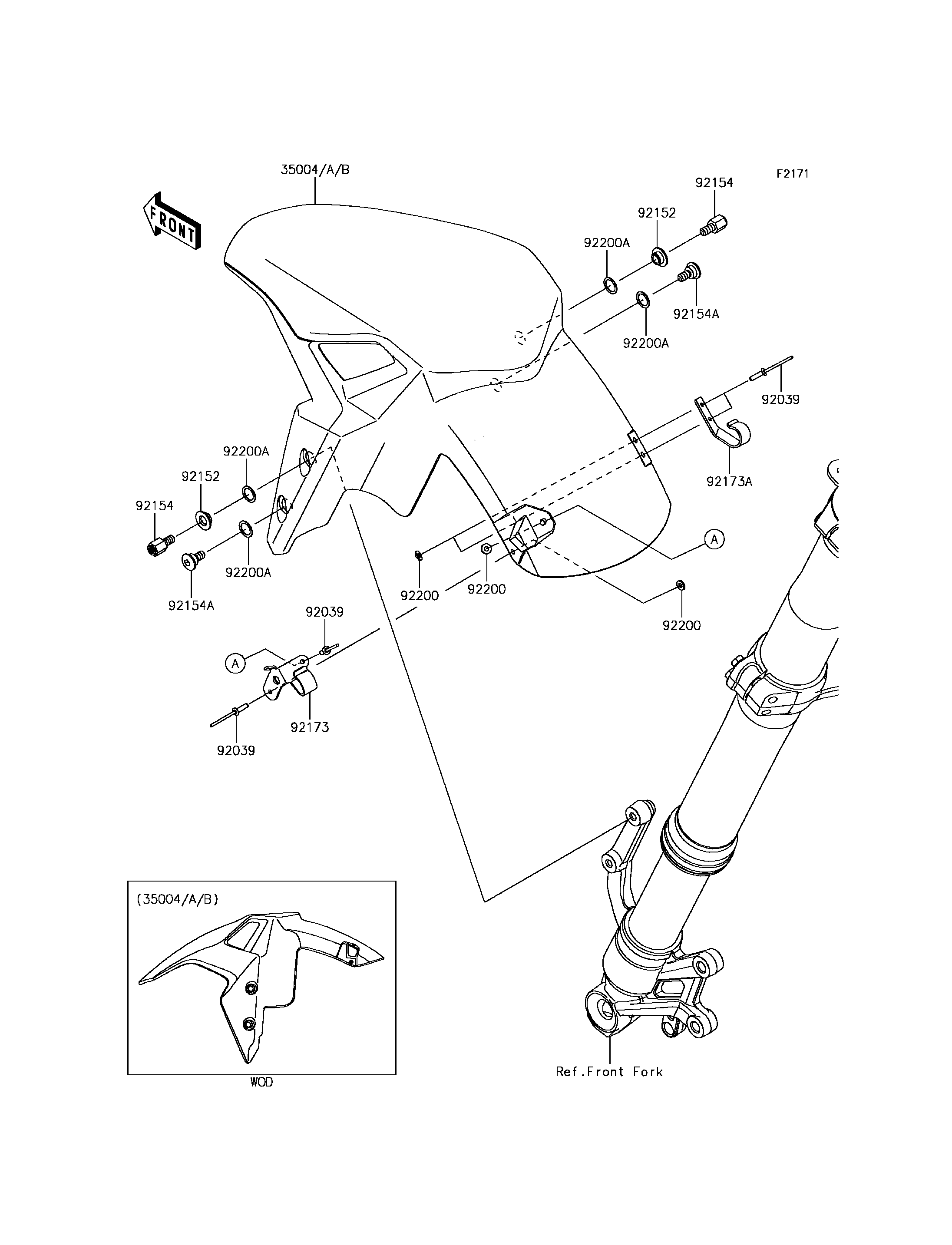

2017 Z900 ABS - Front Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
35004
35004B
92039
92039
92039
92152
92152
92154
92154
92154A
92154A
92173
92173A
92200
92200
92200
92200A
92200A
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FRONT,P.M.GRAY 35004 35004-0359-36P 1
FENDER-FRONT,M.F.S.BLACK 35004B 35004-0359-739 1
RIVET 92039 92039-1231 4
COLLAR,6.5X10X5.3 92152 92152-1863 2
BOLT,6MM 92154 92154-0746 2
BOLT,SOCKET,6X15 92154A 92154-2660 2
CLAMP,LH 92173 92173-1600 1
CLAMP,RH 92173A 92173-1601 1
WASHER,3.5X8X1 92200 92200-1251 4
WASHER,10.4X14X0.5 92200A 92200-1880 4
FENDER-FRONT,C.L.GREEN 35004A 35004-0359-51P 1 CN
