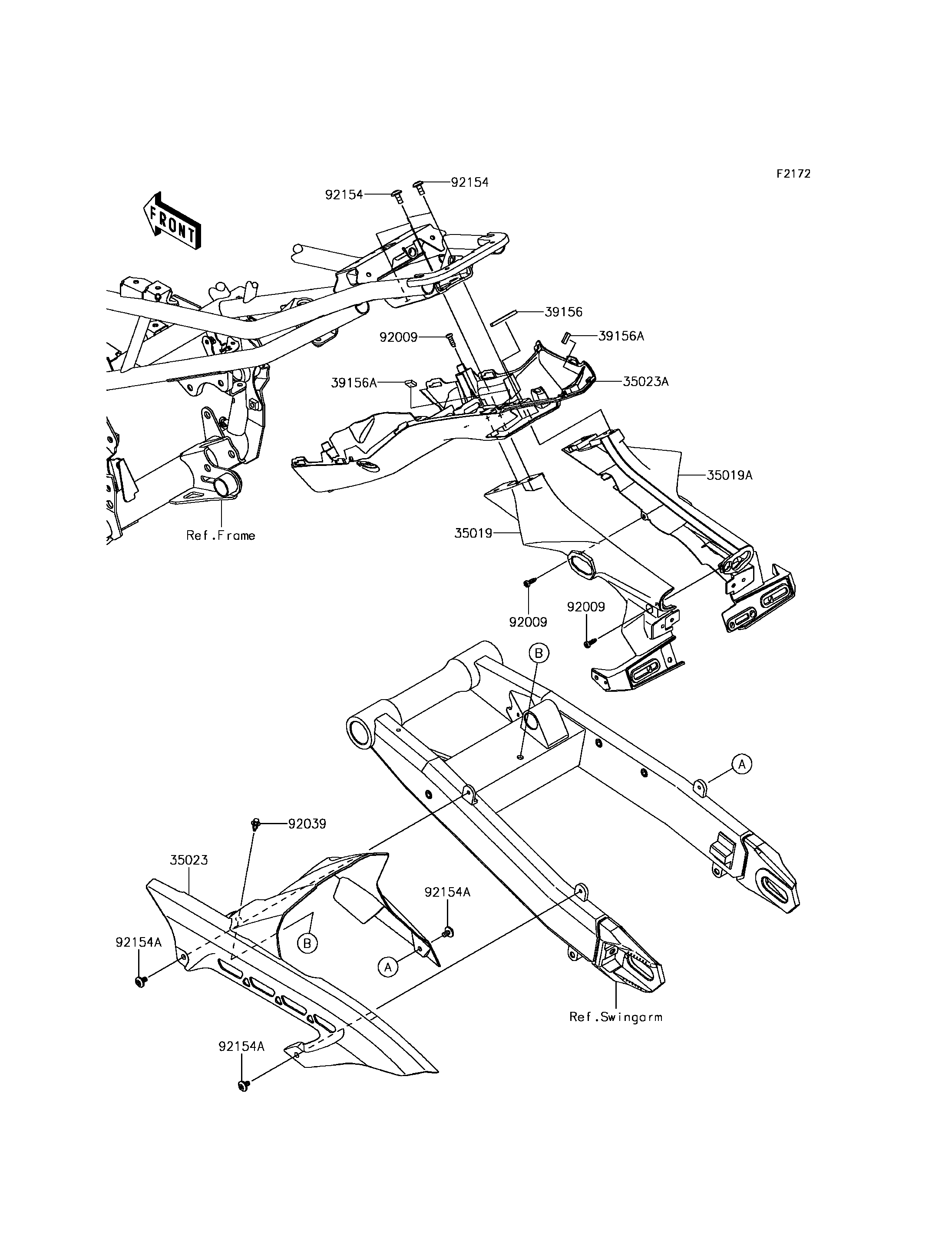

Parts Diagrams |
35019
35019A
35023
35023A
39156
39156A
39156A
92009
92009
92009
92039
92154
92154
92154A
92154A
92154A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FLAP,RR,LH | 35019 | 35019-0624 | 1 | ||
| FLAP,RR,RH | 35019A | 35019-0625 | 1 | ||
| FENDER-REAR,INNER | 35023 | 35023-0421 | 1 | ||
| FENDER-REAR | 35023A | 35023-0435 | 1 | ||
| PAD,4X44X5 | 39156 | 39156-2179 | 1 | ||
| PAD,10X15X4 | 39156A | 39156-2180 | 2 | ||
| SCREW,TAPPING,5X16 | 92009 | 92009-1984 | 3 | ||
| RIVET | 92039 | 92039-0086 | 1 | ||
| BOLT,SOCKET,6X14 | 92154 | 92154-0745 | 4 | ||
| BOLT,SOCKET,6X10 | 92154A | 92154-2667 | 3 |
| FLAP,RR,LH | |
| REF # | 35019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLAP,RR,RH | |
| REF # | 35019A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-REAR,INNER | |
| REF # | 35023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-REAR | |
| REF # | 35023A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,4X44X5 | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,10X15X4 | |
| REF # | 39156A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,5X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X14 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X10 | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
