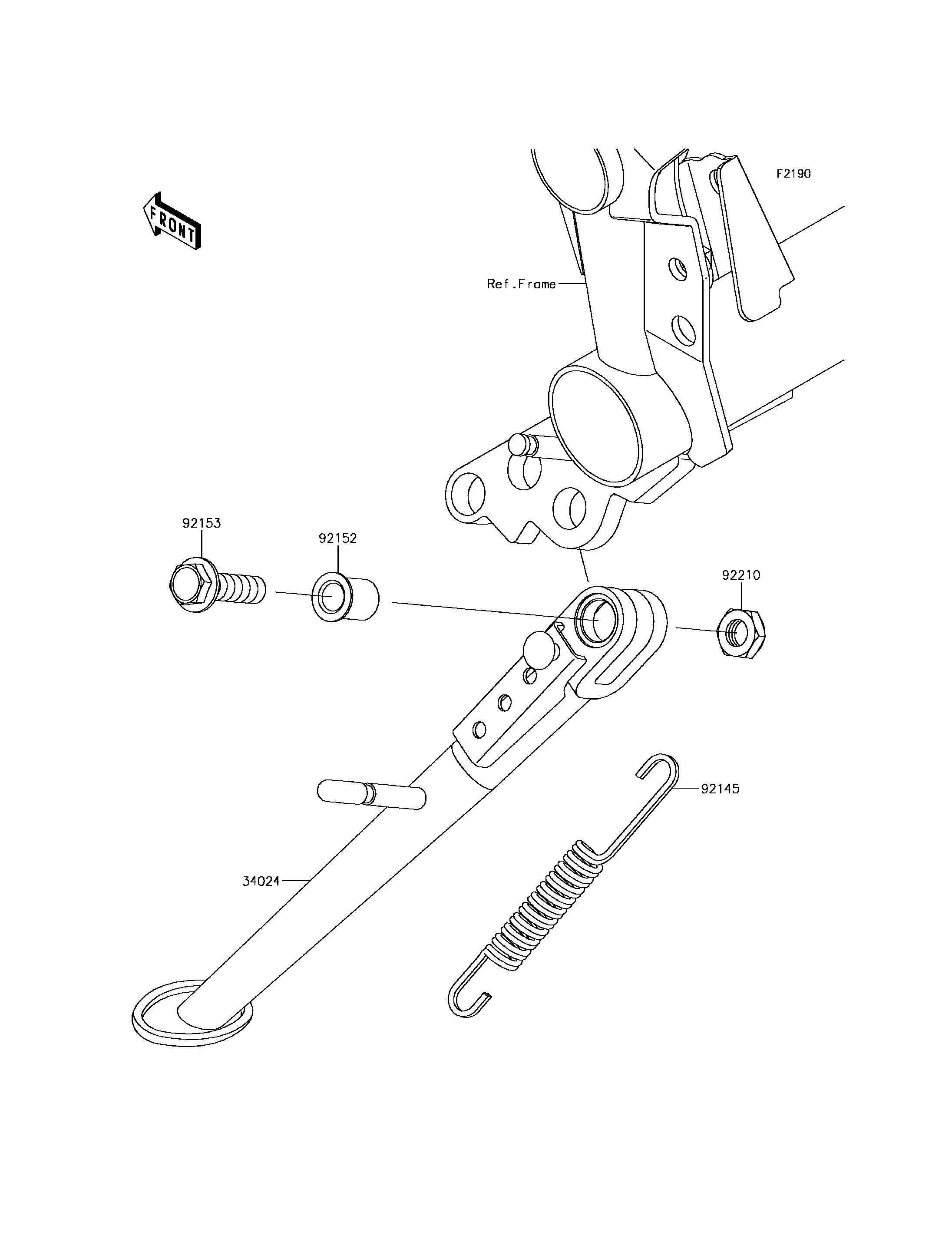

34024
92145
92152
92153
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STAND-SIDE,F.S.BLACK 34024 34024-0141-18R 1
SPRING,SIDE STAND 92145 92145-0562 1
COLLAR,10.2X15X18.6 92152 92152-2248 1
BOLT,FLANGED,10X35 92153 92153-0802 1
NUT,LOCK,10MM 92210 92210-0784 1
