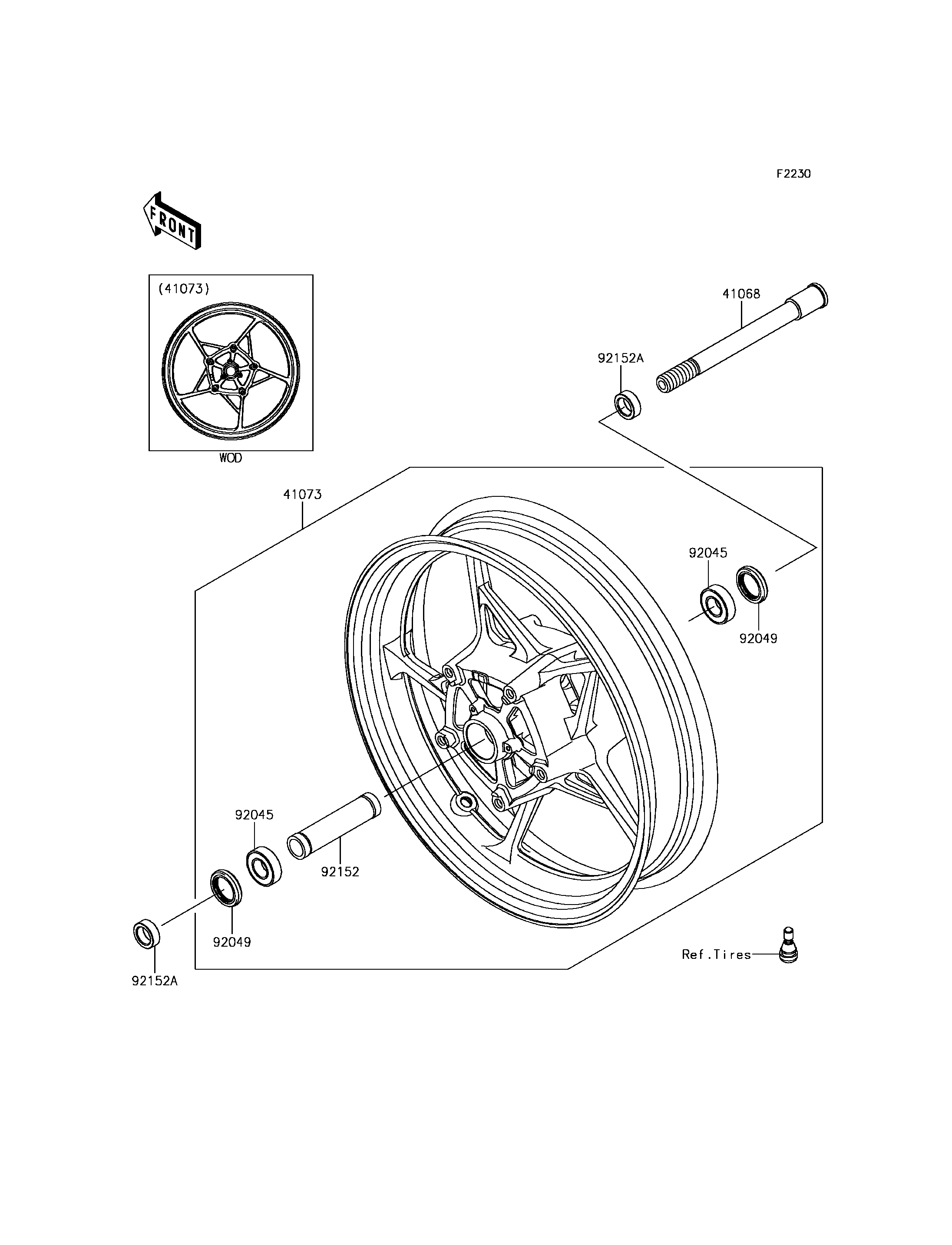

41068
41073
92045
92045
92049
92049
92152
92152A
92152A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
AXLE,FR,20X199 41068 41068-0618 1
WHEEL-ASSY,FR,G.BLACK 41073 41073-0713-QT 1
BEARING-BALL,20X42X12 92045 92045-0820 2
SEAL-OIL,BJN30427 92049 92049-0130 2
COLLAR,20.2X27.2X115 92152 92152-2227 1
COLLAR,20X30X10.5 92152A 92152-2249 2
