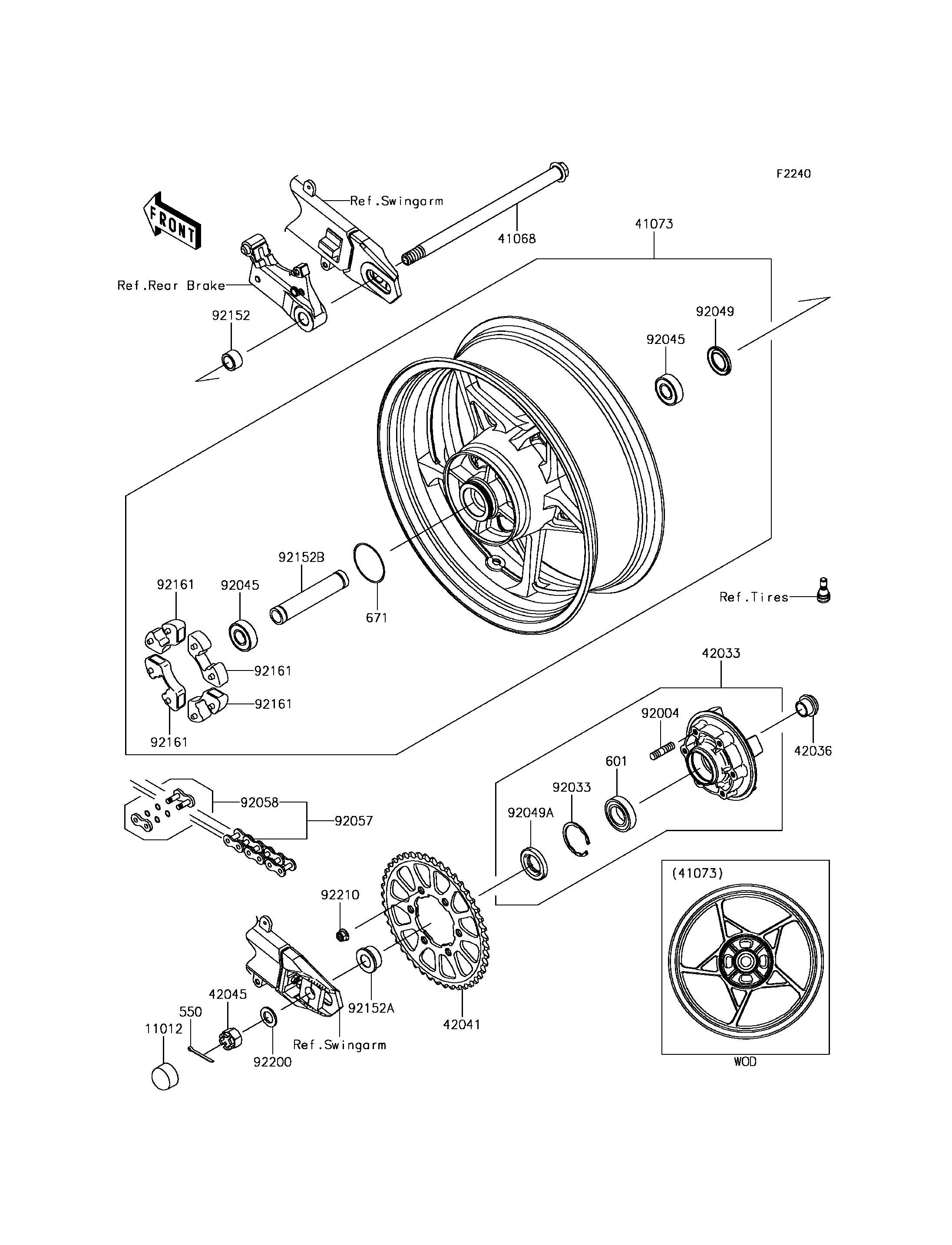

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PIN-COTTER,4.0X40 | 550 | 550AA4040 | 1 | ||
BEARING-BALL | 601 | 601B6205UU | 1 | ||
O RING,60MM | 671 | 671B2560 | 1 | ||
CAP,AXLE NUT | 11012 | 11012-1590 | 1 | ||
AXLE,RR,18X327.2 | 41068 | 41068-0619 | 1 | ||
WHEEL-ASSY,RR,G.BLACK | 41073 | 41073-0706-QT | 1 | ||
COUPLING-ASSY,RR HUB | 42033 | 42033-0570 | 1 | ||
SLEEVE,RR HUB,L=23 | 42036 | 42036-1251 | 1 | ||
SPROCKET-HUB,44T | 42041 | 42041-0158 | 1 | ||
NUT,CASTLE,18MM | 42045 | 42045-018 | 1 | ||
STUD,10X19 | 92004 | 92004-0048 | 6 | ||
RING-SNAP,52MM | 92033 | 92033-1043 | 1 | ||
BEARING-BALL,20X47X14 | 92045 | 92045-0821 | 2 | ||
SEAL-OIL,28 47 5 | 92049 | 92049-0140 | 1 | ||
SEAL-OIL | 92049A | 92049-1287 | 1 | ||
CHAIN,DRIVE,EK525RMX3/3D,114L | 92057 | 92057-0672 | 1 | ||
JOINT-CHAIN | 92058 | 92058-0041 | 1 | ||
COLLAR,20X28X16.4 | 92152 | 92152-1583 | 1 | ||
COLLAR,20X35X18 | 92152A | 92152-1585 | 1 | ||
COLLAR,20.2X27.2X141.9 | 92152B | 92152-2250 | 1 | ||
DAMPER,SHOCK,RR HUB | 92161 | 92161-0342 | 4 | ||
WASHER,19X32X2.6 | 92200 | 92200-1489 | 1 | ||
NUT,LOCK,FLANGED,10MM | 92210 | 92210-0276 | 6 |
