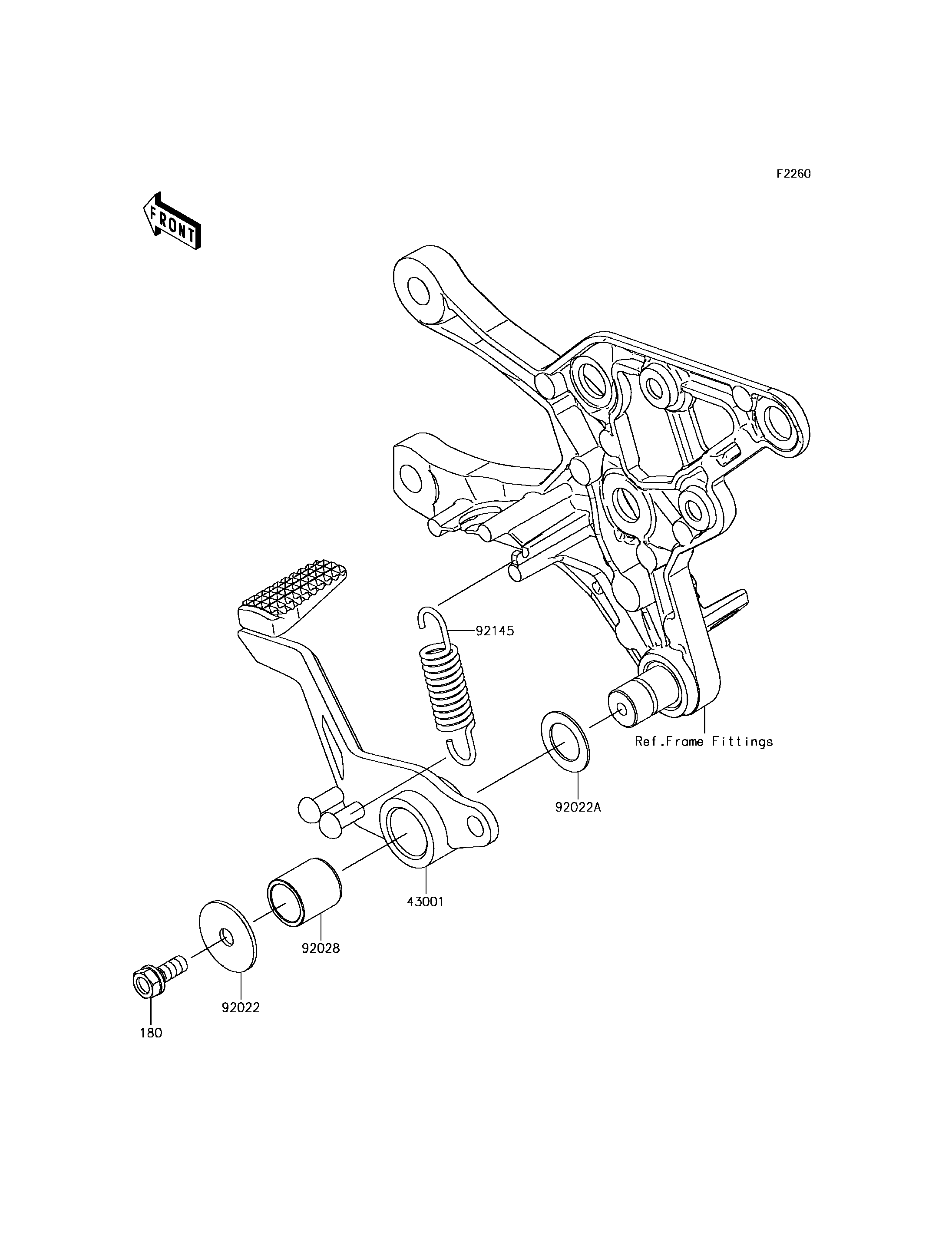

180
43001
92022
92022A
92028
92145
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WS,6X16 180 180AA0616 1
LEVER-BRAKE 43001 43001-0749 1
WASHER,7X28X1.6 92022 92022-1282 1
WASHER,15.3X24X1 92022A 92022-326 1
BUSHING,BRAKE PEDAL 92028 92028-1282 1
SPRING,BRAKE PEDAL 92145 92145-0893 1
